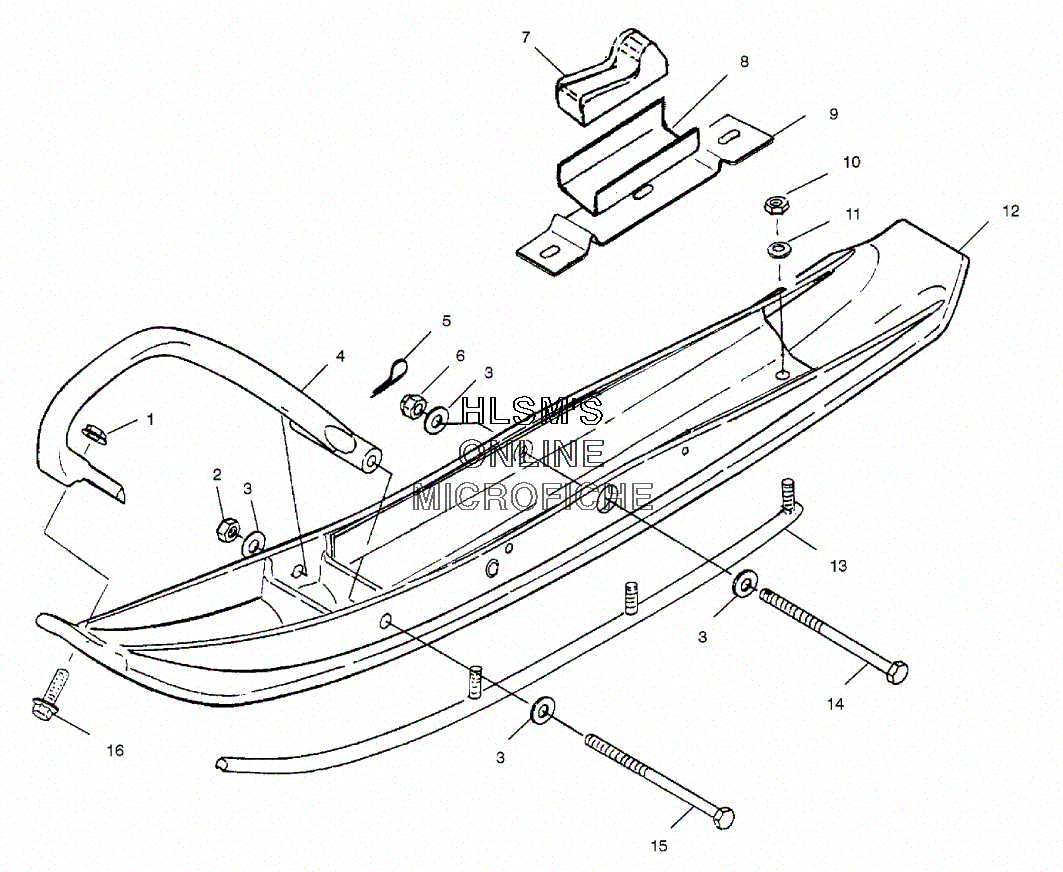

SKI ASSEMBLY для Polaris 600 RMK 136'' (S01SR6DS) - 2001 года выпуска
-
№АртикулНазвание
-
17542321 NUT, LOCKNUT, LOCK
-
27542411 NUT, LOCKNUT, LOCK
-
37555832 WASHERWASHER
-
45434165-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
57661209 PIN, COTTERPIN, COTTER
-
67542438 NUT, CASTLENUT, CASTLE
-
75411094 STOP, SKI RUBBERSTOP, SKI RUBBER
-
85243824 RETAINER, SKI RUBBERRETAINER, SKI RUBBER
-
95241912-067 SUPPORT, SKI RUBBER (BLACK)SUPPORT, SKI RUBBER (BLACK)
-
107542324 NUTNUT
-
117555843 WASHER, WROUGHTWASHER, WROUGHT
-
121820667-070 COMP SKI, SHORT SADDLE (BLACK/LEFT)COMP SKI, SHORT SADDLE (BLACK/LEFT)
-
121820668-070 COMP SKI, SHORT SADDLE (BLACK/RIGHT)COMP SKI, SHORT SADDLE (BLACK/RIGHT)
-
132872566 SKAG, 3'' 90Ш COMPSKAG, 3'' 90Ш COMP
-
147512596 SCREWSCREW
-
157515514 BOLTBOLT
-
167515307 BOLTBOLT
