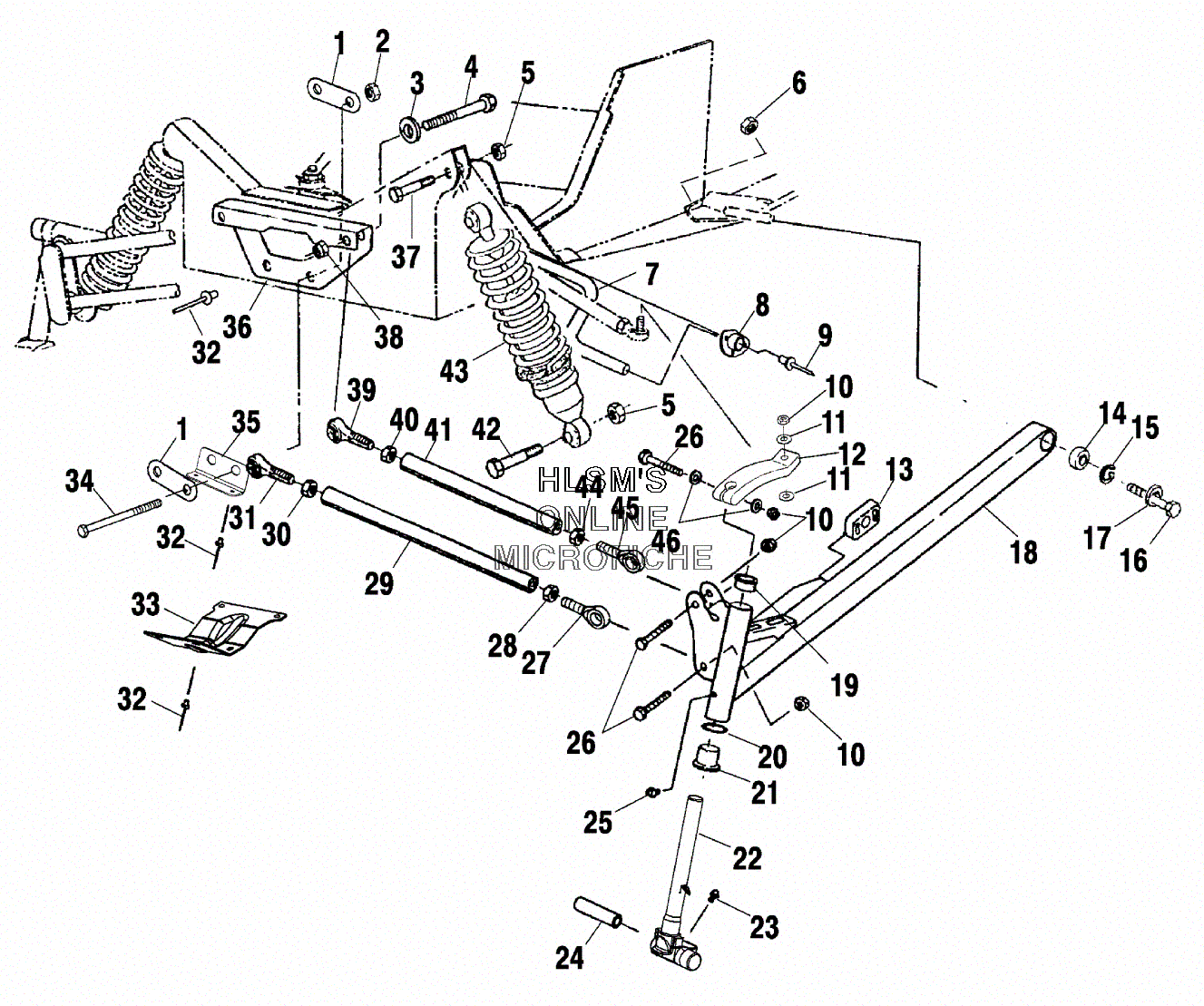

SUSPENSION - FRONT для Polaris 600 RMK 136'' (S01SR6DS) - 2001 года выпуска
-
№АртикулНазвание
-
15211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
27542703 NUT, FLEXNUT, FLEX
-
37558702 WASHER THRUSTWASHER THRUST
-
47512551 BOLTBOLT
-
57542439 NUT, NYLOKNUT, NYLOK
-
67547140 NUT, NYLONNUT, NYLON
-
75243559-067 BAR, TORSION (9/16) (BLACK)BAR, TORSION (9/16) (BLACK)
-
85432412 BUSHING, SWAY BARBUSHING, SWAY BAR
-
97621477 RIVETRIVET
-
107542403 NUT, LOCKNUT, LOCK
-
117555797 WASHERWASHER
-
125132083 STEERING ASSY.STEERING ASSY.
-
135432674 SLIDE, SWAYBAR (9/16)SLIDE, SWAYBAR (9/16)
-
147061042 BEARING, SPHERICAL (7/16)BEARING, SPHERICAL (7/16)
-
157710437 RING, RETAININGRING, RETAINING
-
167512579 BOLTBOLT
-
177555801 WASHERWASHER
-
181820687-067 TRAILING ARM ASSY. (INCL. 14, 15) (BLACK/LEFT)TRAILING ARM ASSY. (INCL. 14, 15) (BLACK/LEFT)
-
181820688-067 TRAILING ARM ASSY. (INCL. 14, 15) (BLACK/RIGHT)TRAILING ARM ASSY. (INCL. 14, 15) (BLACK/RIGHT)
-
193573909 BUSHING, FLANGEBUSHING, FLANGE
-
207556509 WASHER SPECIALWASHER SPECIAL
-
213574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
226230155-067 SHAFT, SPINDLE W/STEER STOP (BLACK)SHAFT, SPINDLE W/STEER STOP (BLACK)
-
237080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
245010158 BUSHING, PIVOTBUSHING, PIVOT
-
257080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
267517583 SCREWSCREW
-
277061051 ROD END, RADIUS (LEFT/LOWER)ROD END, RADIUS (LEFT/LOWER)
-
287542711 NUT, JAMNUT, JAM
-
295132498 ROD, RADIUS (LOWER)ROD, RADIUS (LOWER)
-
307547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
317061052 ROD END, RADIUS (RIGHT/LOWER)ROD END, RADIUS (RIGHT/LOWER)
-
327661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
335242575-067 BRACE, PAN (LOWER/BLACK)BRACE, PAN (LOWER/BLACK)
-
347512684 BOLTBOLT
-
355242578 BRACKET, RADIUS ROD (BOTTOM)BRACKET, RADIUS ROD (BOTTOM)
-
361012575-067 BRACE, BULKHEAD (FRONT/BLACK)BRACE, BULKHEAD (FRONT/BLACK)
-
377515415 BOLTBOLT
-
387542503 NUT, LOCKNUT, LOCK
-
397061049 ROD, END RADIUS (7/16'') (RIGHT)ROD, END RADIUS (7/16'') (RIGHT)
-
407547117 NUTNUT
-
415333769 ROD, RADIUS (UPPER)ROD, RADIUS (UPPER)
-
427515433 BOLTBOLT
-
437041886 SHOCK, GAS SELECT IFSSHOCK, GAS SELECT IFS
-
435630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
437041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
435431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
431500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
447542520 NUT, JAMNUT, JAM
-
457061048 ROD END, RADIUS (7/16'') (LEFT)ROD END, RADIUS (7/16'') (LEFT)
-
467555832 WASHERWASHER
