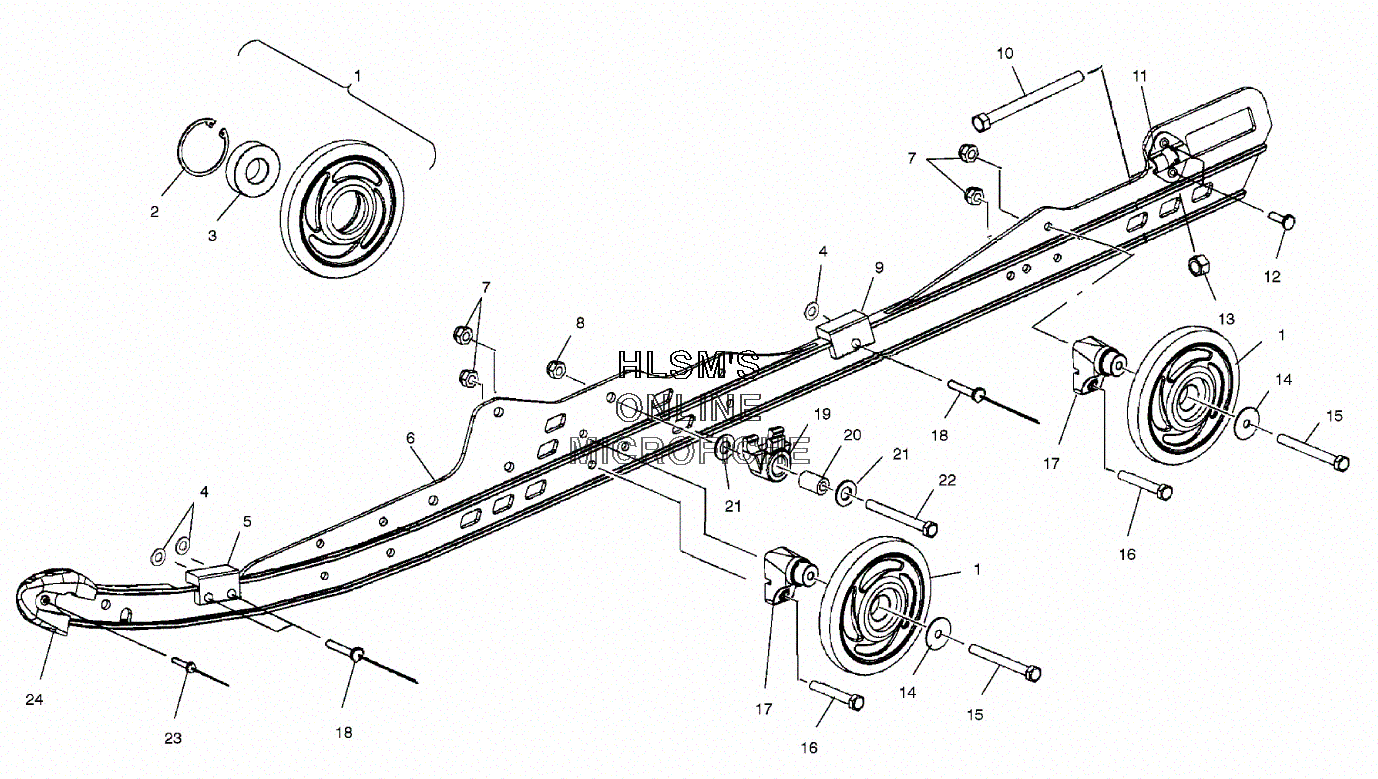

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 600 RMK 136'' (S01SR6DS) - 2001 года выпуска
-
№АртикулНазвание
-
11590275-293 WHEEL ASSY. (INDY RED) (INCL. 2, 3)WHEEL ASSY. (INDY RED) (INCL. 2, 3)
-
27718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47670068 NUT, PUSH-ONNUT, PUSH-ON
-
55811282 BUMPER, JOUNCEBUMPER, JOUNCE
-
61541558 RAIL ASSY., SUSPENSION XL 136X (LEFT) (INCL. 4, 6, 9, 11, 12, 18, 23, 24)RAIL ASSY., SUSPENSION XL 136X (LEFT) (INCL. 4, 6, 9, 11, 12, 18, 23, 24)
-
61541559 RAIL ASSY., SUSPENSION XL 136X (RIGHT) (INCL. 4, 6, 9, 11, 12, 18, 23, 24)RAIL ASSY., SUSPENSION XL 136X (RIGHT) (INCL. 4, 6, 9, 11, 12, 18, 23, 24)
-
77542324 NUTNUT
-
87542439 NUT, NYLOKNUT, NYLOK
-
95521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
95432946 LINER, BUMPERLINER, BUMPER
-
107517227 SCREWSCREW
-
115130530 BLOCK, IDLER BOLT ADJUSTBLOCK, IDLER BOLT ADJUST
-
127621501 RIVETRIVET
-
137542404 NUTNUT
-
147555959 WASHERWASHER
-
157515346 BOLTBOLT
-
167515317 BOLTBOLT
-
175631065 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
187661621 PIN, HOOD HINGEPIN, HOOD HINGE
-
195431924 BLOCK, SPRING SLIDERBLOCK, SPRING SLIDER
-
205010332 BUSHINGBUSHING
-
217555893 WASHERWASHER
-
227515433 BOLTBOLT
-
237621435 RIVETRIVET
-
245433735 CAP, RAIL TIPCAP, RAIL TIP
