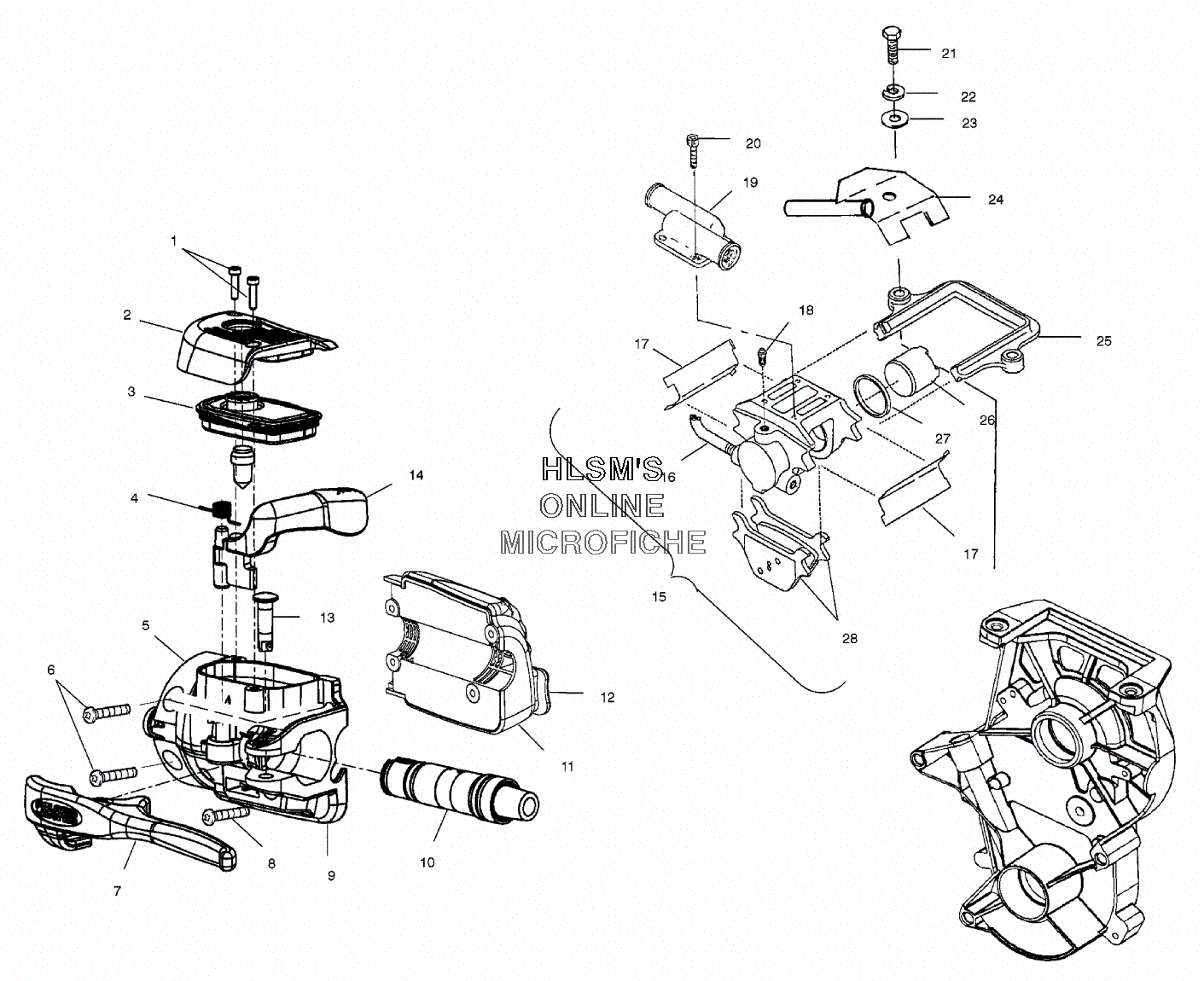

BRAKE ASSEMBLY для Polaris 700 CLASSIC (S01SD7AS) - 2001 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KIT, (HAYES)COVER SCREW KIT, (HAYES)
-
22201255 COVER ASSY. KIT, (HAYES) (INCL. 1, 3)COVER ASSY. KIT, (HAYES) (INCL. 1, 3)
-
42201250 PARKLEVER SPRING KITPARKLEVER SPRING KIT
-
52202146 MASTER CYLINDER KIT ASSY., (HAYES) (INCL. 2, 4, 7, 9, 10, 13)MASTER CYLINDER KIT ASSY., (HAYES) (INCL. 2, 4, 7, 9, 10, 13)
-
67517441 SCREWSCREW
-
72201943 LEVER KIT, 3 NOTCH/PIN/RINGLEVER KIT, 3 NOTCH/PIN/RING
-
87517566 SCREWSCREW
-
92202146 MASTER CYLINDER KIT ASSY., (HAYES)MASTER CYLINDER KIT ASSY., (HAYES)
-
94010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
102201248 5/8'' CARTRIDGE SUB, ASSY. KIT5/8'' CARTRIDGE SUB, ASSY. KIT
-
112010168 CONTROL ASSY., (LEFT), BASE W/SACONTROL ASSY., (LEFT), BASE W/SA
-
125433291 BUTTON SWITCH HI/LOBUTTON SWITCH HI/LO
-
132201946 PIVOT PIN KIT, ALUM W/SNAP RINGPIVOT PIN KIT, ALUM W/SNAP RING
-
142201251 PARKLEVER AND SPRING KIT, (INCL. 4)PARKLEVER AND SPRING KIT, (INCL. 4)
-
151910344 BRAKE CALIPER, (HD, LIQ, NOSW) (INCL. 26, 27, 28)BRAKE CALIPER, (HD, LIQ, NOSW) (INCL. 26, 27, 28)
-
161910313 LINE, BRAKE, HYBRIDLINE, BRAKE, HYBRID
-
172200467 CLIP SPRING KIT, (QTY. 2)CLIP SPRING KIT, (QTY. 2)
-
181930735 INLET KITINLET KIT
-
191930728 COOLER, WATER, BRAKECOOLER, WATER, BRAKE
-
192201024 GASKET, BRK.COOLERGASKET, BRK.COOLER
-
201930729 SCREW SET (PKG. OF 4)SCREW SET (PKG. OF 4)
-
217515521 BOLTBOLT
-
227552603 WASHERWASHER
-
237555806 WASHERWASHER
-
241012581 GUIDE, ROPE, CHAINCASE, ZGUIDE, ROPE, CHAINCASE, Z
-
251930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
261930734 PISTON SEAL KIT (INCL. 27)PISTON SEAL KIT (INCL. 27)
-
272200466 SEALSEAL
-
282201430 BRAKE, PAD TYPE 81 KIT, (LARGE) (INCL. 17)BRAKE, PAD TYPE 81 KIT, (LARGE) (INCL. 17)
