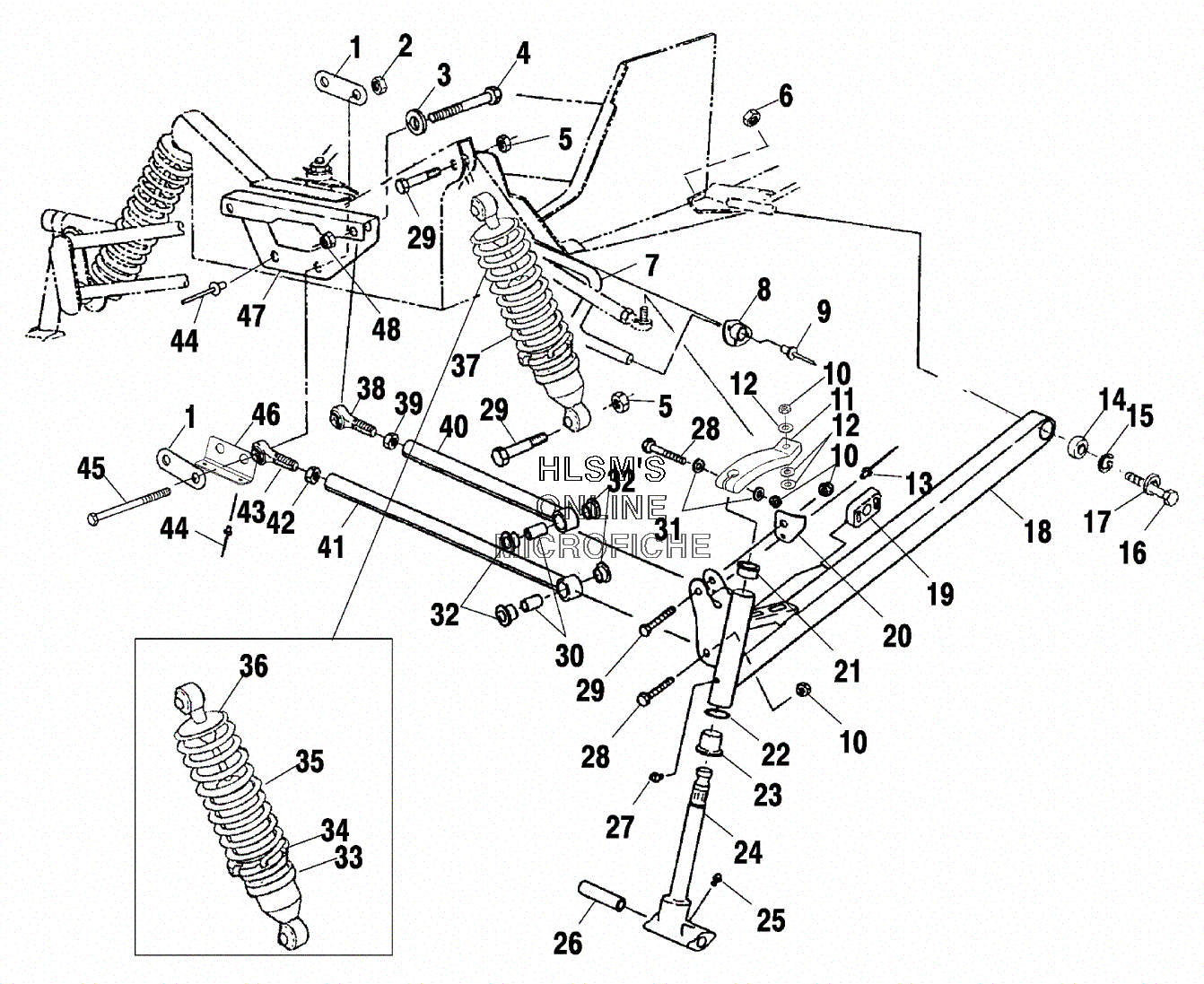

SUSPENSION - FRONT для Polaris 700 CLASSIC (S01SD7AS) - 2001 года выпуска
-
№АртикулНазвание
-
15211345 STRAP, SPACER BOTTOMSTRAP, SPACER BOTTOM
-
27542703 NUT FLEXNUT FLEX
-
37558702 WASHER THRUSTWASHER THRUST
-
47512551 BOLTBOLT
-
57542439 NUT, NYLOKNUT, NYLOK
-
67547140 NUT, (7/16X20 HVY, NYLON ZY3)NUT, (7/16X20 HVY, NYLON ZY3)
-
75243008-067 BAR, TORSION, (5/8, BLACK)BAR, TORSION, (5/8, BLACK)
-
85432038 BUSHING, SWAY BARBUSHING, SWAY BAR
-
97621477 RIVETRIVET
-
107542403 NUT LOCKNUT LOCK
-
115131739 ARM, (LEFT), STRG, ALUM.ARM, (LEFT), STRG, ALUM.
-
115131740 ARM, (RIGHT), STRG, ALUM.ARM, (RIGHT), STRG, ALUM.
-
127555797 WASHERWASHER
-
137661130 RIVET, (3/16-.214-.420)RIVET, (3/16-.214-.420)
-
147061042 BEARING, SPHERICAL, (7/16, PLASTIC)BEARING, SPHERICAL, (7/16, PLASTIC)
-
157710437 RING, RETAININGRING, RETAINING
-
167512579 BOLTBOLT
-
177555801 WASHERWASHER
-
181820713-067 TRAILING ARM, (LEFT), (BLACK), SVC, ASSY. (INCL. 14, 15)TRAILING ARM, (LEFT), (BLACK), SVC, ASSY. (INCL. 14, 15)
-
181820714-067 TRAILING ARM, (RIGHT), (BLACK), SVC, ASSY. (INCL. 14, 15)TRAILING ARM, (RIGHT), (BLACK), SVC, ASSY. (INCL. 14, 15)
-
195432561 SLIDE, SWAYBAR, (5/8)SLIDE, SWAYBAR, (5/8)
-
205242017-067 STOP, STRG, (LEFT).STOP, STRG, (LEFT).
-
205242018-067 STOP, STRG, (RIGHT).STOP, STRG, (RIGHT).
-
213573909 BUSHING, FLANGEBUSHING, FLANGE
-
227556509 WASHER SPECIALWASHER SPECIAL
-
233574208 BUSHING, SPINDLE HSGBUSHING, SPINDLE HSG
-
246230099-067 SPINDLE, SHAFT, HARD.SPINDLE, SHAFT, HARD.
-
257080306 FITTING, LUBE.W/BALL CK.FITTING, LUBE.W/BALL CK.
-
265010158 BUSHING, PIVOTBUSHING, PIVOT
-
277080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
287517583 SCREW, (3/8, 24X2 HX/CP GR5, Y, SP)SCREW, (3/8, 24X2 HX/CP GR5, Y, SP)
-
297515415 BOLTBOLT
-
305010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
317555832 WASHERWASHER
-
325431486 BUSH, RAD. ROD PIVOT, OUT.BUSH, RAD. ROD PIVOT, OUT.
-
331500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
345431734 RING, SPRING PRELOAD ADJ.RING, SPRING PRELOAD ADJ.
-
357041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
365020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
377041503 SHOCK, GAS, IFS, SELECTSHOCK, GAS, IFS, SELECT
-
387061049 ROD END, (RADIUS, RIGHT, 7/16'')ROD END, (RADIUS, RIGHT, 7/16'')
-
397542520 NUT JAMNUT JAM
-
401822588-067 RADIUS ROD, UPPER, (BLACK)RADIUS ROD, UPPER, (BLACK)
-
411822559-067 RADIUS ROD, LOWER, (BLACK)RADIUS ROD, LOWER, (BLACK)
-
427542711 NUT, JAMNUT, JAM
-
437061052 ROD END, (RADIUS, RIGHT, LOWER)ROD END, (RADIUS, RIGHT, LOWER)
-
447661638 RIVET, INTERLOCK, BRIVET, INTERLOCK, B
-
457512684 BOLTBOLT
-
465242578 BRACKET, RAD. ROD, BOTTOMBRACKET, RAD. ROD, BOTTOM
-
471012575-067 BRACE, BULKHEAD, FRONT, (BLACK)BRACE, BULKHEAD, FRONT, (BLACK)
-
487542503 NUT, LOCKNUT, LOCK
