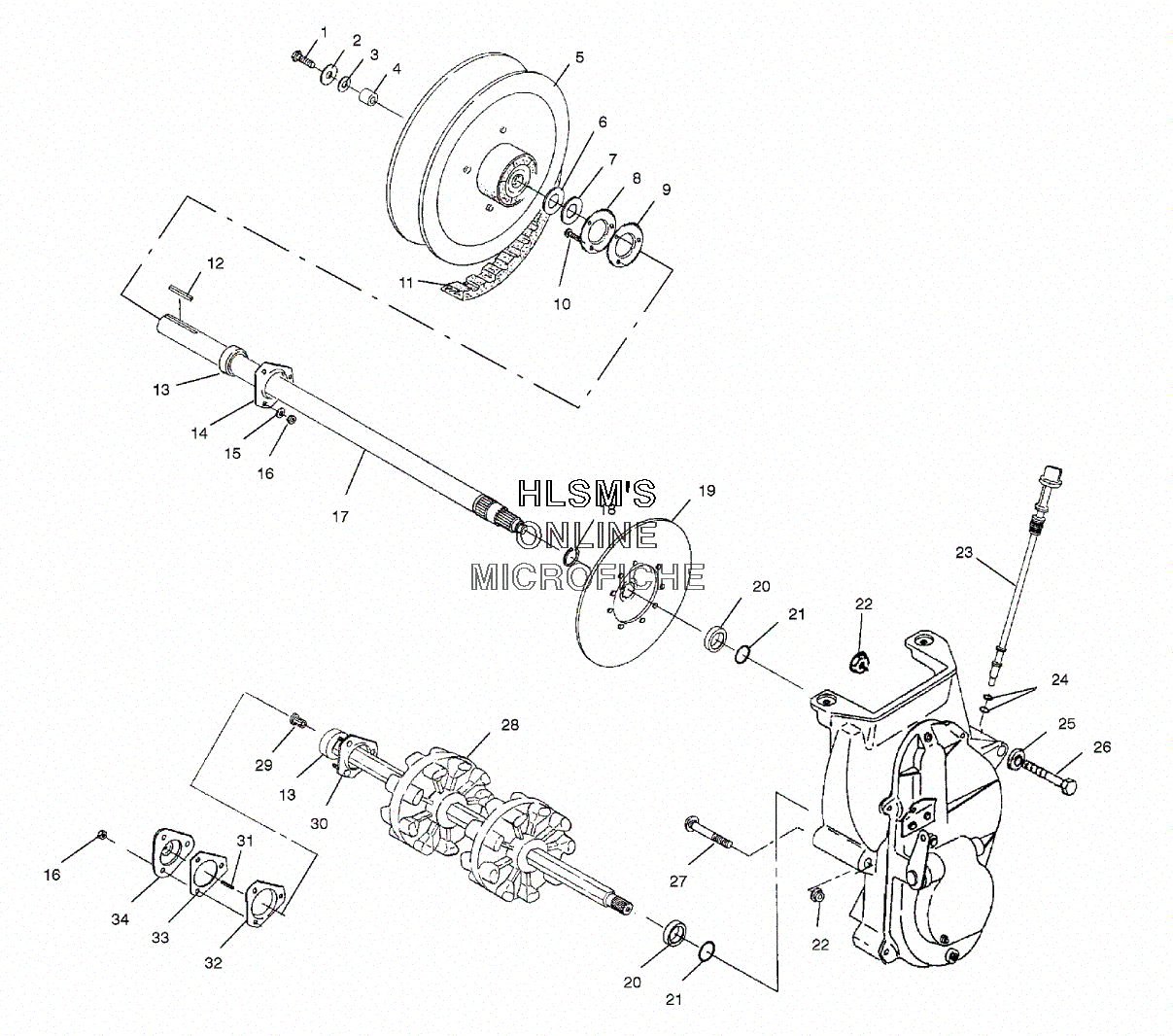

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 700 CLASSIC (S01SD7AS) - 2001 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020291 SPACERSPACER
-
67555864 BUSHINGBUSHING
-
77556509 WASHER SPECIALWASHER SPECIAL
-
85241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
87080561 FITTING, LUB/VENFITTING, LUB/VEN
-
95811095 GASKET, JACKSHAFT, (BLACK)GASKET, JACKSHAFT, (BLACK)
-
107512377 BOLTBOLT
-
113211065 BELT, DRIVEBELT, DRIVE
-
127721116 KEYKEY
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157558402 WASHER STEELWASHER STEEL
-
167542324 NUTNUT
-
171332207 JACKSHAFT ASSY., 15 SPL (INCL. 13, 18)JACKSHAFT ASSY., 15 SPL (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC, (SNOW, 6385 CR, ASSY.)BRAKE DISC, (SNOW, 6385 CR, ASSY.)
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O-RINGO-RING
-
227542423 NUTNUT
-
231332143 DIPSTICK ASSY.DIPSTICK ASSY.
-
245410675 O-RINGO-RING
-
257558403 WASHER WROUGHTWASHER WROUGHT
-
267515485 BOLTBOLT
-
277515428 BOLTBOLT
-
281590284 DRIVESHAFT ASSY., (2 DR WIDE, XHS) (INCL. 13, 29, 30)DRIVESHAFT ASSY., (2 DR WIDE, XHS) (INCL. 13, 29, 30)
-
293280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
301012945 FLANGETTE, W/SCREWS ASSY.FLANGETTE, W/SCREWS ASSY.
-
313280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
325243529 FLANGETTE, OFFSET, W/HOLEFLANGETTE, OFFSET, W/HOLE
-
335830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
343280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
