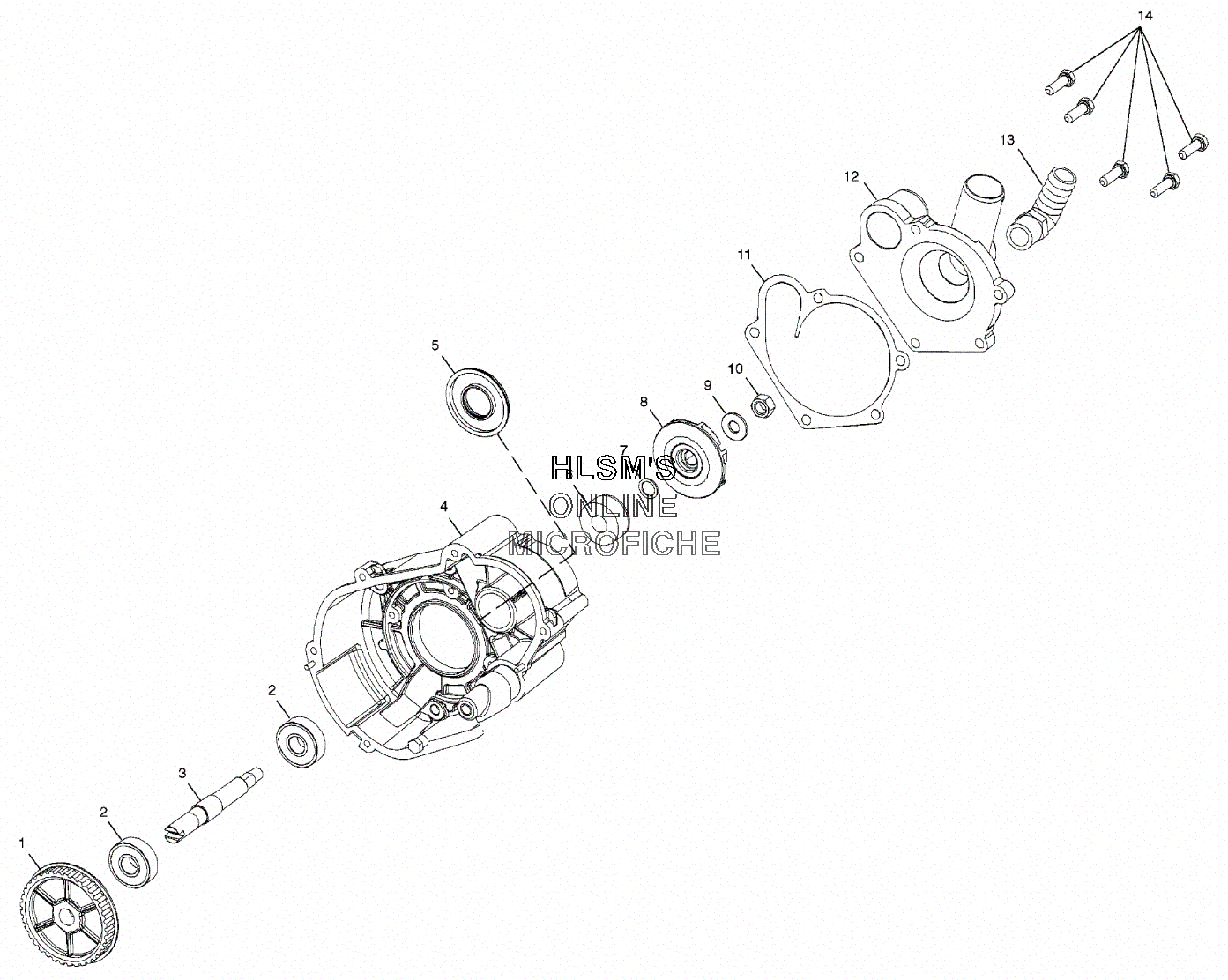

WATER PUMP для Polaris 700 CLASSIC (S01SD7AS) - 2001 года выпуска
-
№АртикулНазвание
-
13021044 PULLEY, WATERPUMP DRIVEN, (17.00)PULLEY, WATERPUMP DRIVEN, (17.00)
-
23514311 BEARING, BALL, (SLD.DGRV.)BEARING, BALL, (SLD.DGRV.)
-
35132273 SHAFT, WATERPUMP, (700BASE, 17.00)SHAFT, WATERPUMP, (700BASE, 17.00)
-
53610044 SEALSEAL
-
63610067 SEAL, WATERPUMPSEAL, WATERPUMP
-
77556006 WASHER, FLAT, SS.WASHER, FLAT, SS.
-
85432330 IMPELLER, WATERPUMPIMPELLER, WATERPUMP
-
97555874 WASHER, FLAT, S.S.WASHER, FLAT, S.S.
-
107546804 NUT, HEXNUT, HEX
-
115811627 GASKET, COVER, WATERPUMPGASKET, COVER, WATERPUMP
-
125630864 COVER, WATERPUMPCOVER, WATERPUMP
-
137052312 FITTING, (90Ш, 3/8 NPT, 5/8ID HOSE)FITTING, (90Ш, 3/8 NPT, 5/8ID HOSE)
-
147516822 SCREWSCREW
