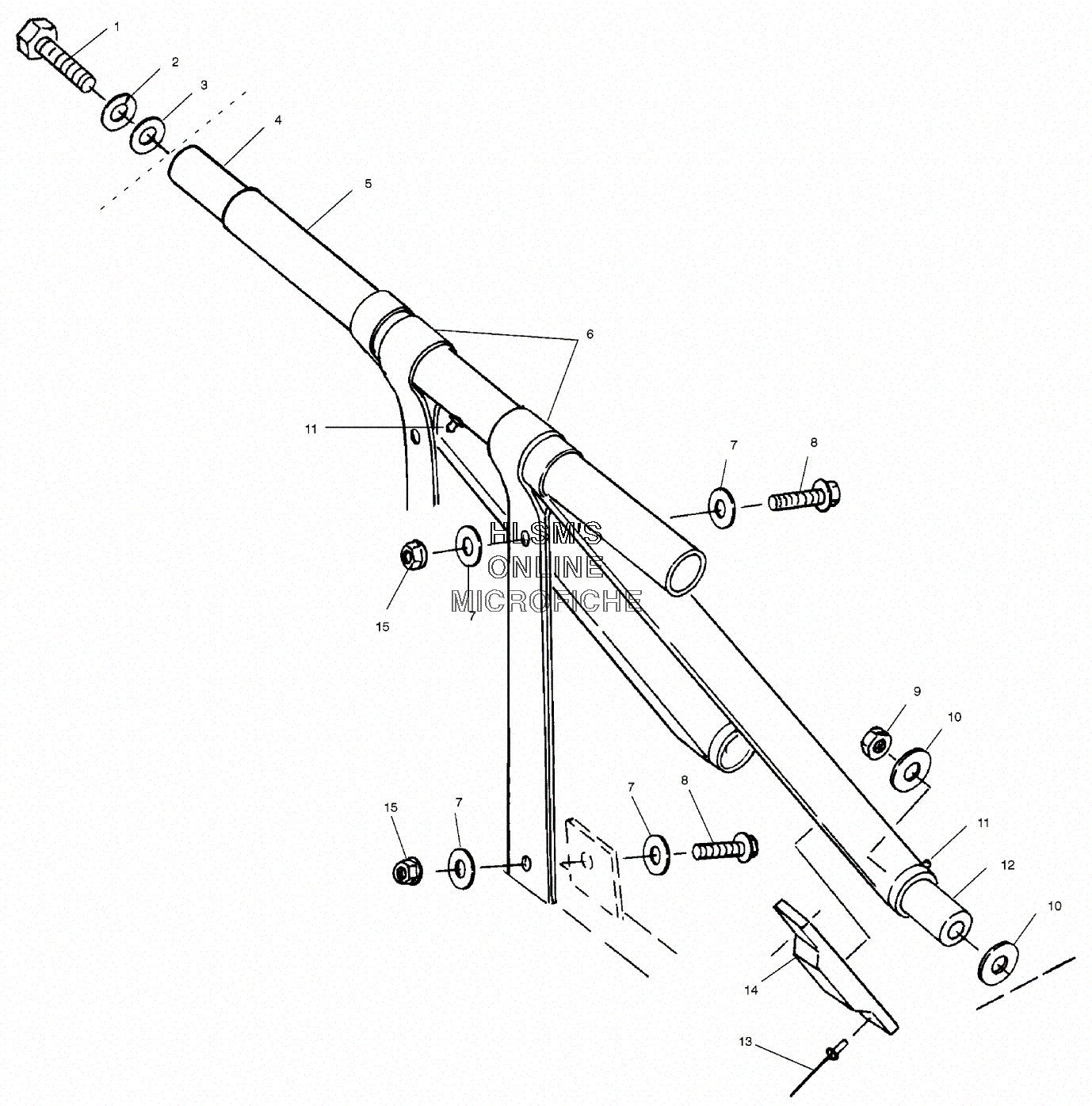

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 700 CLASSIC (S01SD7AS) - 2001 года выпуска
-
№АртикулНазвание
-
17517436 SCREW, (7/16, 14X1.5, HX)SCREW, (7/16, 14X1.5, HX)
-
27552614 WASHER, LOCKWASHER, LOCK
-
37555984 WASHERWASHER
-
45020812 SHAFTSHAFT
-
51541710-067 WELD, FRT TORQ ARM, (XTRA 12, BLACK)WELD, FRT TORQ ARM, (XTRA 12, BLACK)
-
65410938 STRAP, LIMITERSTRAP, LIMITER
-
77555959 WASHERWASHER
-
87512310 SCREWSCREW
-
97542403 NUT LOCKNUT LOCK
-
107555743 WASHERWASHER
-
117080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
125020813 SHAFTSHAFT
-
137621418 POP RIVETPOP RIVET
-
145432166 BUMPER, FR.TORQ. ARM (XTRA 12)BUMPER, FR.TORQ. ARM (XTRA 12)
-
157542324 NUTNUT
