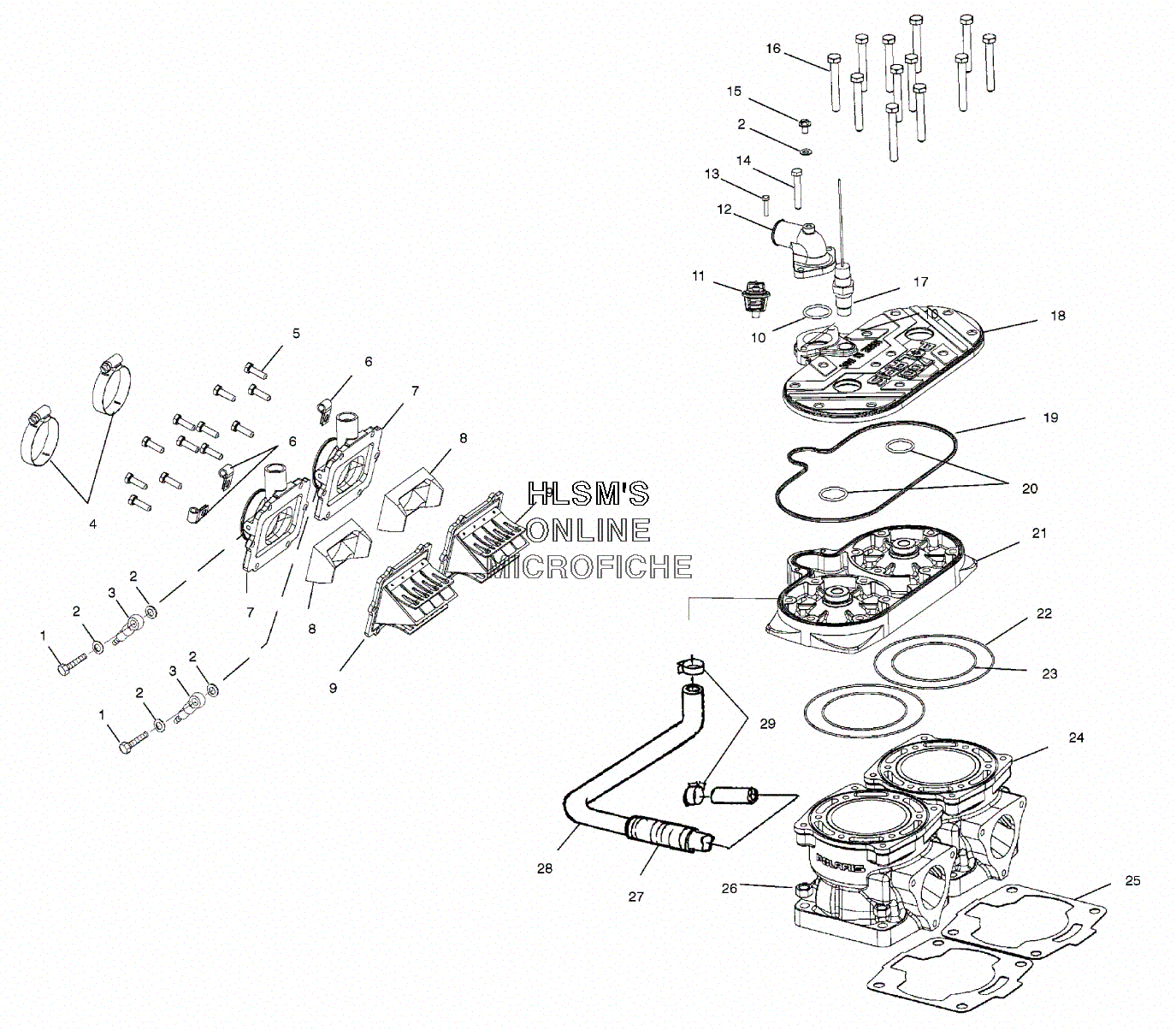

CYLINDER ASSEMBLY для Polaris 700 SKS (S01SS7AS) - 2001 года выпуска
-
№АртикулНазвание
-
17517578 SCREWSCREW
-
27555998 WASHER, FLATWASHER, FLAT
-
37052160 VALVE, CHECK OIL PUMPVALVE, CHECK OIL PUMP
-
47080681 CLAMP, HOSECLAMP, HOSE
-
57517398 SCREWSCREW
-
67080683 CLAMP, HOSECLAMP, HOSE
-
71253259 ADAPTOR, CARB (40MM)ADAPTOR, CARB (40MM)
-
85433151 STUFFER, REED BLOCKSTUFFER, REED BLOCK
-
91201831 VALVE, REEDVALVE, REED
-
105411521 O-RING, LIPSEALO-RING, LIPSEAL
-
117052224 THERMOSTAT (60ШC)THERMOSTAT (60ШC)
-
125630992 COVER, THERMOSTATCOVER, THERMOSTAT
-
137516822 SCREWSCREW
-
147516818 SCREWSCREW
-
157517679 SCREWSCREW
-
167517534 SCREWSCREW
-
174110228 SENSOR, TEMP (105DEG C)SENSOR, TEMP (105DEG C)
-
185631048-093 COVER, HEAD (81MM)COVER, HEAD (81MM)
-
195411294 SEAL, RUBBER HEADSEAL, RUBBER HEAD
-
205410917 O-RINGO-RING
-
213021124 HEAD, CYLINDER (81MM)HEAD, CYLINDER (81MM)
-
225410931 O-RINGO-RING
-
235410932 O-RINGO-RING
-
245131824 CYLINDER (81 MM.)CYLINDER (81 MM.)
-
255811538 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
267547013 NUTNUT
-
275521398-96 CONDUIT, FLEX (.75''ID) (OPT)CONDUIT, FLEX (.75''ID) (OPT)
-
285411536 HOSE, BYPASSHOSE, BYPASS
-
297080959 CLAMP-3, TONG (BLACK)CLAMP-3, TONG (BLACK)
