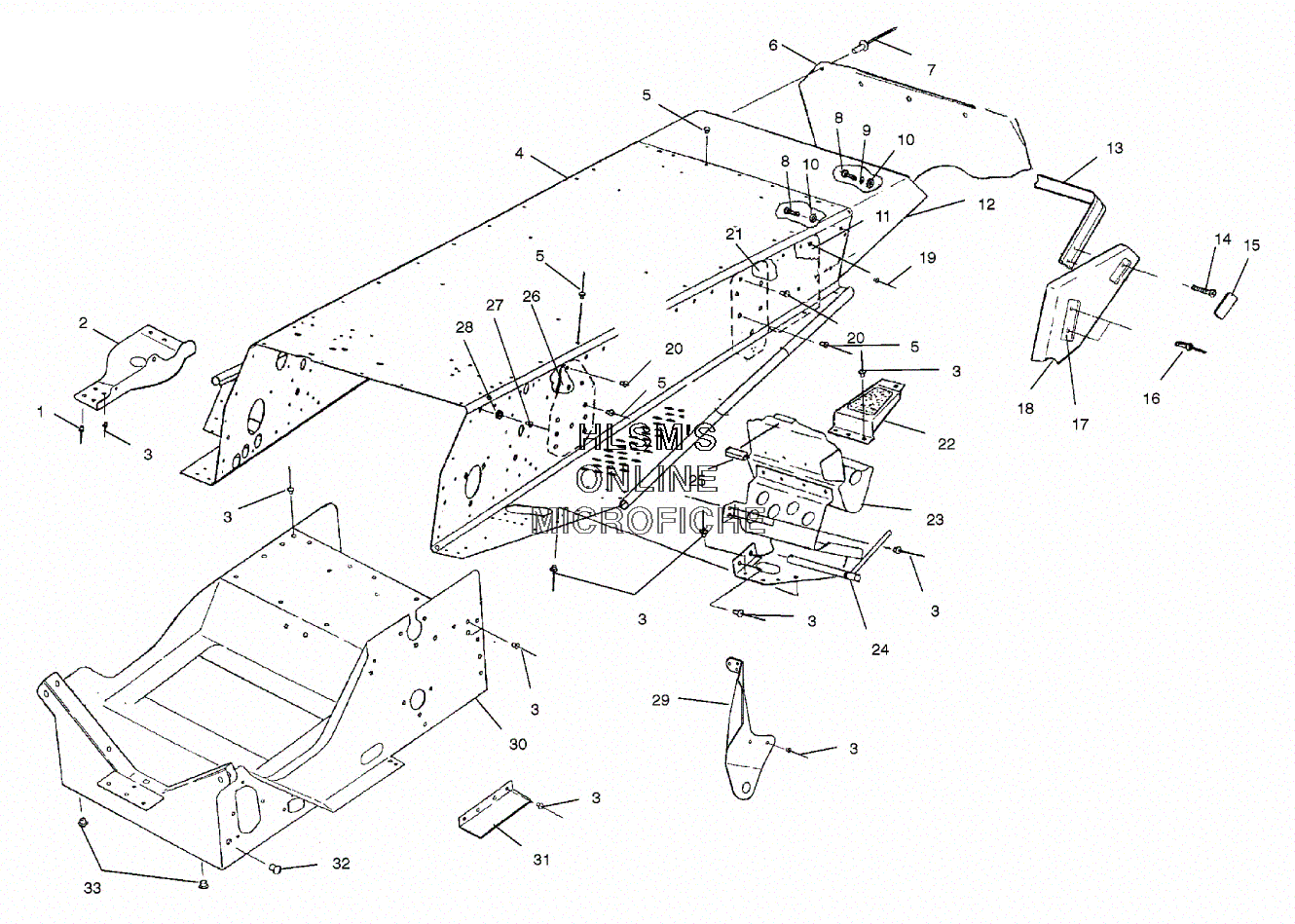

TUNNEL ASSEMBLY для Polaris 700 SKS (S01SS7AS) - 2001 года выпуска
-
№АртикулНазвание
-
17661643 RIVETRIVET
-
25243419 GUARD, CHAINCASE SUMP, TUNNELGUARD, CHAINCASE SUMP, TUNNEL
-
37661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
-
41012938-067 ASSY., TUNNEL, 136, SPRCE (INCL. 12,21,26) (BLACK)ASSY., TUNNEL, 136, SPRCE (INCL. 12,21,26) (BLACK)
-
57661840 RIVET, SEMI TUBERIVET, SEMI TUBE
-
65410394-1106 FLAP, SNOW, MOLDED (BLACK W/SILVER)FLAP, SNOW, MOLDED (BLACK W/SILVER)
-
77621418 POP RIVETPOP RIVET
-
87512240 BOLTBOLT
-
97552801 LOCK WASHERLOCK WASHER
-
107558301 WASHERWASHER
-
121012580-067 PANEL,TUNNEL (BACK)PANEL,TUNNEL (BACK)
-
132670169 BUMPER, ASSY. (BLACK/REAR)BUMPER, ASSY. (BLACK/REAR)
-
147512084 SCREWSCREW
-
152670133 REFLECTOR ASSY. (RED)REFLECTOR ASSY. (RED)
-
167621515 RIVETRIVET
-
175131546 SUPPORT HAND, HOLDSUPPORT HAND, HOLD
-
185432562 COVER, BUMPER W/HANDLE (LEFT)COVER, BUMPER W/HANDLE (LEFT)
-
185432563 COVER, BUMPER, W/HANDLE (RIGHT)COVER, BUMPER, W/HANDLE (RIGHT)
-
197621432 RIVETRIVET
-
207661841 RIVET, SEMI TUBERIVET, SEMI TUBE
-
211012578-067 BRACKET, SUSP. (LEFT/REAR)BRACKET, SUSP. (LEFT/REAR)
-
211012579-067 BRACKET, SUSP. (RIGHT/REAR)BRACKET, SUSP. (RIGHT/REAR)
-
231012898 FOOTREST (LEFT/BLACK)FOOTREST (LEFT/BLACK)
-
231012899 FOOTREST (RIGHT/BLACK)FOOTREST (RIGHT/BLACK)
-
241012621-067 SUPPORT (LEFT/TUNNEL/BLACK)SUPPORT (LEFT/TUNNEL/BLACK)
-
241012622-067 SUPPORT (RIGHT/TUNNEL/BLACK)SUPPORT (RIGHT/TUNNEL/BLACK)
-
255521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
265244287-067 PAD, SUSPENSION (FRONT)PAD, SUSPENSION (FRONT)
-
277621222 RIVETRIVET
-
287080227 SNAP, MALESNAP, MALE
-
295242494-067 BRACE, FOOTREST/TR. ARM MOUNT (LEFT)BRACE, FOOTREST/TR. ARM MOUNT (LEFT)
-
295242495-067 BRACE, FOOTREST/TR. ARM MOUNT (RIGHT)BRACE, FOOTREST/TR. ARM MOUNT (RIGHT)
-
301013358-067 BULKHEAD, CRC GEN 2 (BLACK)BULKHEAD, CRC GEN 2 (BLACK)
-
315222857 GUARD,ADAPTER GUIDEGUARD,ADAPTER GUIDE
-
327080416 PLUG, HOLEPLUG, HOLE
-
337080398 PLUG, HOLEPLUG, HOLE
