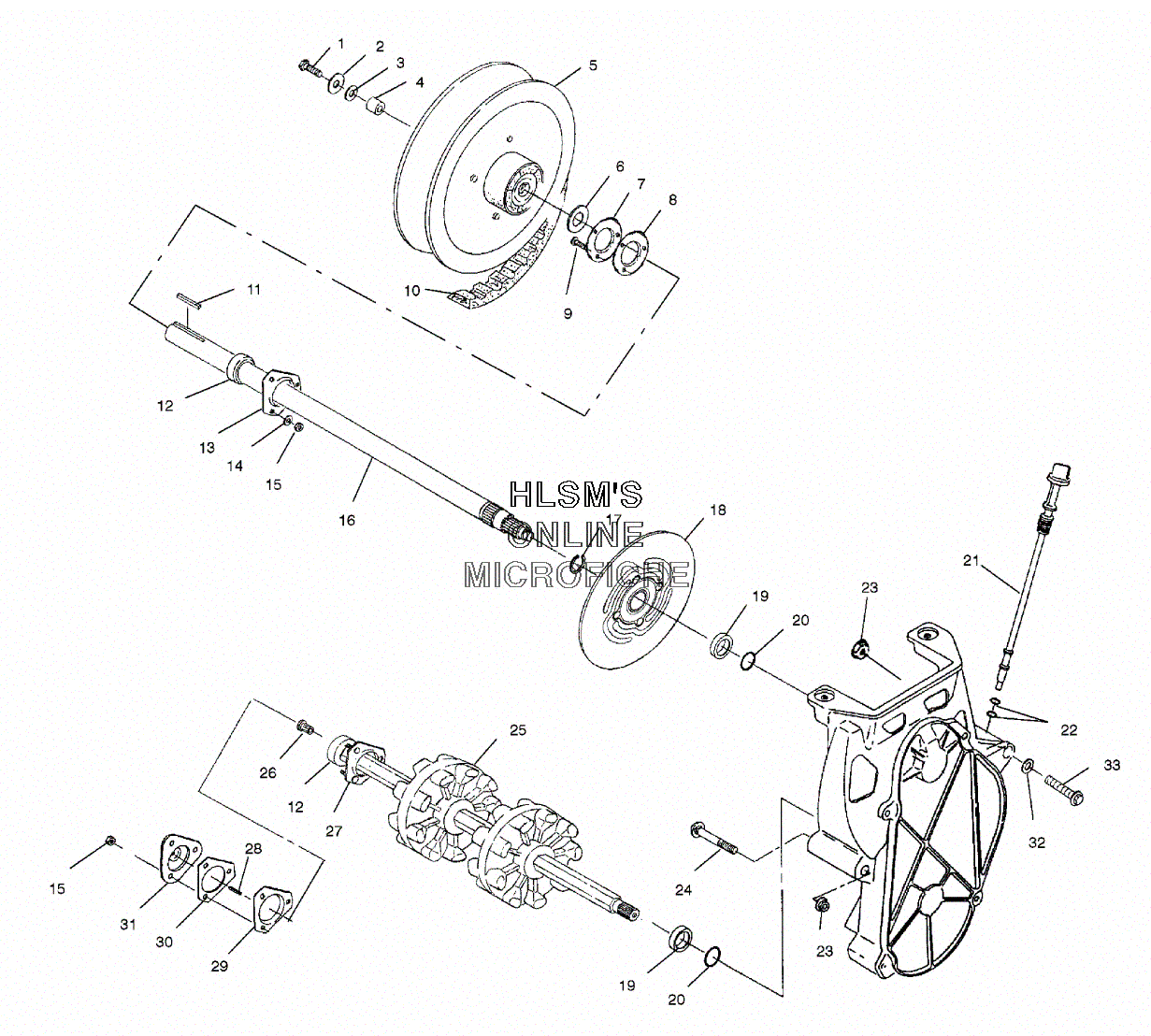

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 700 SKS (S01SS7AS) - 2001 года выпуска`
-
№АртикулНазвание
-
17517820 BOLTBOLT
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHER (OTP)WASHER (OTP)
-
45020291 SPACERSPACER
-
67556509 WASHER SPECIAL (OPT)WASHER SPECIAL (OPT)
-
67555864 BUSHING (OPT)BUSHING (OPT)
-
75241359 FLANGE,RELUBE W/ZERKFLANGE,RELUBE W/ZERK
-
77080561 FITTING, LUB/VENFITTING, LUB/VEN
-
85811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
97512377 BOLTBOLT
-
103211065 BELT, DRIVEBELT, DRIVE
-
117721128 KEYKEY
-
123514525 BEARINGBEARING
-
135222751 FLANGETTEFLANGETTE
-
147558402 WASHER STEELWASHER STEEL
-
157542324 NUTNUT
-
161332207 JACKSHAFT ASSY., 15 SPLINE (INCL. 12,17)JACKSHAFT ASSY., 15 SPLINE (INCL. 12,17)
-
177710422 RING, RETAININGRING, RETAINING
-
181910403 BRAKE DISC, SNOWBRAKE DISC, SNOW
-
195020588 SLEEVE, SEALSLEEVE, SEAL
-
205410613 O-RING,O-RING,
-
215431419 DIPSTICK ASSY.DIPSTICK ASSY.
-
225410675 O-RINGO-RING
-
237542423 NUTNUT
-
247515428 BOLTBOLT
-
251590284 DRIVESHAFT ASSY. 2 DR (INCL. 26,27)DRIVESHAFT ASSY. 2 DR (INCL. 26,27)
-
263280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
271012945 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
283280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
295243529 FLANGETTE-OFFSET, W/HOLEFLANGETTE-OFFSET, W/HOLE
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
-
327558403 WASHER, WROUGHTWASHER, WROUGHT
-
337515485 BOLTBOLT
