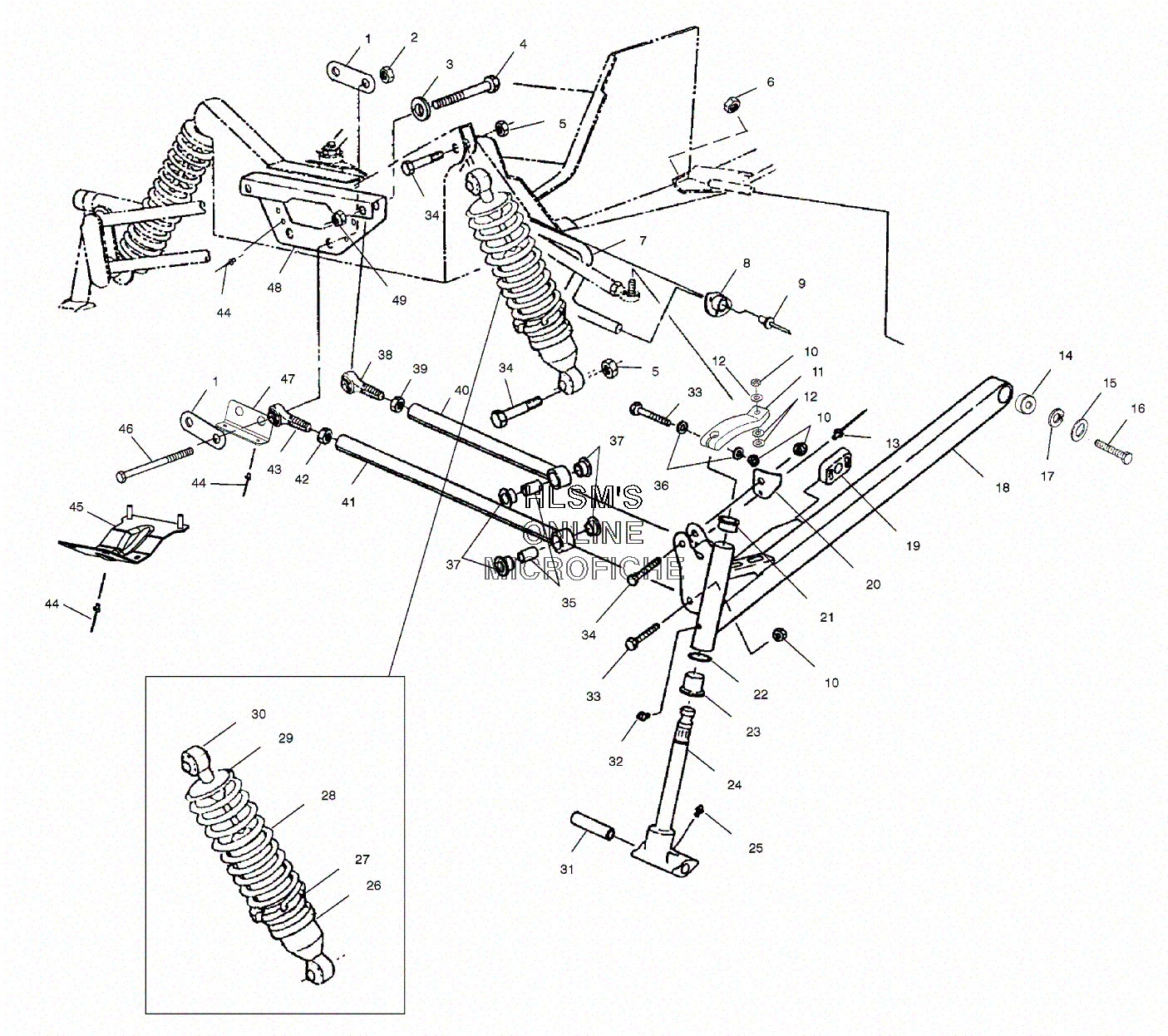

SUSPENSION - FRONT для Polaris 700 SKS (S01SS7AS) - 2001 года выпуска
-
№АртикулНазвание
-
15211345 STRAP, SPACER BOTTOMSTRAP, SPACER BOTTOM
-
27542703 NUT FLEXNUT FLEX
-
37558702 WASHER THRUSTWASHER THRUST
-
47512551 BOLTBOLT
-
57542439 NUT, NYLOKNUT, NYLOK
-
67547140 NUT, NYLONNUT, NYLON
-
75243008-067 BAR, TORSION, 5/8 (BLACK)BAR, TORSION, 5/8 (BLACK)
-
85432038 BUSHING, SWAY BARBUSHING, SWAY BAR
-
97621477 RIVETRIVET
-
107542403 NUT LOCKNUT LOCK
-
115131739 ARM, STEERING ALUM. (LEFT)ARM, STEERING ALUM. (LEFT)
-
115131740 ARM, STEERING, ALUM. (RIGHT)ARM, STEERING, ALUM. (RIGHT)
-
127555797 WASHERWASHER
-
137661643 RIVETRIVET
-
147061042 BEARING, SPHERICAL, 7/16, PLASTICBEARING, SPHERICAL, 7/16, PLASTIC
-
157555801 WASHERWASHER
-
167512579 BOLTBOLT
-
177710437 RING, RETAININGRING, RETAINING
-
181820713-067 TRAILING ARM, SVC, ASSY. (INCL. 15) (BLACK/LEFT)TRAILING ARM, SVC, ASSY. (INCL. 15) (BLACK/LEFT)
-
181820714-067 TRAILING ARM, SVC, ASSY. (INCL. 15) (BLACK/RIGHT)TRAILING ARM, SVC, ASSY. (INCL. 15) (BLACK/RIGHT)
-
195432561 SLIDE, SWAYBAR 5/8SLIDE, SWAYBAR 5/8
-
205242017-067 STOP, STEERING (LEFT)STOP, STEERING (LEFT)
-
205242018-067 STOP, STEERING (RIGHT)STOP, STEERING (RIGHT)
-
213573909 BUSHING, FLANGEBUSHING, FLANGE
-
227556509 WASHER SPECIALWASHER SPECIAL
-
233574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
246230099-067 SPINDLE, SHAFT HARDSPINDLE, SHAFT HARD
-
257080306 FITTING, LUBE. W/BALL CHECKFITTING, LUBE. W/BALL CHECK
-
261500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
275431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
287041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
295630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
307041799 SHOCK, GAS, IFS, SELECTSHOCK, GAS, IFS, SELECT
-
315010158 BUSHING, PIVOTBUSHING, PIVOT
-
327080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
337517583 SCREWSCREW
-
347515415 BOLTBOLT
-
355010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
367555832 WASHERWASHER
-
375431486 BUSH, RADIUS ROD PIVOT, OUT.BUSH, RADIUS ROD PIVOT, OUT.
-
387061010 ROD END, RADIUS, 7/16'' (RIGHT)ROD END, RADIUS, 7/16'' (RIGHT)
-
397542520 NUT JAMNUT JAM
-
401822588-067 RADIUS ROD (UPPER/BLACK)RADIUS ROD (UPPER/BLACK)
-
411822559-067 RADIUS ROD (LOWER/BLACK)RADIUS ROD (LOWER/BLACK)
-
427542711 NUT, JAMNUT, JAM
-
437061027 ROD END, RADIUS (RIGHT/LOWER)ROD END, RADIUS (RIGHT/LOWER)
-
447661637 RIVET, INTERLOCK,ZRIVET, INTERLOCK,Z
-
455242575-067 BRACE, PAN (LOWER/BLACK)BRACE, PAN (LOWER/BLACK)
-
467512684 BOLTBOLT
-
475242578 BRACKET, RADIUS ROD (BOTTOM)BRACKET, RADIUS ROD (BOTTOM)
-
481012575-067 BRACE, BULKHEAD (FRONT/BLACK)BRACE, BULKHEAD (FRONT/BLACK)
-
497542503 NUT, LOCKNUT, LOCK
