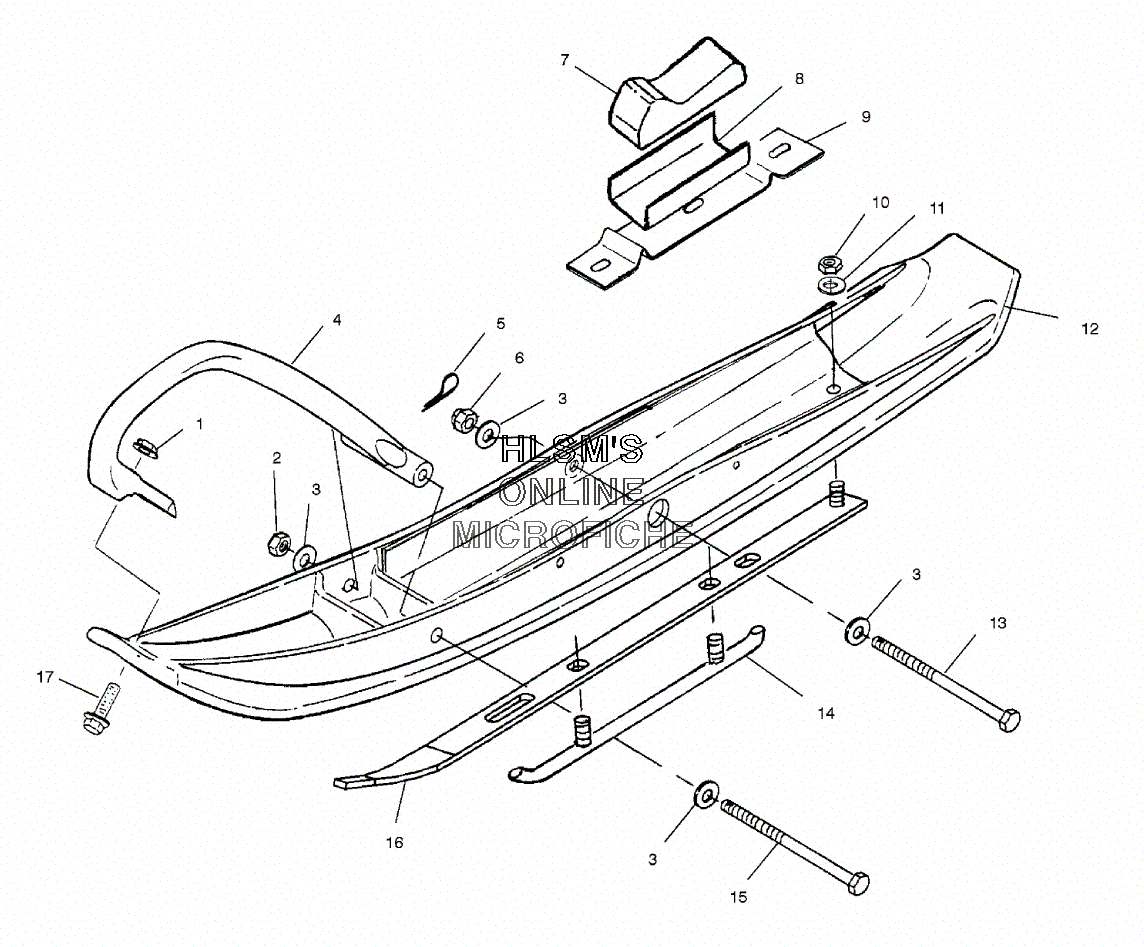

SKI ASSEMBLY для Polaris 700 SKS (S01SS7AS) - 2001 года выпуска
-
№АртикулНазвание
-
17542321 NUT LOCKNUT LOCK
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45432209-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
57661209 PIN, COTTERPIN, COTTER
-
67542438 NUT, CASTLENUT, CASTLE
-
75411094 STOP, SKI, RUBBERSTOP, SKI, RUBBER
-
85243824 RETAINER, SKI RUBBERRETAINER, SKI RUBBER
-
95241912-067 SUPPORT, SKI RUBBER (BLACK)SUPPORT, SKI RUBBER (BLACK)
-
107542324 NUTNUT
-
117555843 WASHER, WROUGHTWASHER, WROUGHT
-
121820821-070 ASSY., CMP SKI BLANK W/RK SDL (BLACK)ASSY., CMP SKI BLANK W/RK SDL (BLACK)
-
137512596 SCREWSCREW
-
142872018 SKAG, EZ,3'', COMP. SKI KITSKAG, EZ,3'', COMP. SKI KIT
-
142872019 SKAG, E/Z 3'', CO W/WR/ST KIT (INCL. 10,11,16)SKAG, E/Z 3'', CO W/WR/ST KIT (INCL. 10,11,16)
-
157515514 BOLTBOLT
-
161012748-067 PLATE, SKAG, 1.375 STUD (BLACK)PLATE, SKAG, 1.375 STUD (BLACK)
-
177515307 BOLTBOLT
