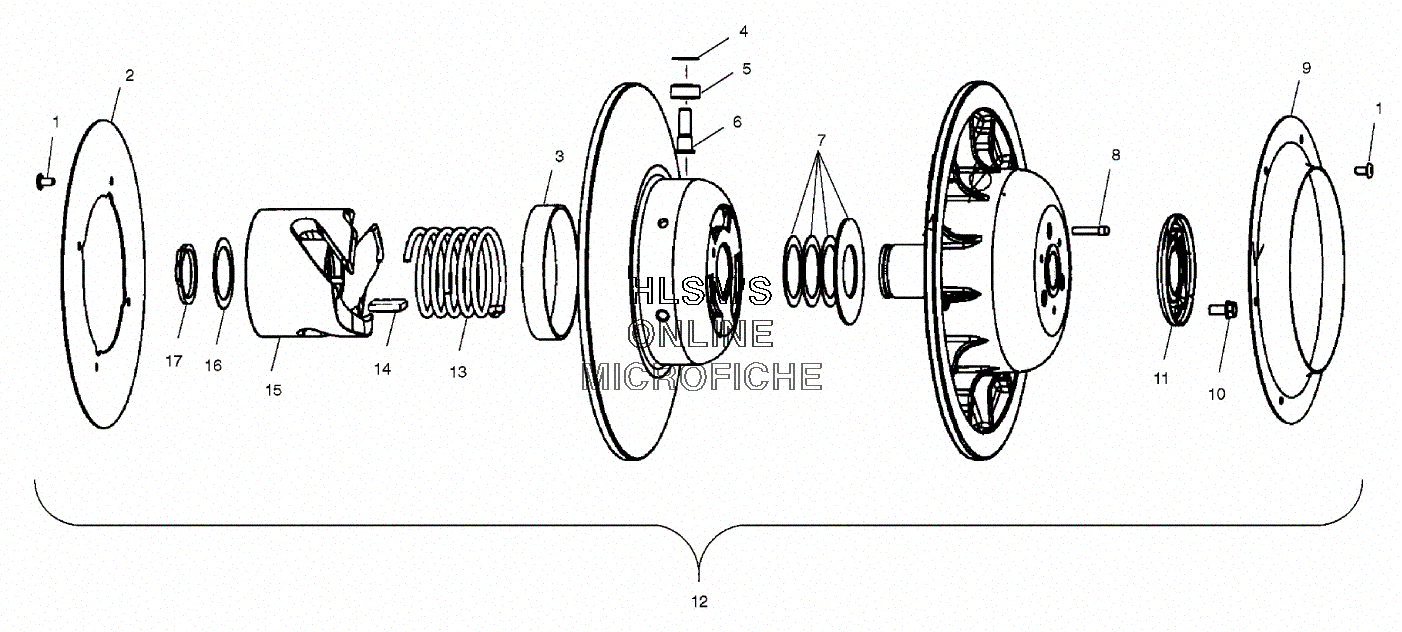

CLUTCH - DRIVEN для Polaris 800 LE (S01ND8BS) - 2001 года выпуска
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
25243158 PLATE, DRIVEN VENTEDPLATE, DRIVEN VENTED
-
33569803 BUSHING, D.U.BUSHING, D.U.
-
47556145 SHIMSHIM
-
55631061 ROLLER, DRIVENROLLER, DRIVEN
-
67661133 PIN, ROLLER DRIVENPIN, ROLLER DRIVEN
-
77556804 WASHER (.03) (OPT)WASHER (.03) (OPT)
-
77555898 WASHER (.02) (OPT)WASHER (.02) (OPT)
-
77556076 WASHER (.025) (OPT)WASHER (.025) (OPT)
-
77555865 WASHER, DRIVE CLUTCH (.075) (OPT)WASHER, DRIVE CLUTCH (.075) (OPT)
-
85020653 PIN, CLUTCHPIN, CLUTCH
-
95243157 CAP, DRIVEN VENTEDCAP, DRIVEN VENTED
-
107515133 SCREWSCREW
-
115222878 CAM, DRIVEN ADJUSTABLECAM, DRIVEN ADJUSTABLE
-
122900178 CLUTCH, DRIVEN ROLLER KIT (INCL. 1, 12, 14, 16, 17)CLUTCH, DRIVEN ROLLER KIT (INCL. 1, 12, 14, 16, 17)
-
137041499 SPRING, CLUTCHSPRING, CLUTCH
-
147721129 KEYKEY
-
152900172 RAMP KIT, DRIVEN ROLLERRAMP KIT, DRIVEN ROLLER
-
167556804 WASHERWASHER
-
177714804 RING, RETAININGRING, RETAINING
