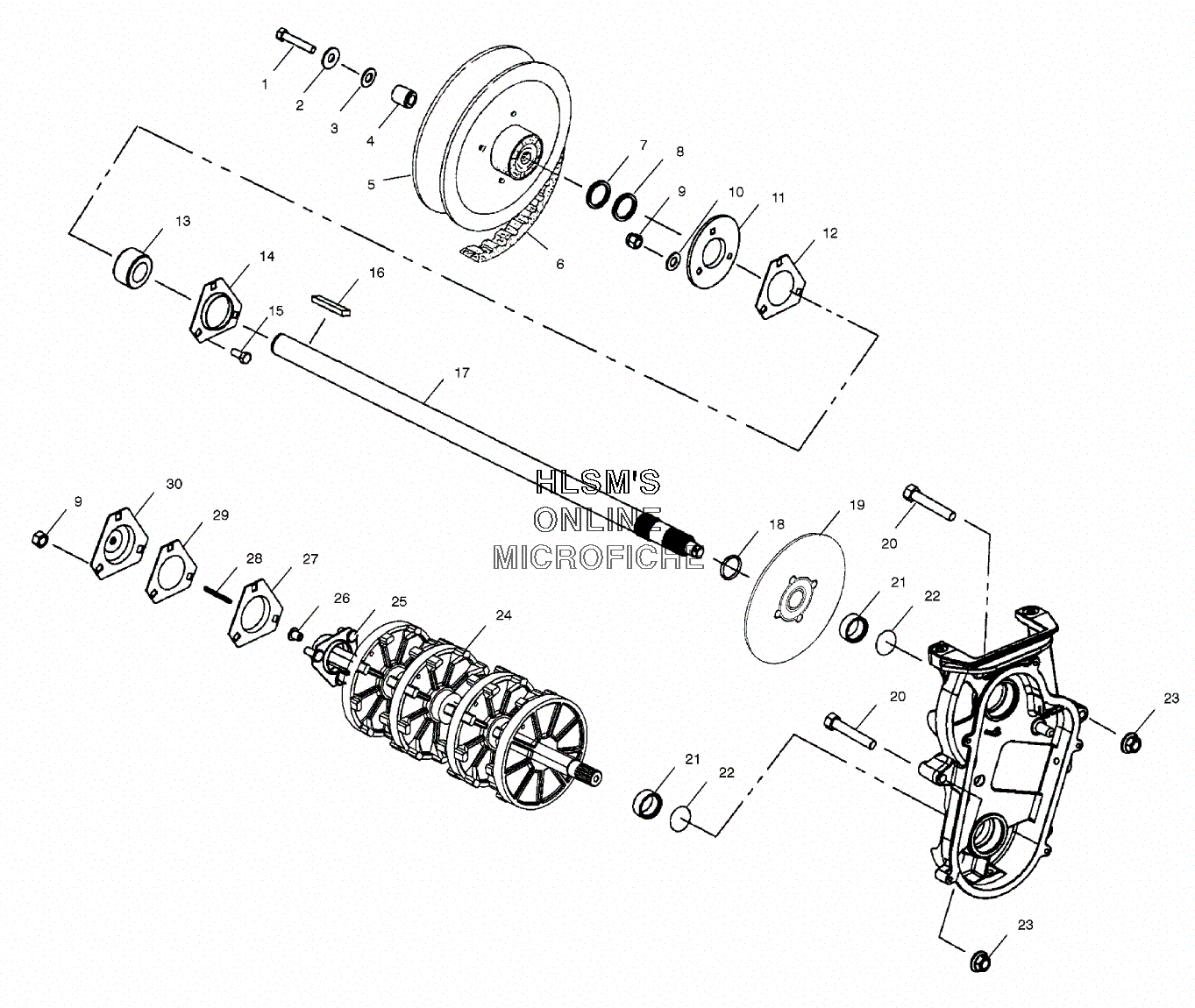

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 800 LE (S01ND8BS) - 2001 года выпуска
-
№АртикулНазвание
-
17517820 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER (OPT)WASHER (OPT)
-
45020291 SPACERSPACER
-
63211080 BELT, DRIVEBELT, DRIVE
-
77555864 BUSHING (OPT)BUSHING (OPT)
-
87556509 WASHER, SPECIAL (OPT)WASHER, SPECIAL (OPT)
-
97542324 NUTNUT
-
107558402 WASHER, STEELWASHER, STEEL
-
115241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
125811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157512377 BOLTBOLT
-
167721128 KEYKEY
-
171332220 JACKSHAFT ASSY. (15 SPLINE W/M15 BEARING ) (INCL. 13, 18)JACKSHAFT ASSY. (15 SPLINE W/M15 BEARING ) (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC ASSY.BRAKE DISC ASSY.
-
207515428 BOLTBOLT
-
215020588 SLEEVE, SEALSLEEVE, SEAL
-
225410613 O-RINGO-RING
-
237542423 NUTNUT
-
241590312 DRIVESHAFT ASSY. (INCL. 25, 26)DRIVESHAFT ASSY. (INCL. 25, 26)
-
251012945 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
263280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
275243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
283280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
295830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
303280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
