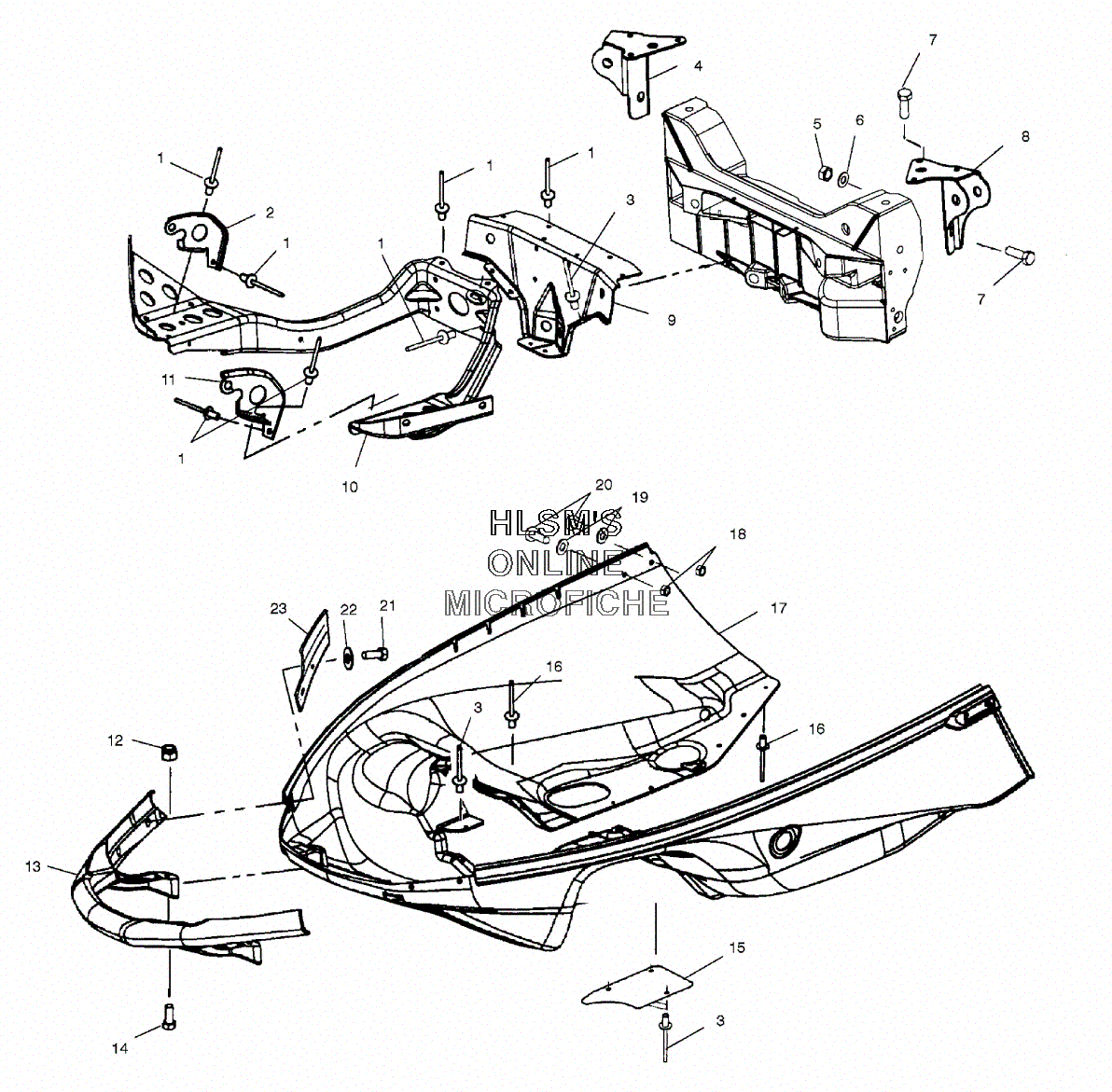

NOSEPAN ASSEMBLY #2 для Polaris 800 LE (S01ND8BS) - 2001 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
25243992-067 HINGE, LOWER PIVOT, (RIGHT), (BLACK)HINGE, LOWER PIVOT, (RIGHT), (BLACK)
-
37621472 RIVETRIVET
-
45243978 MOUNT, UPPER SHOCK, (BLACK)HD, (RIGHT)MOUNT, UPPER SHOCK, (BLACK)HD, (RIGHT)
-
57542451 NUT, NYLOCNUT, NYLOC
-
67556153 WASHER, (3/8 FW)WASHER, (3/8 FW)
-
77515440 BOLTBOLT
-
85243977 MOUNT, UPPER SHOCK, (BLACK)HD, (LEFT)MOUNT, UPPER SHOCK, (BLACK)HD, (LEFT)
-
95244049-067 BRACKET, RAD.ROD SUPPORT, (BLACK)BRACKET, RAD.ROD SUPPORT, (BLACK)
-
105244050 BRACE, PAN LOWERBRACE, PAN LOWER
-
115243991-067 HINGE, LOWER PIVOT, (LEFT), (BLACK)HINGE, LOWER PIVOT, (LEFT), (BLACK)
-
127542153 NUTNUT
-
135433518-070 BUMPER, FRONT EDGE, (BLACK)BUMPER, FRONT EDGE, (BLACK)
-
147512163 SCREWSCREW
-
155245853 SHIELD, EXHAUST, HEAT, EXTENDEDSHIELD, EXHAUST, HEAT, EXTENDED
-
167621467 RIVET, BLINDRIVET, BLIND
-
175434343-312 NOSEPAN, GAS ASSIST, (INDY/BLUE)NOSEPAN, GAS ASSIST, (INDY/BLUE)
-
187542122 NUT, LOCKNUT, LOCK
-
197555827 WASHERWASHER
-
207515166 SCREWSCREW
-
217517312 SCREWSCREW
-
227552801 LOCK WASHERLOCK WASHER
-
235244888 GUIDE, HOOD, EDGE, (LEFT)GUIDE, HOOD, EDGE, (LEFT)
-
235244889 GUIDE, HOOD, EDGE, (RIGHT)GUIDE, HOOD, EDGE, (RIGHT)
