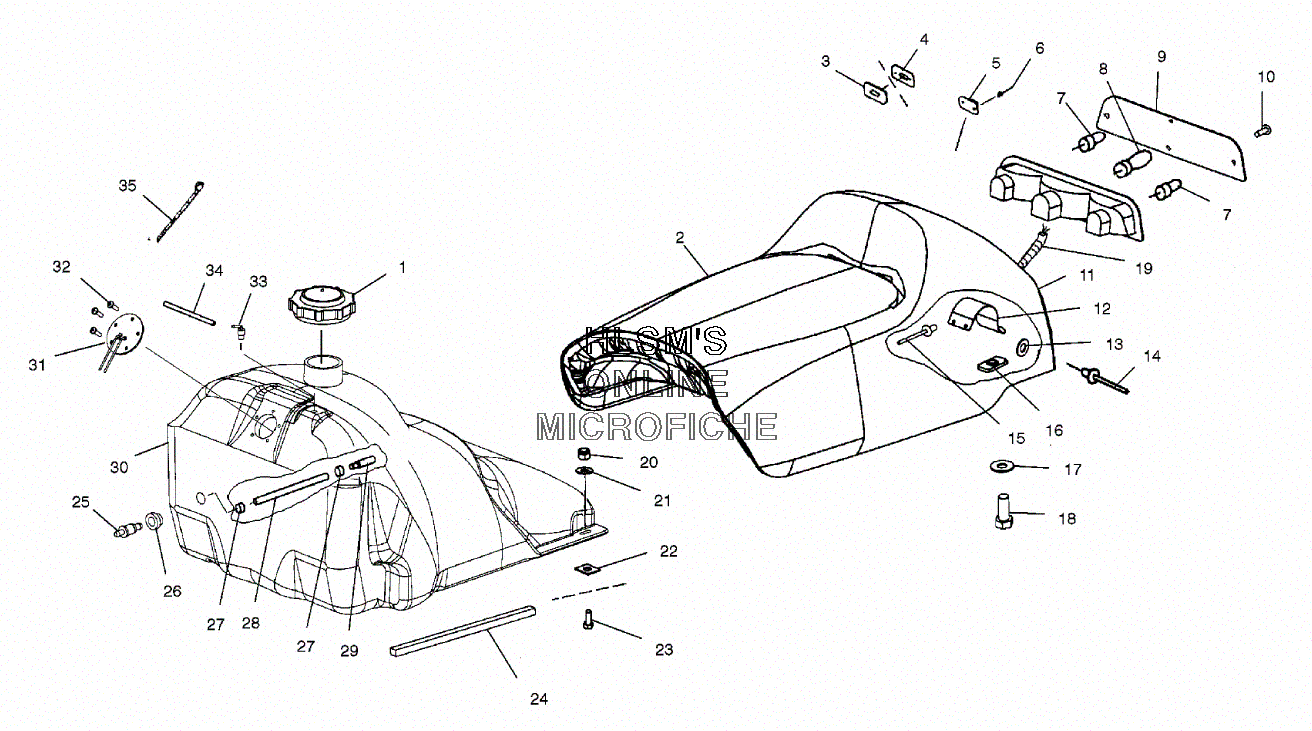

SEAT W/ GAS TANK ASSEMBLY для Polaris 800 LE (S01ND8BS) - 2001 года выпуска
-
№АртикулНазвание
-
12511195-070 CAP ASSY., FUEL (BLACK)CAP ASSY., FUEL (BLACK)
-
15810512 GASKET, FUEL CAPGASKET, FUEL CAP
-
22682628 SEAT CUSHION ASSY., (INCL. 2, 12, 19)SEAT CUSHION ASSY., (INCL. 2, 12, 19)
-
22682629 SEAT COVER ASSY.SEAT COVER ASSY.
-
37080550 GROMMET, RELATCH (1'', BOTTEM)GROMMET, RELATCH (1'', BOTTEM)
-
47080549 GROMMET, RELATCH (1'', TOP)GROMMET, RELATCH (1'', TOP)
-
57080548 TWISTLOCK, RELATCH (1'', W/HOLE)TWISTLOCK, RELATCH (1'', W/HOLE)
-
67621337 RIVETRIVET
-
74030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
84030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
95430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
107511840 SCREWSCREW
-
115433341 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
125243185 RETAINER, CLIP TOOL POUCHRETAINER, CLIP TOOL POUCH
-
137555727 RIVET BURRRIVET BURR
-
147621307 RIVETRIVET
-
157621472 RIVETRIVET
-
167547114 NUT, WELD TABNUT, WELD TAB
-
177558301 WASHERWASHER
-
187515159 SCREWSCREW
-
192460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
207542122 NUT, LOCKNUT, LOCK
-
217555960 WASHERWASHER
-
227670021 SPEED NUTSPEED NUT
-
237512193 BOLTBOLT
-
245810063 PAD, GAS TANKPAD, GAS TANK
-
257052269 FITTING (5/16''/ 3/8 STRAIGHT)FITTING (5/16''/ 3/8 STRAIGHT)
-
265432981 GROMMETGROMMET
-
277080768 RING, COMPRESSIONRING, COMPRESSION
-
288350020-160 FUEL, LINE (3/8'') (OPT)FUEL, LINE (3/8'') (OPT)
-
297052215 PICK, UP FUEL W/MESHPICK, UP FUEL W/MESH
-
302520217 FUEL TANK ASSY. (INCL. 29, 33)FUEL TANK ASSY. (INCL. 29, 33)
-
312410165 SENDER, FUELSENDER, FUEL
-
322410232 HARDWARE, PKG, SENDERHARDWARE, PKG, SENDER
-
337052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
348450061-600 FUEL LINE (3MMX7MM) (OPT)FUEL LINE (3MMX7MM) (OPT)
-
357080804 CABLE TIE (RELEASABLE, 5 1/2'')CABLE TIE (RELEASABLE, 5 1/2'')
