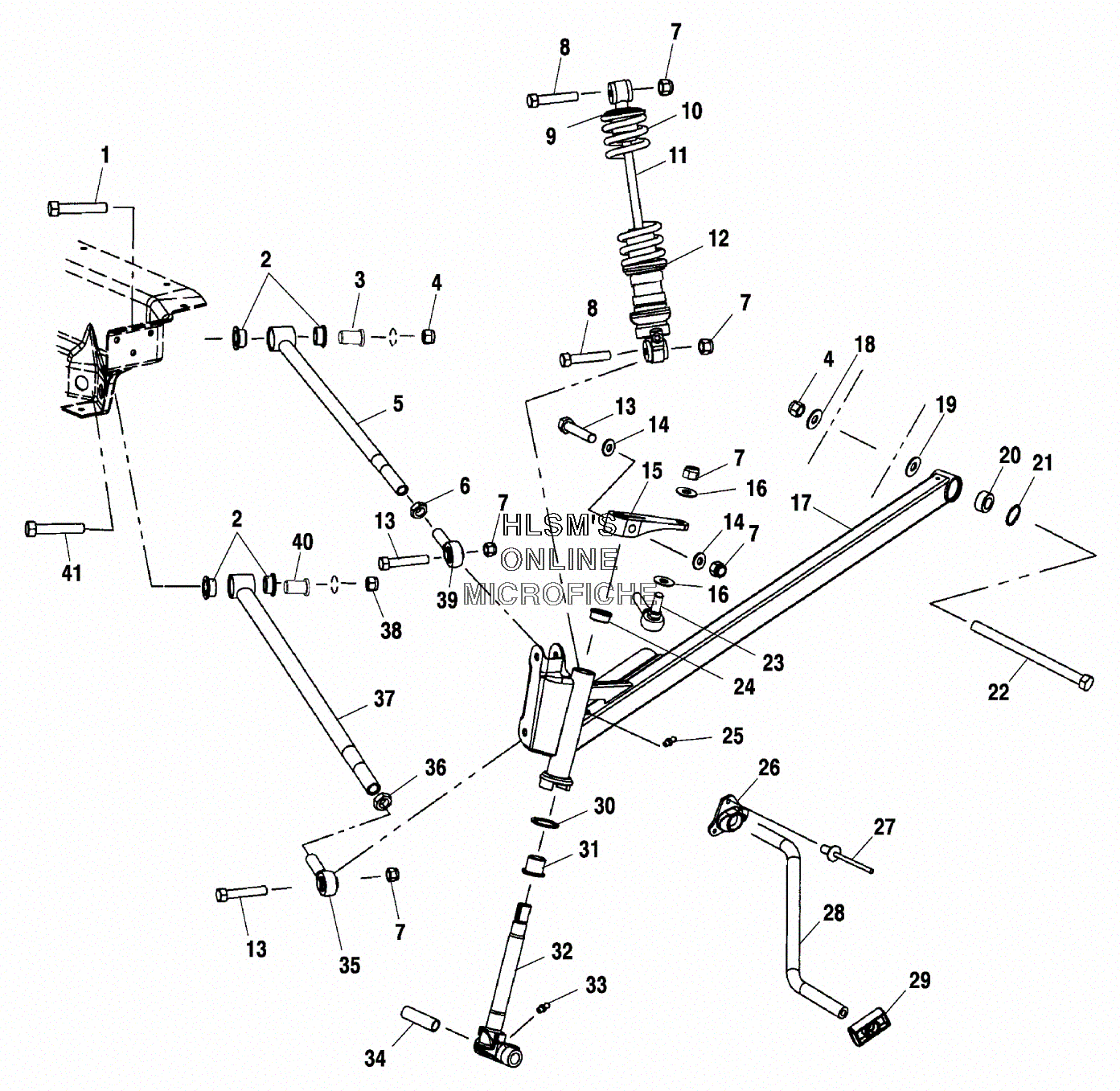

SUSPENSION - FRONT для Polaris 800 LE (S01ND8BS) - 2001 года выпуска
-
№АртикулНазвание
-
17512597 BOLTBOLT
-
25434036 BUSHING, RADIUS ROD (INNER)BUSHING, RADIUS ROD (INNER)
-
35132779 BUSHINGBUSHING
-
47547066 NUTNUT
-
51820679-312 WELD, RADIUS ROD (UPPER/BLUE)WELD, RADIUS ROD (UPPER/BLUE)
-
67542520 NUT JAMNUT JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 BOLTBOLT
-
95020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
107041950-067 SPRING, COMP (68/160#/BLACK)SPRING, COMP (68/160#/BLACK)
-
117041926 SHOCK, GASSHOCK, GAS
-
125431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
137517583 SCREWSCREW
-
147555832 WASHERWASHER
-
155132728 ARM, STEERINGARM, STEERING
-
167555797 WASHERWASHER
-
171820962-312 TRAILING ARM ASSY. (LEFT/M BLUE) (INCL. 20, 21)TRAILING ARM ASSY. (LEFT/M BLUE) (INCL. 20, 21)
-
171820963-312 TRAILING ARM ASSY. (RIGHT/M BLUE) (INCL. 20, 21)TRAILING ARM ASSY. (RIGHT/M BLUE) (INCL. 20, 21)
-
187555820 WASHERWASHER
-
195132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
207061042 BEARING, SPHERICALBEARING, SPHERICAL
-
217710437 RING, RETAININGRING, RETAINING
-
227512099 BOLTBOLT
-
237061057 ROD, END (3/8, PL, 75Ш) (RIGHT)ROD, END (3/8, PL, 75Ш) (RIGHT)
-
243573909 BUSHING, FLANGEBUSHING, FLANGE
-
257080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
265433234 BUSHING, TORSION BARBUSHING, TORSION BAR
-
277621477 RIVETRIVET
-
285244415-067 BAR, TORSION (1/2, 42.5 EDGE) (BLACK)BAR, TORSION (1/2, 42.5 EDGE) (BLACK)
-
295433884 SLIDE, TORSION BAR (1/2)SLIDE, TORSION BAR (1/2)
-
307556509 WASHER, SPECIALWASHER, SPECIAL
-
313574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
326230160-067 SHAFT, SPINDLE, HARDENED (BLACK)SHAFT, SPINDLE, HARDENED (BLACK)
-
337080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
345010158 BUSHING, PIVOTBUSHING, PIVOT
-
357061060 ROD END, RADIUS (1/2)ROD END, RADIUS (1/2)
-
367542711 NUT, JAMNUT, JAM
-
371820677-312 WELD, RADIUS ROD (LOWER/BLUE)WELD, RADIUS ROD (LOWER/BLUE)
-
387542703 NUT, FLEXNUT, FLEX
-
397061061 ROD END, RADIUS (7/16)ROD END, RADIUS (7/16)
-
405132780 BUSHINGBUSHING
-
417512684 BOLTBOLT
