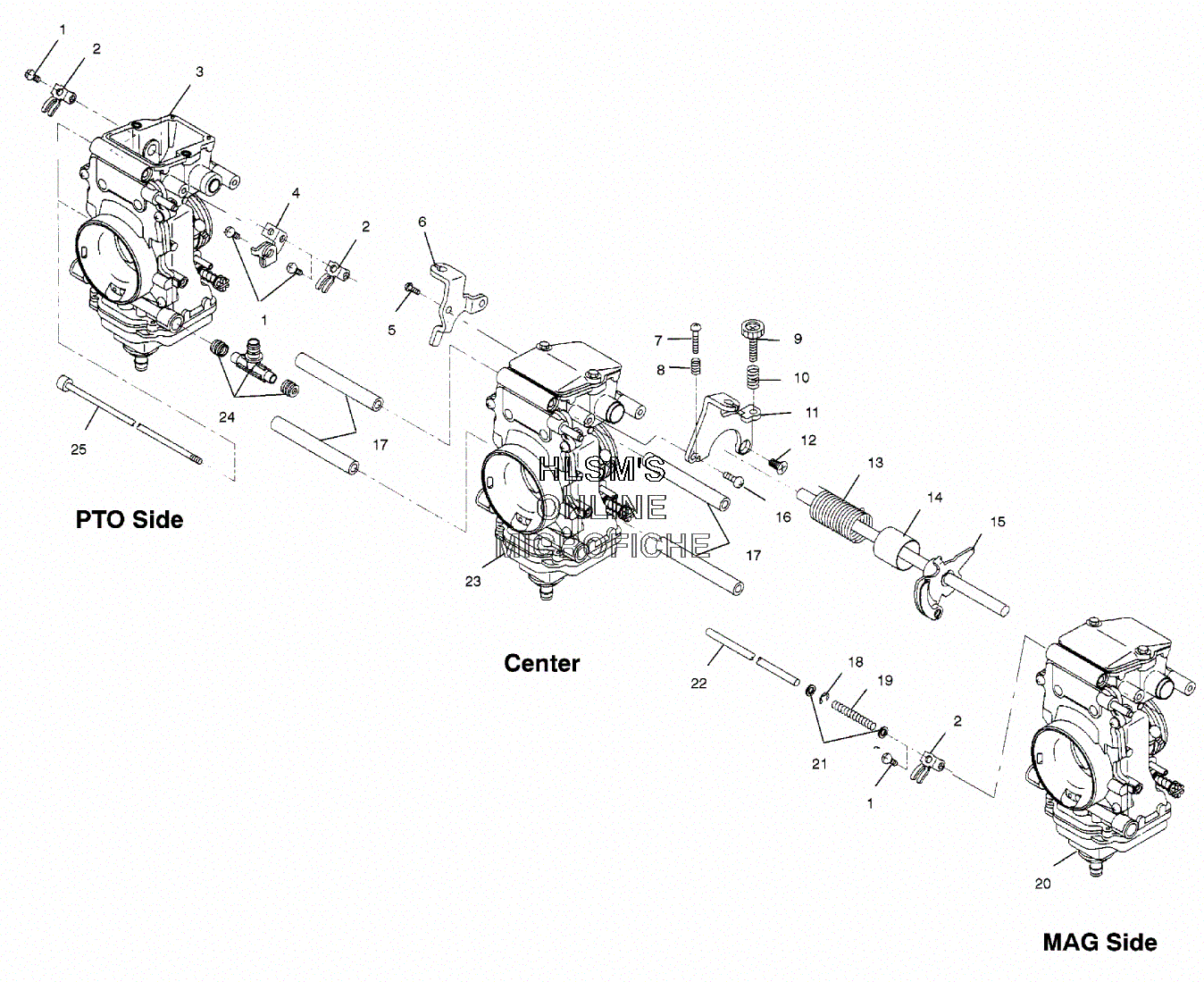

CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска
-
№АртикулНазвание
-
293131204 CARBURETOR, ASSY. (INCL. 1-25 AND ALL OF CARBURETOR PG. D2)CARBURETOR, ASSY. (INCL. 1-25 AND ALL OF CARBURETOR PG. D2)
-
13130833 SCREW, STARTERSCREW, STARTER
-
23130832 LEVER, STARTERLEVER, STARTER
-
43130819 LEVER, STARTERLEVER, STARTER
-
53130821 SCREW (CENTER SIDE)SCREW (CENTER SIDE)
-
63130820 BRACKET (CENTER SIDE)BRACKET (CENTER SIDE)
-
73130816 SCREW (CENTER SIDE)SCREW (CENTER SIDE)
-
83130817 SPRING (CENTER SIDE)SPRING (CENTER SIDE)
-
93130812 ADJUSTER (CENTER SIDE)ADJUSTER (CENTER SIDE)
-
103130811 SPRING (CENTER SIDE)SPRING (CENTER SIDE)
-
113130815 BRACKET (CENTER SIDE)BRACKET (CENTER SIDE)
-
123130810 SCREW (CENTER SIDE)SCREW (CENTER SIDE)
-
133130814 SPRINGSPRING
-
143130853 RINGRING
-
153131006 SHAFT ASSY.SHAFT ASSY.
-
163130809 SCREW (CENTER SIDE)SCREW (CENTER SIDE)
-
173131004 RINGRING
-
183130990 E-RINGE-RING
-
193130841 SPRING, STARTER SHAFTSPRING, STARTER SHAFT
-
213130988 PACKING, STARTER SHAFTPACKING, STARTER SHAFT
-
223131011 SHAFTSHAFT
-
243131008 NIPPLE ASSY.NIPPLE ASSY.
-
253131007 BOLTBOLT
