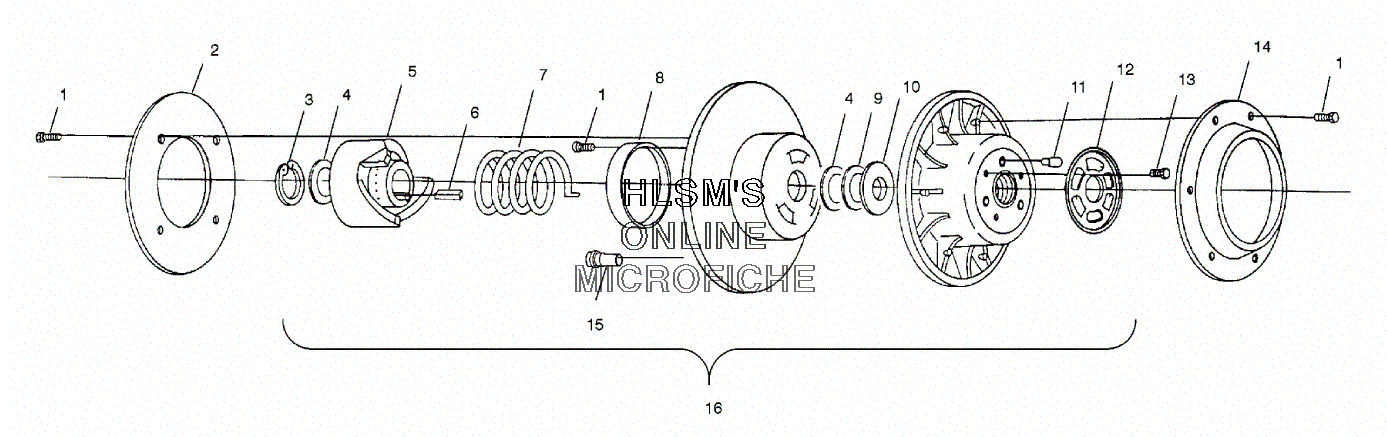

CLUTCH - DRIVEN для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
25243158 PLATE-DRIVEN, VENTEDPLATE-DRIVEN, VENTED
-
37714804 RING, RETAININGRING, RETAINING
-
47556804 WASHER (.030)WASHER (.030)
-
55131298 RAMP, DRIVEN, R12, MACHRAMP, DRIVEN, R12, MACH
-
67721128 KEY-1/4X3/16X2.75KEY-1/4X3/16X2.75
-
77041646 SPRING, CLUTCH (SILVER/BLUE)SPRING, CLUTCH (SILVER/BLUE)
-
83569803 BUSHING, D.U.BUSHING, D.U.
-
97555898 WASHER (.020)WASHER (.020)
-
97556076 WASHER (.025)WASHER (.025)
-
107555865 WASHER, DRIVE CLUTCH (.075)WASHER, DRIVE CLUTCH (.075)
-
115020653 PIN, CLUTCHPIN, CLUTCH
-
125222878 CAM, DRIVEN, ADJUSTABLECAM, DRIVEN, ADJUSTABLE
-
137515133 SCREWSCREW
-
145243157 CAP-DRIVEN, VENTEDCAP-DRIVEN, VENTED
-
155430466 BUTTON, RAMPBUTTON, RAMP
-
161321968 DRIVEN CLUTCH ASSY. (INCL. 1, 3, 4, 6, 8-13)DRIVEN CLUTCH ASSY. (INCL. 1, 3, 4, 6, 8-13)
