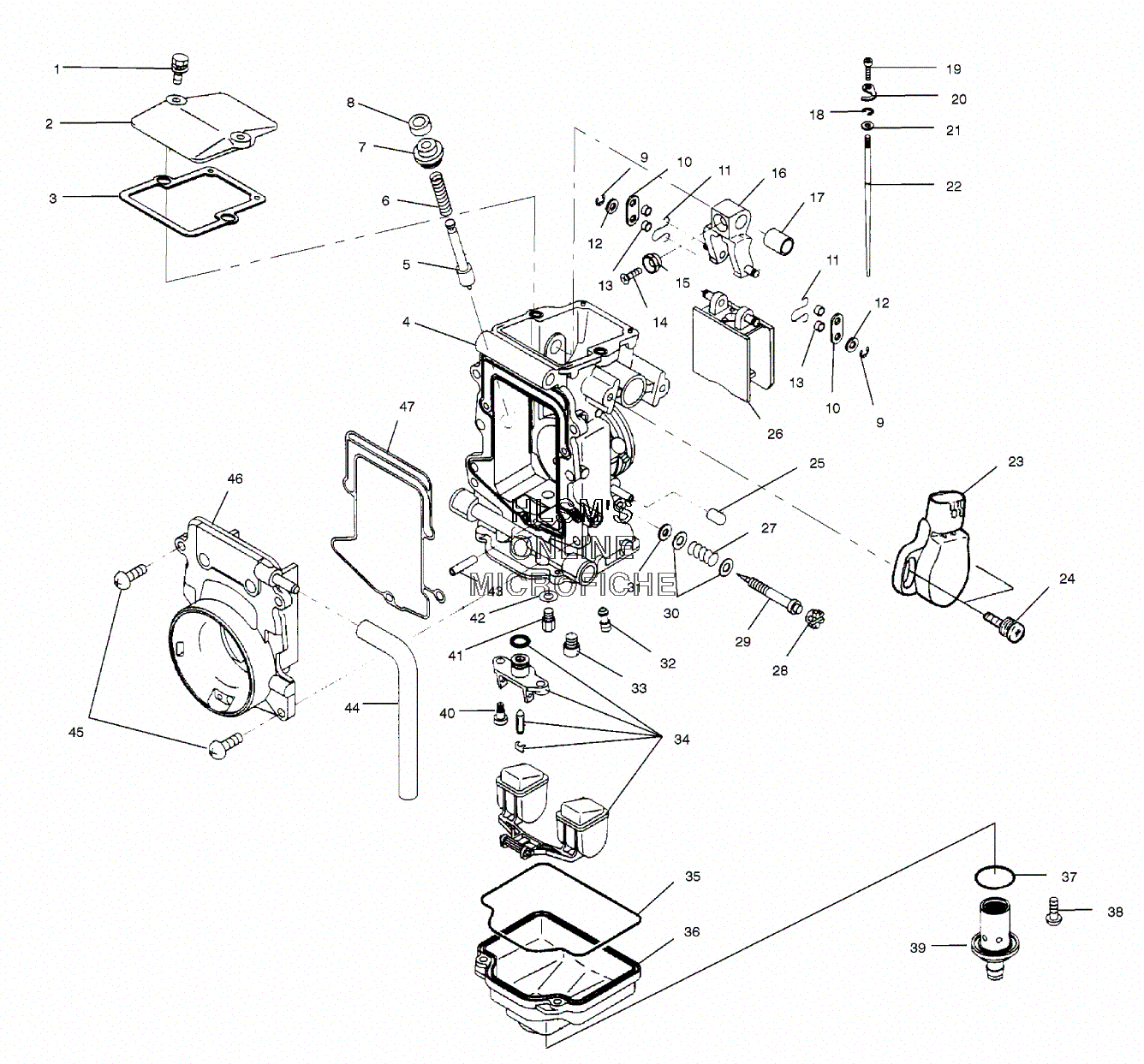

CARBURETOR ASSEMBLY для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска
-
№АртикулНазвание
-
13130951 SCREWSCREW
-
23130976 CAP-TOPCAP-TOP
-
33130871 GASKETGASKET
-
53130828 PLUNGER ASSY./258PLUNGER ASSY./258
-
63130829 SPRING, STARTERSPRING, STARTER
-
73130830 HOLDER, STARTER GUIDEHOLDER, STARTER GUIDE
-
83130831 CAP, STARTER (RUBBER)CAP, STARTER (RUBBER)
-
93130847 E-RINGE-RING
-
103130857 PLATEPLATE
-
113130856 CLIPCLIP
-
123130981 WASHER, PACKINGWASHER, PACKING
-
133130845 RINGRING
-
143130850 SCREW (CENTER AND MAG SIDE)SCREW (CENTER AND MAG SIDE)
-
143130854 SCREW (PTO SIDE)SCREW (PTO SIDE)
-
153130848 RING (CENTER AND MAG SIDE)RING (CENTER AND MAG SIDE)
-
163130849 LEVER ASSY. (PTO AND MAG SIDE)LEVER ASSY. (PTO AND MAG SIDE)
-
163130855 LEVER ASSY. (CENTER SIDE)LEVER ASSY. (CENTER SIDE)
-
173140032 RING (PTO SIDE)RING (PTO SIDE)
-
183130868 E-RINGE-RING
-
193130844 SCREWSCREW
-
203130843 PLATEPLATE
-
213130867 PACKINGPACKING
-
223131001 NEEDLE-JET (9DH06-54-3)NEEDLE-JET (9DH06-54-3)
-
233131009 SENSOR ASSY. (MAG SIDE)SENSOR ASSY. (MAG SIDE)
-
243131010 SCREW (MAG SIDE)SCREW (MAG SIDE)
-
253130479 CAPCAP
-
263131002 PISTON, VALVE 2.0PISTON, VALVE 2.0
-
273130836 SPRINGSPRING
-
283130986 CAPCAP
-
293130987 ADJUSTERADJUSTER
-
303130837 WASHERWASHER
-
313130835 PACKINGPACKING
-
323130629 JET, PILOT (#50)JET, PILOT (#50)
-
333130769 JET, STARTER #VM11/22 (#145)JET, STARTER #VM11/22 (#145)
-
343130977 FLOAT ASSY.FLOAT ASSY.
-
353130861 O-RING, FLOAT BOWLO-RING, FLOAT BOWL
-
363130858 FLOAT, BODYFLOAT, BODY
-
373130863 O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
383130824 SCREW, FLOAT BOWLSCREW, FLOAT BOWL
-
393130862 NIPPLE, DRAIN SCREWNIPPLE, DRAIN SCREW
-
403130860 SCREW, VALVE SEATSCREW, VALVE SEAT
-
413130144 JET, MAIN HX. HOOD (#440)JET, MAIN HX. HOOD (#440)
-
423130949 WASHERWASHER
-
433131205 JET, PILOT-AIR, 0.9JET, PILOT-AIR, 0.9
-
443131079 HOSE (PTO SIDE)HOSE (PTO SIDE)
-
443131080 HOSE (CENTER AND MAG SIDE)HOSE (CENTER AND MAG SIDE)
-
453130825 SCREW, AIR FUNNELSCREW, AIR FUNNEL
-
473130870 O-RING, AIR FUNNELO-RING, AIR FUNNEL
