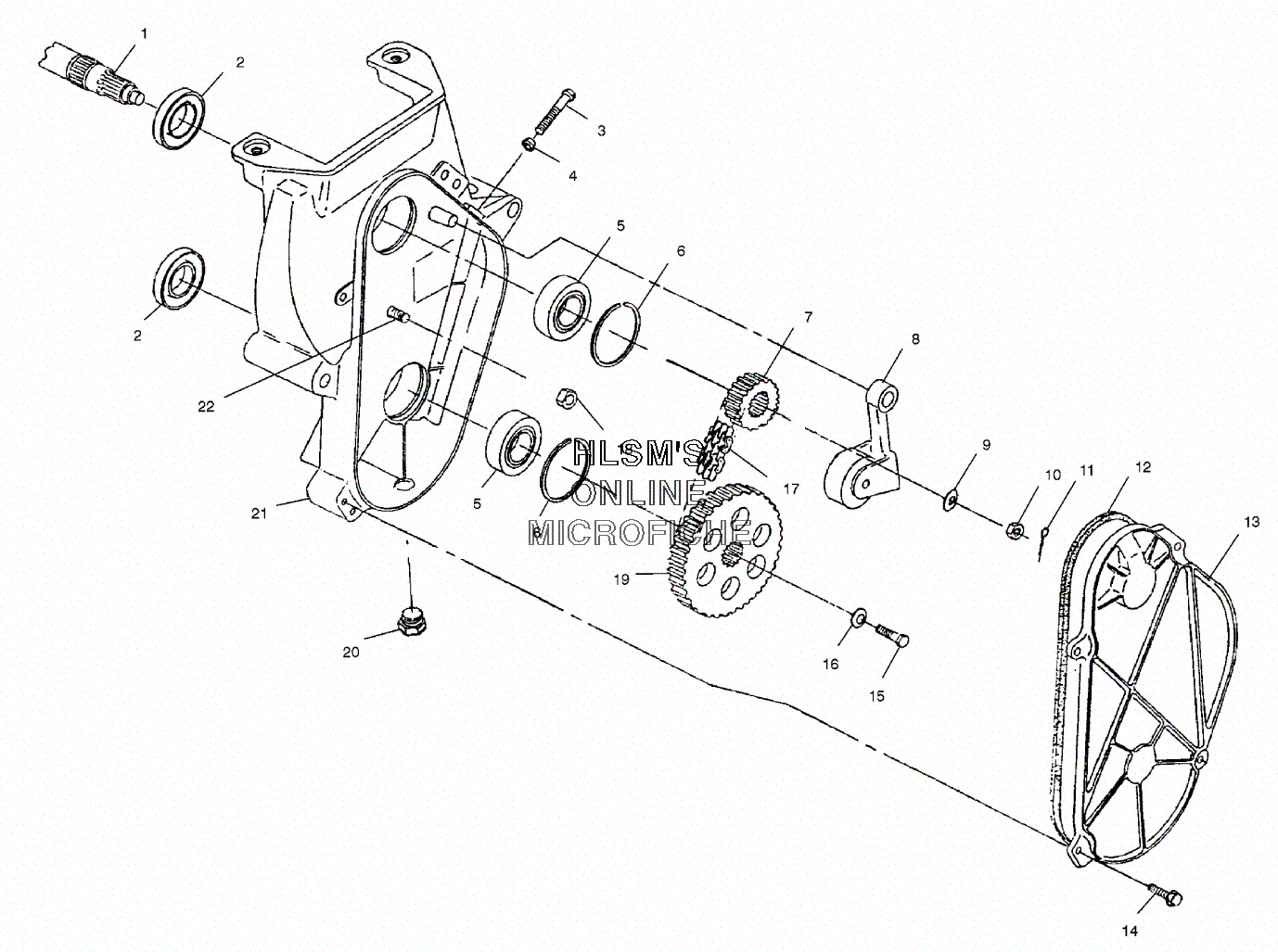

CHAINCASE ASSEMBLY для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска
-
№АртикулНазвание
-
23610030 SEAL, OILSEAL, OIL
-
37515551 SCREWSCREW
-
47542404 NUTNUT
-
53514309 BEARING, BALLBEARING, BALL
-
67718406 RING, RETAININGRING, RETAINING
-
73221101 SPROCKET, SPLINE (24 TEETH, 3/4W) HVSPROCKET, SPLINE (24 TEETH, 3/4W) HV
-
81332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
83553002 BEARINGBEARING
-
85630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
87558702 WASHER THRUSTWASHER THRUST
-
87662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
97571620 WASHER, SLOTTEDWASHER, SLOTTED
-
107542811 NUTNUT
-
117661401 COTTER PINCOTTER PIN
-
125411207 GASKET, CHAINCASE, LONGGASKET, CHAINCASE, LONG
-
135630691 COVER, CHAINCASECOVER, CHAINCASE
-
147512242 SCREWSCREW
-
157515350 SCREWSCREW
-
167571618 WASHERWASHER
-
173221115 CHAIN, HYVO, 23-149 70P 34WCHAIN, HYVO, 23-149 70P 34W
-
187542451 NUT, NYLOCNUT, NYLOC
-
193222108 SPROCKET (15/39TEETH, 3/4W) HYVOSPROCKET (15/39TEETH, 3/4W) HYVO
-
207052115 PLUGPLUG
-
215131455 CHAINCASE, VENTEDCHAINCASE, VENTED
-
227515477 BOLTBOLT
