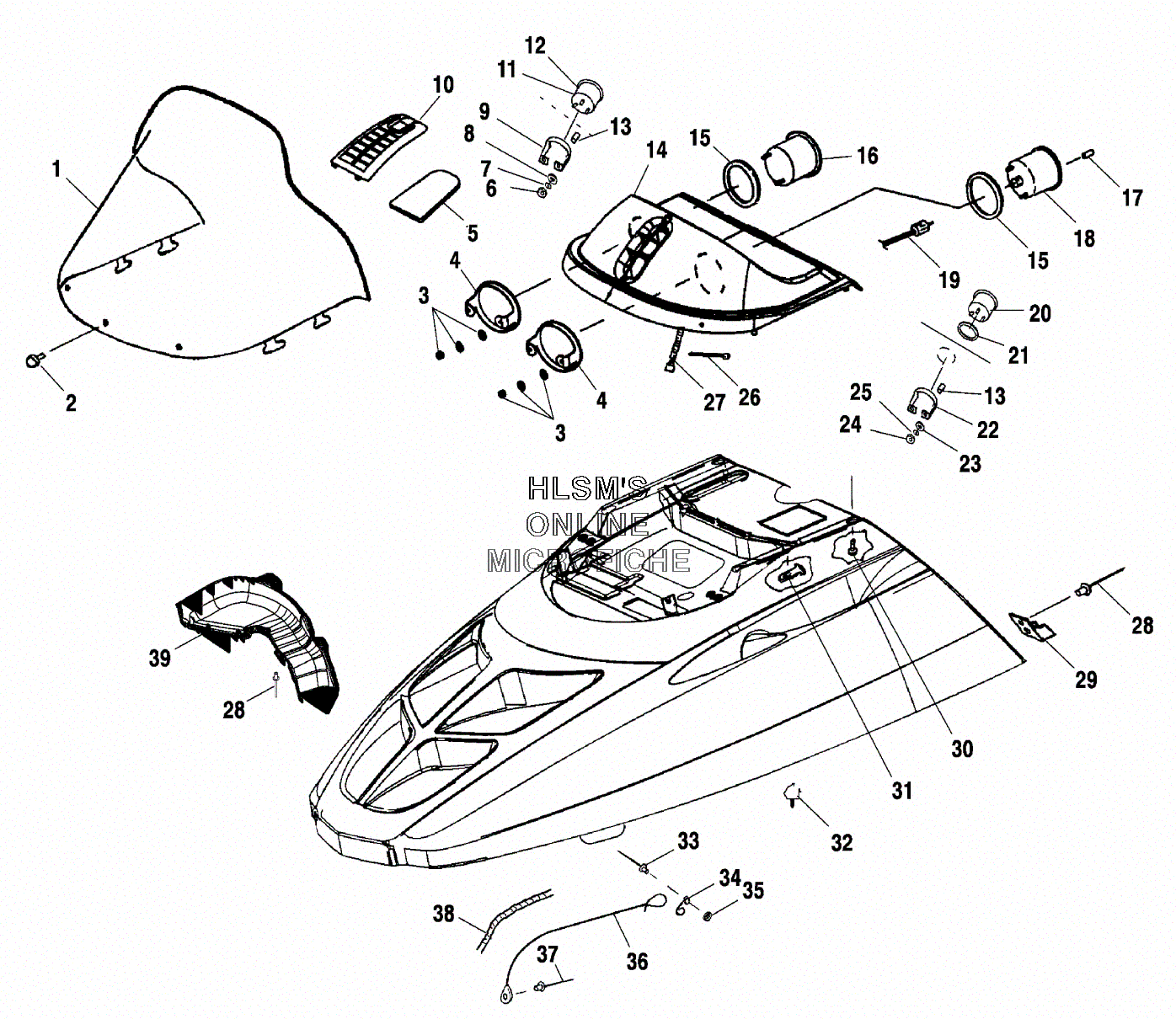

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 800 XCR (S01SB8AS) - 2001 года выпуска
-
№АртикулНазвание
-
15433165 WINDSHIELD, GEN 2, FLR, 14'' SMOKEWINDSHIELD, GEN 2, FLR, 14'' SMOKE
-
27621509 RIVET, PLASTI, LOC.RIVET, PLASTI, LOC.
-
33280158 NUTNUT
-
33280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
33280157 WASHER, FLATWASHER, FLAT
-
43280210 BRACKET, TACH/SPEEDO, 5''BRACKET, TACH/SPEEDO, 5''
-
55811821 FOAM, PREFILTER, SRPFOAM, PREFILTER, SRP
-
63280321 HEX NUT-NT0001HEX NUT-NT0001
-
77555868 WASHER, LOCK (S.S.)WASHER, LOCK (S.S.)
-
83280324 WASHER, FLATWASHER, FLAT
-
93280322 CLAMP, BACK, GAUGE, 2''CLAMP, BACK, GAUGE, 2''
-
105433419 COVER, INTAKE, INSTR, HOUSING, SRPCOVER, INTAKE, INSTR, HOUSING, SRP
-
113280315 GAUGE, ELECTRIC SHOCK, HYBGAUGE, ELECTRIC SHOCK, HYB
-
114030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
123280323 CUSHION, RUBBER 2''CUSHION, RUBBER 2''
-
133280228 SPACER, BRACKET (FUELGAUGE)SPACER, BRACKET (FUELGAUGE)
-
142632293 ASSY, HOUSING, SRP, HI LEVEL XCR (INCL. WARNING DECALS)ASSY, HOUSING, SRP, HI LEVEL XCR (INCL. WARNING DECALS)
-
153280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
163280308 TACH, 5'', 6 PULSE, W/FUEL LTTACH, 5'', 6 PULSE, W/FUEL LT
-
164030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
173280186 KNOB, TRIP ODOMETER, THD. (LEFT)KNOB, TRIP ODOMETER, THD. (LEFT)
-
183280304 SPEEDO ASSY, 5'', 120MPH, 90DEG.SPEEDO ASSY, 5'', 120MPH, 90DEG.
-
184030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
193280341 CABLE, SPEEDO, 90 IN.CABLE, SPEEDO, 90 IN.
-
203280226 FUELGAUGE, BACKLIT, 2''FUELGAUGE, BACKLIT, 2''
-
204060139 FUSEFUSE
-
213280230 CUSHION, FUELGAUGE (2'') RUBBERCUSHION, FUELGAUGE (2'') RUBBER
-
223280229 BRACKET, FUELGAUGE (2'')BRACKET, FUELGAUGE (2'')
-
233280231 WASHERWASHER
-
243280232 NUTNUT
-
253280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
267080138 STRAP PANDUITSTRAP PANDUIT
-
272460762 HARNESS, HEADLIGHTHARNESS, HEADLIGHT
-
287621334 RIVETRIVET
-
295430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
307517441 SCREWSCREW
-
315410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
327080886 CLIP, ROSEBUD (GRAY)CLIP, ROSEBUD (GRAY)
-
337661084 RIVETRIVET
-
345242893 CLIP, PIGTAILCLIP, PIGTAIL
-
357555904 BURR, RIVETBURR, RIVET
-
367080854 CABLE, HOOD, XCRCABLE, HOOD, XCR
-
367080764 CABLE, HOOD, HYB.CABLE, HOOD, HYB.
-
377621402 POP RIVETPOP RIVET
-
385521496-70 TUBING, CONVOLUTED HI TEMP, 70CMTUBING, CONVOLUTED HI TEMP, 70CM
-
395433268 DUCT, AIR HOOD, XCRDUCT, AIR HOOD, XCR
