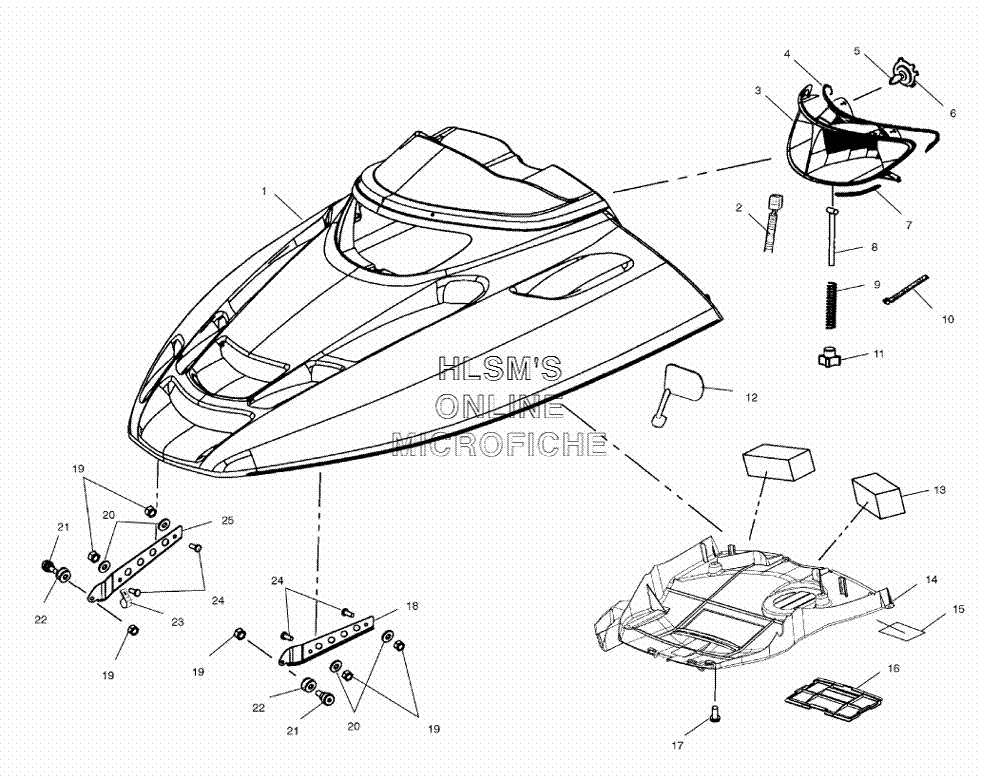

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска
-
№АртикулНазвание
-
12632343-341 ASSY, HOOD, MIRRORS SCV (SONIC BLUE) (INCL. FOAM AND FOIL)ASSY, HOOD, MIRRORS SCV (SONIC BLUE) (INCL. FOAM AND FOIL)
-
22460791 HARNESS, HEADLGHT EDGE COMMONHARNESS, HEADLGHT EDGE COMMON
-
32410132 HEADLAMP ASSY., 2-BULB EDGE (INCL. BULBS)HEADLAMP ASSY., 2-BULB EDGE (INCL. BULBS)
-
45812175 FOAM, HEADLIGHT SEAL EDGE (TOP)FOAM, HEADLIGHT SEAL EDGE (TOP)
-
52870448 BULB, QUARTZ. HEADLIGHTS INDYBULB, QUARTZ. HEADLIGHTS INDY
-
64032063 RETAINER, HEADLIGHTS BULBRETAINER, HEADLIGHTS BULB
-
75812174 FOAM, HEADLIGHT SEAL EDGE (BOTTOM)FOAM, HEADLIGHT SEAL EDGE (BOTTOM)
-
87517872 BOLT, TEE ADJUSTERBOLT, TEE ADJUSTER
-
97041954 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
107080138 CABLE TIECABLE TIE
-
117080887 KNOB, HEADLIGHT, ADJUST LOCKING BKNOB, HEADLIGHT, ADJUST LOCKING B
-
122632246-070 ASSY, MIRROR EDGE (LEFT/BLACK)ASSY, MIRROR EDGE (LEFT/BLACK)
-
122632247-070 ASSY, MIRROR EDGE (RIGHT/BLACK)ASSY, MIRROR EDGE (RIGHT/BLACK)
-
127556088 WASHERWASHER
-
127546703 NUT, METRICNUT, METRIC
-
135811793 FOAM, PREFILTERFOAM, PREFILTER
-
142632491 ASSY., PLENUM FOILASSY., PLENUM FOIL
-
145812324 FOIL, PLENUM EDGEFOIL, PLENUM EDGE
-
145811948 FOIL 4.5X1.0FOIL 4.5X1.0
-
157079197 DECAL SUSP. SET-UP, EDGEDECAL SUSP. SET-UP, EDGE
-
165433660 COVER HEADLIGHT ACCESSCOVER HEADLIGHT ACCESS
-
177512068 SCREWSCREW
-
185243567-067 HINGE (UPPER/LEFT/BLACK)HINGE (UPPER/LEFT/BLACK)
-
197542122 NUT, LOCKNUT, LOCK
-
207558301 WASHERWASHER
-
217512113 SCREWSCREW
-
225332403 SPACER, HINGESPACER, HINGE
-
237080683 CLAMP, HOSECLAMP, HOSE
-
247512240 BOLTBOLT
-
255243568-067 HINGE (UPPER/RIGHT/BLACK)HINGE (UPPER/RIGHT/BLACK)
