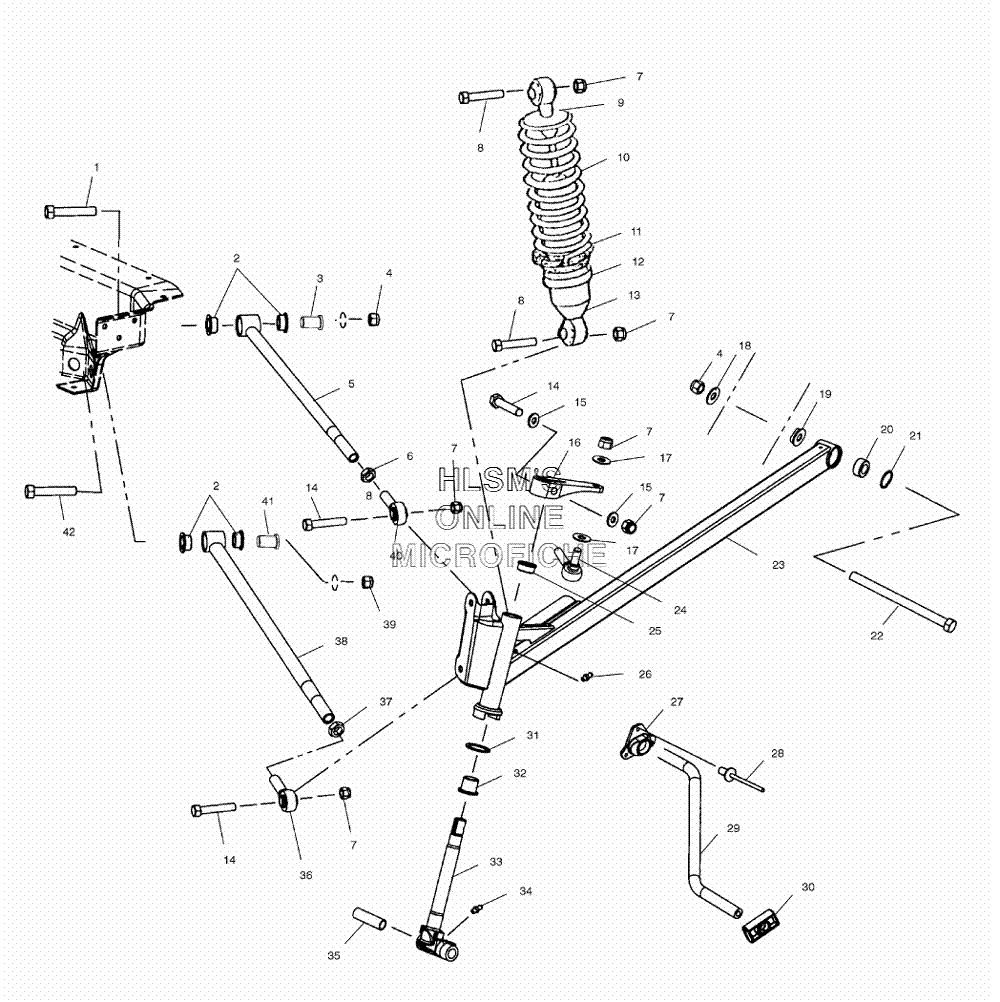

SUSPENSION - FRONT W/ SKI для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска
-
№АртикулНазвание
-
17512597 BOLTBOLT
-
25434036 BUSHING, RADIUS ROD PIVOT (INNER)BUSHING, RADIUS ROD PIVOT (INNER)
-
35132779 BUSHING-SHOULDERBUSHING-SHOULDER
-
47547066 NUT, NYLOKNUT, NYLOK
-
51820679-312 WELD, RADIUS ROD (UPPER/BLUE)WELD, RADIUS ROD (UPPER/BLUE)
-
67542520 NUT JAMNUT JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 BOLTBOLT
-
95630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
107041551-312 SHOCKSHOCK
-
115431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
121500063 RETAINER, SPRING, BODY (THREADED)RETAINER, SPRING, BODY (THREADED)
-
137041932 SHOCK, IFS NITREX 11.09X16.35SHOCK, IFS NITREX 11.09X16.35
-
147517583 SCREWSCREW
-
157555832 WASHERWASHER
-
165132728 ARM, STEERING MACHINED EDGEARM, STEERING MACHINED EDGE
-
177555797 WASHERWASHER
-
187555820 WASHERWASHER
-
195132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
207061042 BEARING, SPHERICAL, 7/16, PLASTICBEARING, SPHERICAL, 7/16, PLASTIC
-
217710437 RING, RETAININGRING, RETAINING
-
227512099 BOLTBOLT
-
231821165-312 ASSY, TRAILING ARM, SVC (INCL. 20,21) (LEFT/BLUE)ASSY, TRAILING ARM, SVC (INCL. 20,21) (LEFT/BLUE)
-
231821166-312 ASSY-TRAILING ARM,SVC (INCL. 20,21) (RIGHT/BLUE)ASSY-TRAILING ARM,SVC (INCL. 20,21) (RIGHT/BLUE)
-
247061057 ROD END RIGHT (SEE STEERING)ROD END RIGHT (SEE STEERING)
-
253573909 BUSHING, FLANGEBUSHING, FLANGE
-
267080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
275433234 BUSHING, TORSION BARBUSHING, TORSION BAR
-
287621477 RIVETRIVET
-
295244415-067 BAR, TORSION, 1/2, 42.5 EDGE (BLACK)BAR, TORSION, 1/2, 42.5 EDGE (BLACK)
-
305433884 SLIDE, TORSION BAR, 1/2SLIDE, TORSION BAR, 1/2
-
317556509 WASHER SPECIALWASHER SPECIAL
-
323574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
336230225-067 SHAFT, SPINDLE W/STEER STOP (BLACK)SHAFT, SPINDLE W/STEER STOP (BLACK)
-
347080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367061060 ROD END, RADIUS 1/2ROD END, RADIUS 1/2
-
377542711 NUT-JAMNUT-JAM
-
381820677-312 WELD, RADIUS ROD (LOWER/BLUE)WELD, RADIUS ROD (LOWER/BLUE)
-
397547065 NUT, NYLOCKNUT, NYLOCK
-
407061061 ROD END, RADIUS 7/16ROD END, RADIUS 7/16
-
415132780 BUSHING, SHOULDERBUSHING, SHOULDER
-
427512684 BOLTBOLT
