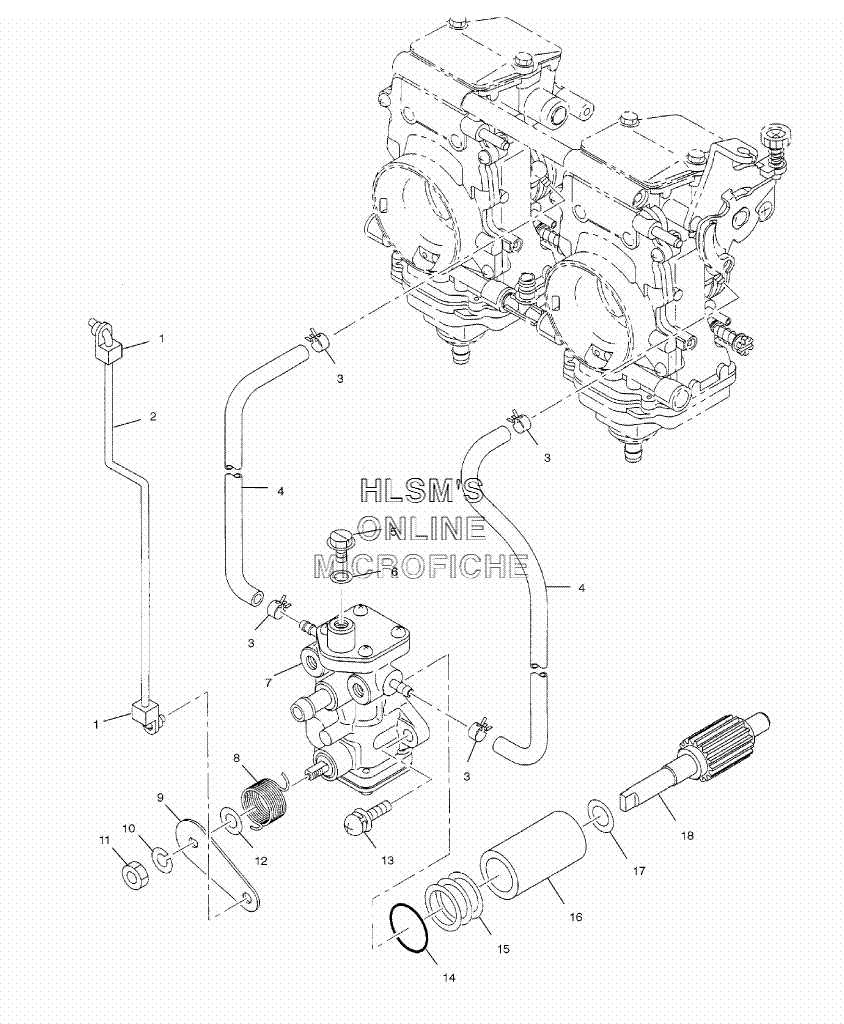

OIL PUMP ASSEMBLY для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска
-
№АртикулНазвание
-
13240234 BUSHING, LINKAGEBUSHING, LINKAGE
-
23087002 ROD, FORKROD, FORK
-
33083141 CLAMP, HOSECLAMP, HOSE
-
43085157 PIPE, VINYL 1PIPE, VINYL 1
-
53083125 SCREW, AIR VENTSCREW, AIR VENT
-
63083126 PACKINGPACKING
-
73086999 ASSY., OIL PUMP (INCL. 5-12,14)ASSY., OIL PUMP (INCL. 5-12,14)
-
83087001 SET, SPRING AND LEVER (INCL. 9)SET, SPRING AND LEVER (INCL. 9)
-
93087000 SET, SPRING AND LEVERSET, SPRING AND LEVER
-
103083121 WASHER, SPRINGWASHER, SPRING
-
113083120 NUTNUT
-
123083445 COLLAR, CAMSHAFTCOLLAR, CAMSHAFT
-
133083783 SCREW AND WASHERSCREW AND WASHER
-
143083127 O-RINGO-RING
-
153083671 SPACER #1 (.15MM)SPACER #1 (.15MM)
-
153083672 SPACER #2 (.3MM)SPACER #2 (.3MM)
-
153083673 SPACER #3 (.6MM)SPACER #3 (.6MM)
-
163083353 BUSHING (OIL PUMP)BUSHING (OIL PUMP)
-
173083130 SPACERSPACER
-
183083131 GEAR, SMALL OIL PUMPGEAR, SMALL OIL PUMP
