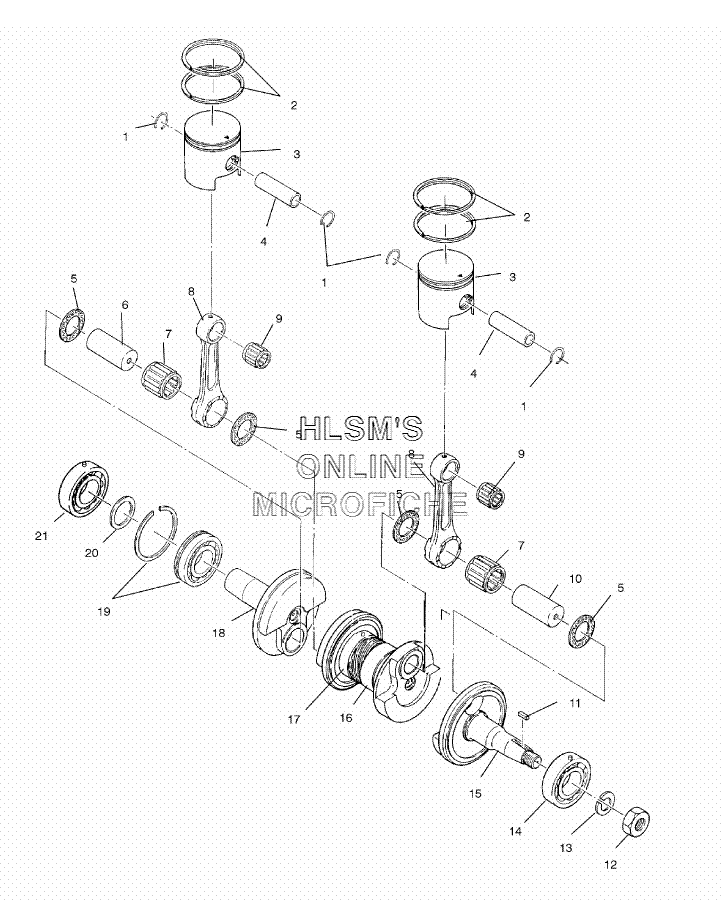

PISTON AND CRANKSHAFT для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска
-
№АртикулНазвание
-
13083839 CLIP, PISTON PINCLIP, PISTON PIN
-
23084342 RING, PISTON STD. (2) (STANDARD)RING, PISTON STD. (2) (STANDARD)
-
23084343 RING, PISTON (OPT) (0.25MM/.010'' O/S) (OPT)RING, PISTON (OPT) (0.25MM/.010'' O/S) (OPT)
-
23084344 RING, PISTON (OPT) (0.50MM/.020'' O/S) (OPT)RING, PISTON (OPT) (0.50MM/.020'' O/S) (OPT)
-
33084339 PISTON (STANDARD)PISTON (STANDARD)
-
33084340 PISTON (OPT) (0.25MM/.010'' O/S) (OPT)PISTON (OPT) (0.25MM/.010'' O/S) (OPT)
-
33084341 PISTON (OPT) (0.50MM/.020'' O/S) (OPT)PISTON (OPT) (0.50MM/.020'' O/S) (OPT)
-
43083858 PIN, PISTONPIN, PISTON
-
53083277 SPACER (CRANKPIN)SPACER (CRANKPIN)
-
63083456 PIN, CRANK, 2 (57MM)PIN, CRANK, 2 (57MM)
-
73085628 BEARING, LARGE ENDBEARING, LARGE END
-
83083252 ROD, CONNECTINGROD, CONNECTING
-
93083216 BEARING, SMALL ENDBEARING, SMALL END
-
103083233 PIN, CRANK (56MM)PIN, CRANK (56MM)
-
113080130 KEY WOODRUFFKEY WOODRUFF
-
123083093 NUTNUT
-
133083094 WASHER, SPRINGWASHER, SPRING
-
143086878 BEARING, BALLBEARING, BALL
-
153086997 CRANKSHAFT (INCL. 5-8,10-18)CRANKSHAFT (INCL. 5-8,10-18)
-
153086835 CRANKSHAFT 1 (MAG SIDE)CRANKSHAFT 1 (MAG SIDE)
-
163083713 CRANKSHAFT 2 (CENTER) (INCL. 6,10)CRANKSHAFT 2 (CENTER) (INCL. 6,10)
-
173084601 BEARING, BALLBEARING, BALL
-
183085202 CRANKSHAFT 3 (PTO SIDE)CRANKSHAFT 3 (PTO SIDE)
-
193085204 BALL BEARINGBALL BEARING
-
203085203 SPACERSPACER
-
213085205 BALL BEARINGBALL BEARING
