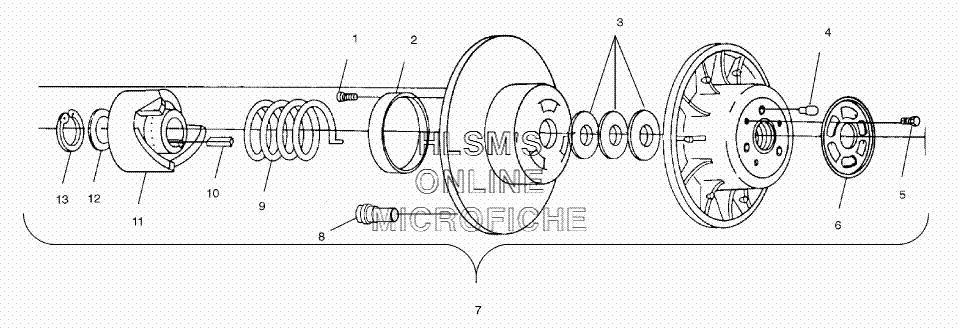

CLUTCH - DRIVEN для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
23569803 BUSHING, D.U.BUSHING, D.U.
-
37556804 WASHER (.03)WASHER (.03)
-
37556076 WASHER (.025)WASHER (.025)
-
37555898 WASHER (.02)WASHER (.02)
-
37555865 WASHER, DRIVE CLUTCH (.075)WASHER, DRIVE CLUTCH (.075)
-
45020653 PIN, CLUTCHPIN, CLUTCH
-
57515133 SCREWSCREW
-
65222878 CAM, DRIVEN ADJUSTABLECAM, DRIVEN ADJUSTABLE
-
71321927 DRIVEN CLUTCH ASSY. (BSC, 204 W/B) (INCL. 1, 8, 10, 12, 13)DRIVEN CLUTCH ASSY. (BSC, 204 W/B) (INCL. 1, 8, 10, 12, 13)
-
85430466 BUTTON, RAMPBUTTON, RAMP
-
97041646 SPRING, CLUTCH (SILVER/BLUE)SPRING, CLUTCH (SILVER/BLUE)
-
107721103 KEY SQUAREKEY SQUARE
-
115131294 RAMP, DRIVEN MACHRAMP, DRIVEN MACH
-
127556804 WASHERWASHER
-
137714804 RING, RETAININGRING, RETAINING
