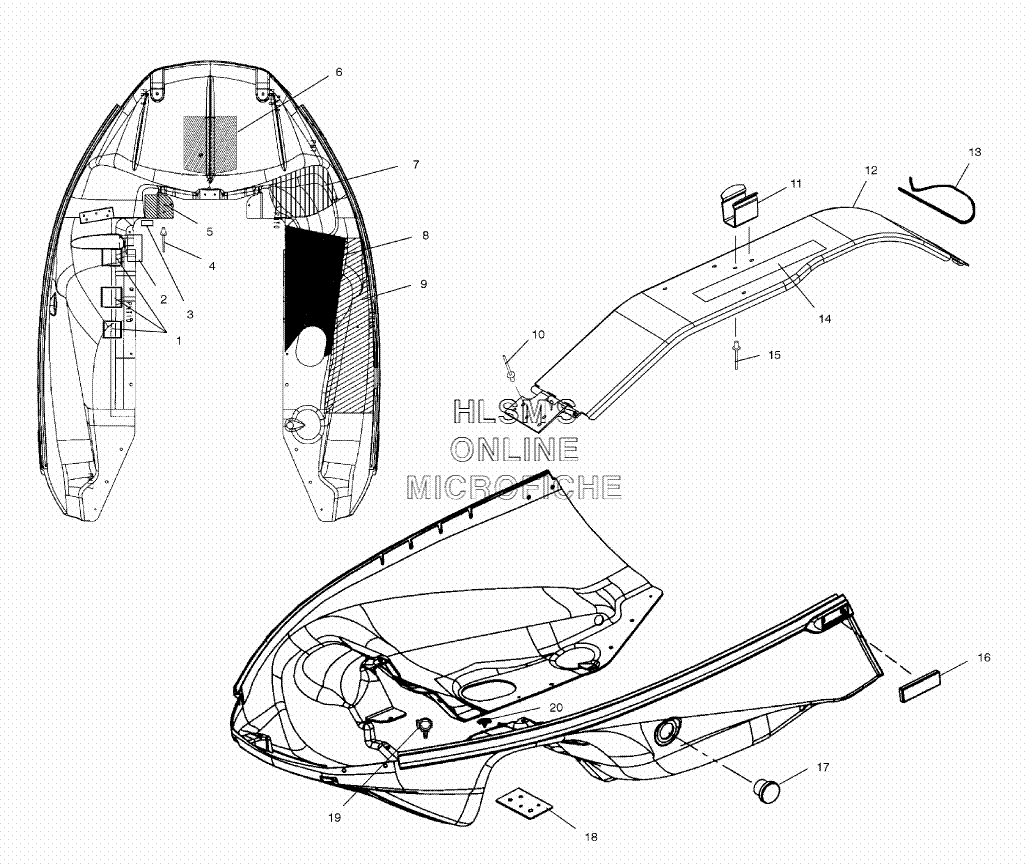

NOSEPAN ASSEMBLY #1 для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска
-
№АртикулНазвание
-
17670130 SPEED, CLIP ''U'' TYPE (C-53791-014)SPEED, CLIP ''U'' TYPE (C-53791-014)
-
25811948 FOILFOIL
-
37080963 RETAIN ''J'' CLPRETAIN ''J'' CLP
-
47621435 RIVETRIVET
-
55812020 FOIL, TAPEFOIL, TAPE
-
65812036 FOIL, NOSEPANFOIL, NOSEPAN
-
75812271 FOIL, SHOCK TOWER COVERFOIL, SHOCK TOWER COVER
-
85812019 FOIL, TAPE (LOWER) (RIGHT)FOIL, TAPE (LOWER) (RIGHT)
-
95812018 FOIL, TAPE (UPPER) (RIGHT)FOIL, TAPE (UPPER) (RIGHT)
-
107621402 POP RIVETPOP RIVET
-
115222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
121013069 CLUTCH GUARD ASSY.CLUTCH GUARD ASSY.
-
137080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
147075350 DECAL 97-99 ENGINE/CLUTCHDECAL 97-99 ENGINE/CLUTCH
-
157621429 RIVETRIVET
-
162670134 REFLECTOR ASSY. (AMBER)REFLECTOR ASSY. (AMBER)
-
175433926 PLUG, OBLONGPLUG, OBLONG
-
185211722 PLATE, BACKERPLATE, BACKER
-
194020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
207670131 PLUG, NYLONPLUG, NYLON
