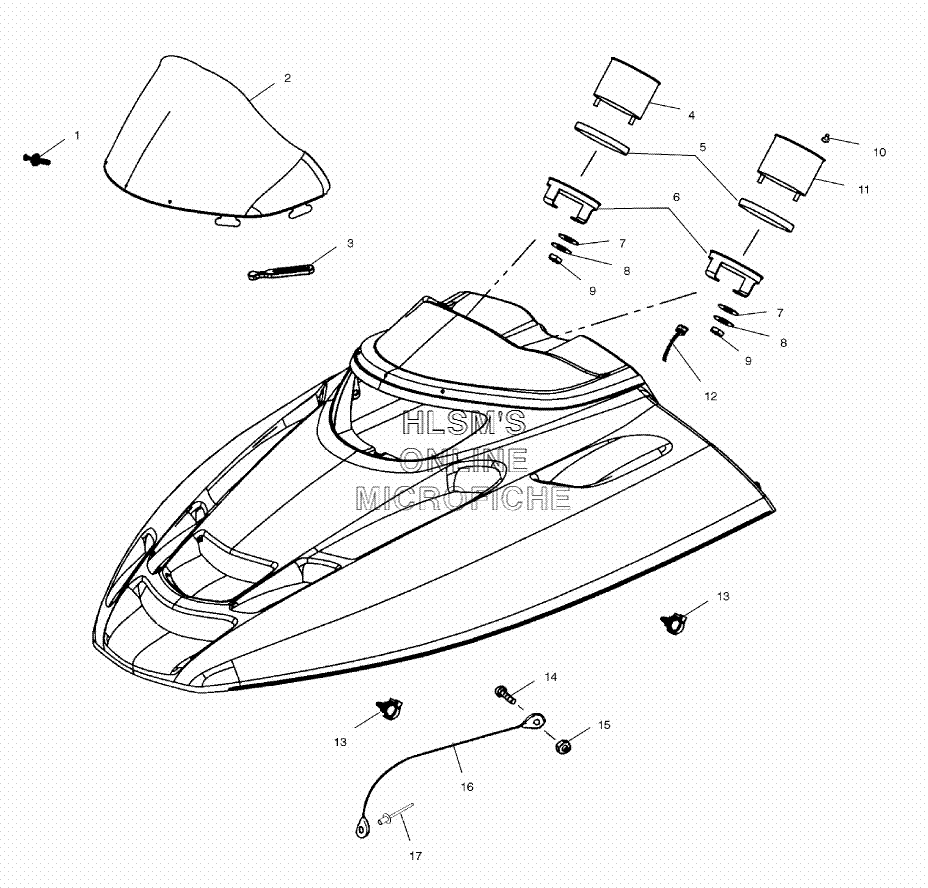

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCRIVET, PLASTI LOC
-
25433517 WINDSHIELD, 15''FLR SMK EDGEWINDSHIELD, 15''FLR SMK EDGE
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280329 TACH, 6 P, WHITE W/FUEL LTTACH, 6 P, WHITE W/FUEL LT
-
44030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
53280209 CUSHION, TACH/SPEEDO RUBBERCUSHION, TACH/SPEEDO RUBBER
-
63280210 BRACKET, TACH/SPEEDO 5''BRACKET, TACH/SPEEDO 5''
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER THD. (LEFT)KNOB, TRIP ODOMETER THD. (LEFT)
-
113280348 SPEEDO, 5'' 120MPH (WHITE W/ORANGE)SPEEDO, 5'' 120MPH (WHITE W/ORANGE)
-
114030015 BULB, TAILLIGHT/TACH/SPEEDOBULB, TAILLIGHT/TACH/SPEEDO
-
123280385 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
134020139 CLIP, PLASTICCLIP, PLASTIC
-
147512018 SCREWSCREW
-
157541925 NUT, NYLOCKNUT, NYLOCK
-
167080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
177661637 RIVET, INTERLOCKRIVET, INTERLOCK
