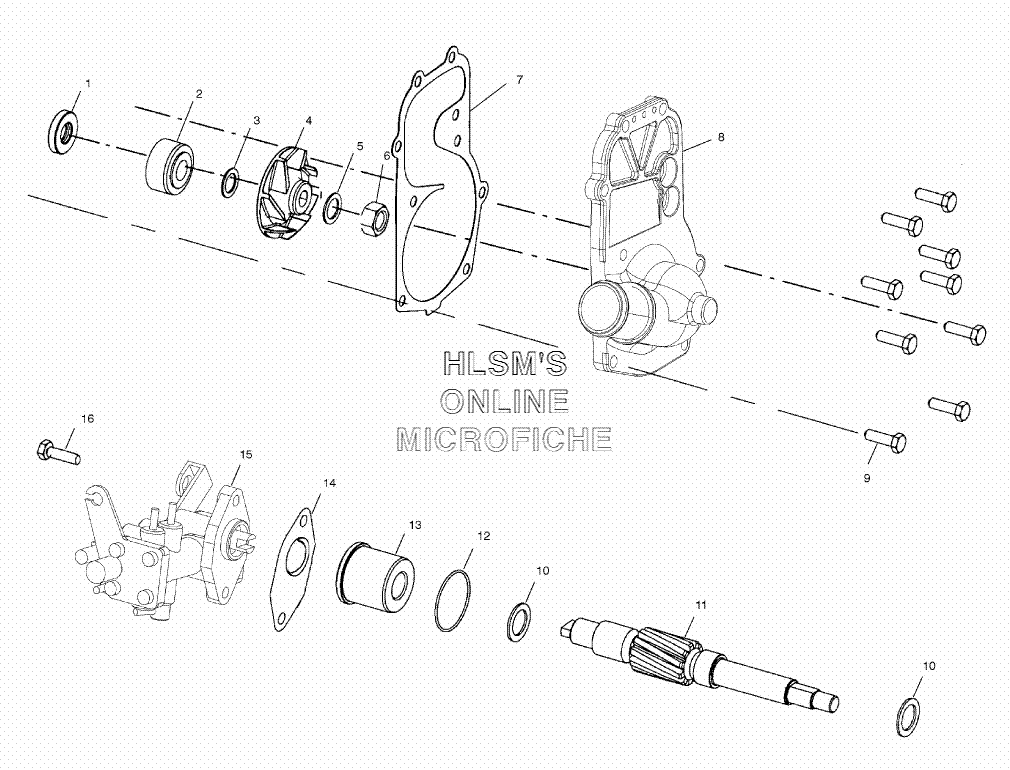

WATER PUMP/OIL PUMP для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S (ARS)SEAL, TYPE S (ARS)
-
23610067 SEAL, WATERPUMPSEAL, WATERPUMP
-
37556006 WASHER, FLATWASHER, FLAT
-
45432330 IMPELLER, WATERPUMPIMPELLER, WATERPUMP
-
57555874 WASHER, FLATWASHER, FLAT
-
67546804 NUT, HEX NYLOCKNUT, HEX NYLOCK
-
75811601 GASKET, WATERPUMP COVERGASKET, WATERPUMP COVER
-
85630920 COVER, WATERPUMP HI FLOWCOVER, WATERPUMP HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115131855 DRIVESHAFT, WATER/OIL PUMPDRIVESHAFT, WATER/OIL PUMP
-
125411196 O-RINGO-RING
-
135010391 BEARNG, PUMP SHAFT FLANGEDBEARNG, PUMP SHAFT FLANGED
-
145811789 GASKET, OIL PUMPGASKET, OIL PUMP
-
152540097 OIL PUMP ASSY.OIL PUMP ASSY.
