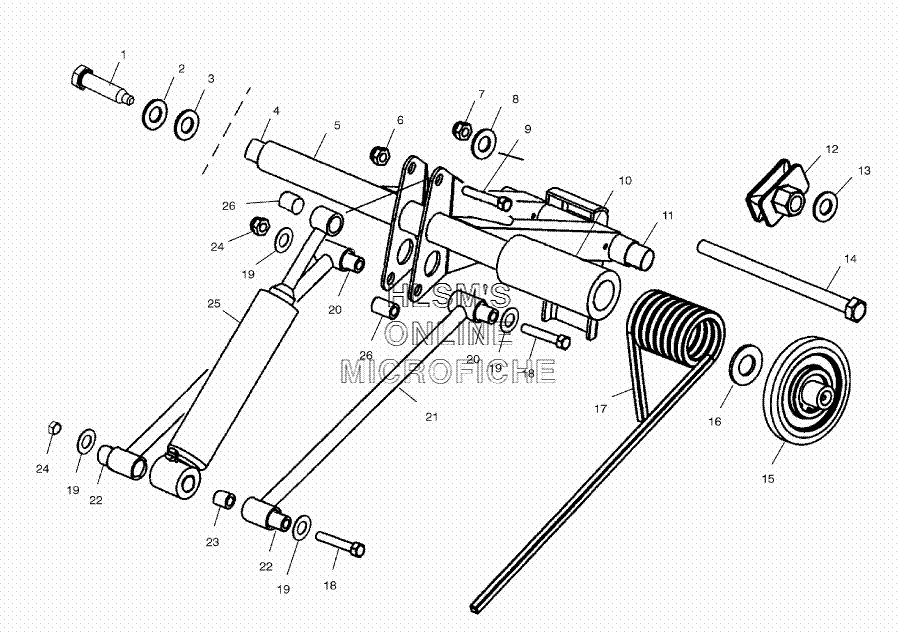

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45131450 SHAFTSHAFT
-
51541670-293 WELD TORQUE ARM (RED) (REAR)WELD TORQUE ARM (RED) (REAR)
-
57080424 FITTING, LUBE.FITTING, LUBE.
-
67542439 NUT, NYLOCKNUT, NYLOCK
-
77547064 NUT, NYLOCKNUT, NYLOCK
-
87558402 WASHER FLATWASHER FLAT
-
97512410 BOLTBOLT
-
105434337 SLEEVE, TORSION SPRING RMKSLEEVE, TORSION SPRING RMK
-
115333997 SHAFTSHAFT
-
125432983 ROLLER, SPRING ADJ SQUAREROLLER, SPRING ADJ SQUARE
-
137080394 CLIP, PUSH ONCLIP, PUSH ON
-
147517908 SCREWSCREW
-
151541285 WHEEL CARRIER W/COLLARWHEEL CARRIER W/COLLAR
-
167556301 BUSHINGBUSHING
-
177041627-067 SPRING, TORSION (LEFT) (BLACK) (.347/47)SPRING, TORSION (LEFT) (BLACK) (.347/47)
-
177041628-067 SPRING, TORSION (RIGHT) (BLACK) (.347/47)SPRING, TORSION (RIGHT) (BLACK) (.347/47)
-
187515496 BOLTBOLT
-
197555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
205133101 BUSHINGBUSHING
-
211541631-067 WELD, SHOCK ROD 13'' (BLACK)WELD, SHOCK ROD 13'' (BLACK)
-
225132391 BUSHINGBUSHING
-
235333905 SLEEVESLEEVE
-
247547025 NUT, NYLOCKNUT, NYLOCK
-
257042058 SHOCK, RT ARVIN EDGE RMK SEL.SHOCK, RT ARVIN EDGE RMK SEL.
-
265010422 BUSHINGBUSHING
-
265430537 BUSHINGBUSHING
