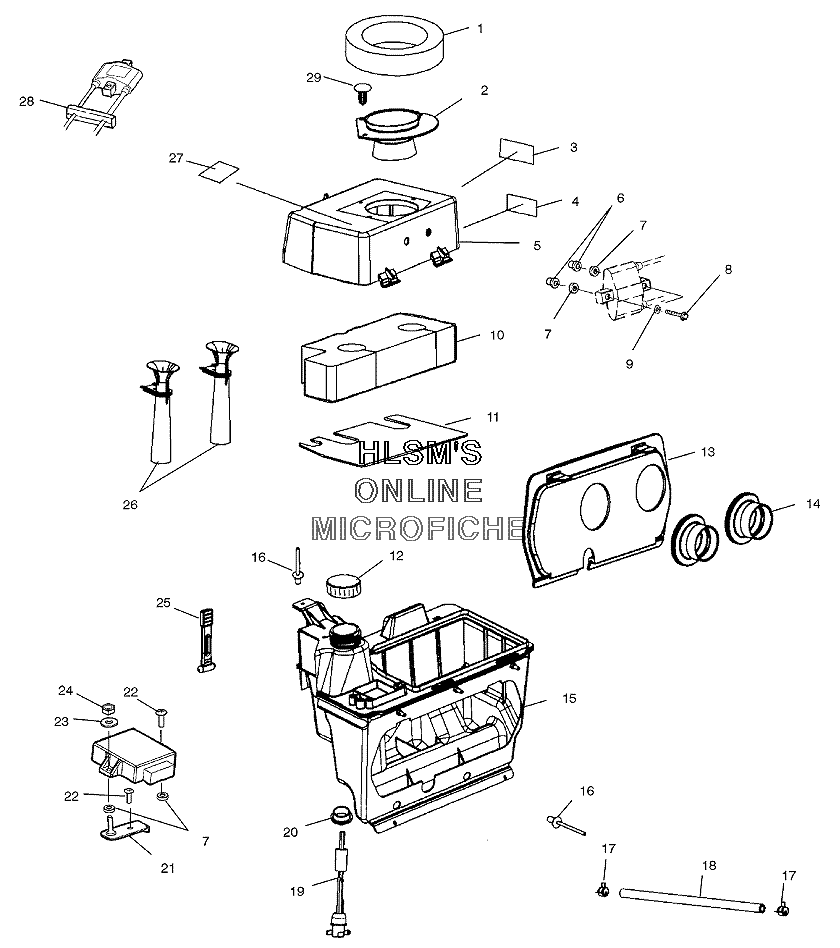

AIR BOX для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска
-
№АртикулНазвание
-
15811983 FOAM, CHIMNEYFOAM, CHIMNEY
-
25433734 DUCT AIR INLETDUCT AIR INLET
-
37073820 DECAL, ADJUST DRIVEN CLUTCHDECAL, ADJUST DRIVEN CLUTCH
-
47073426 DECAL, GREASINGDECAL, GREASING
-
51253324 AIR SILENCER COVER, ASSY. (INCL. 2, 3, 4, 27, 29)AIR SILENCER COVER, ASSY. (INCL. 2, 3, 4, 27, 29)
-
67547103 NUT, WELLNUT, WELL
-
77555932 WASHER, NYLONWASHER, NYLON
-
87517610 SCREWSCREW
-
97552604 WASHERWASHER
-
105811979 FOAM, AIRBOX PLATEFOAM, AIRBOX PLATE
-
115433665 PLATE, INTAKE EDGEPLATE, INTAKE EDGE
-
121240094 CAP OIL, VENTED/CUSTOM COLORCAP OIL, VENTED/CUSTOM COLOR
-
135433690 PLATE, CARBURETOR ADAPTERPLATE, CARBURETOR ADAPTER
-
145411676 BOOT, CARBURETOR MIKUNI TM40BOOT, CARBURETOR MIKUNI TM40
-
151253336 AIR SILENCER, ASSY.AIR SILENCER, ASSY.
-
167621472 RIVETRIVET
-
177080307 CLAMP, HOSECLAMP, HOSE
-
188450003-1525 LINE, FUEL (1/4 ID/1525 CM.)LINE, FUEL (1/4 ID/1525 CM.)
-
194010224 FITTING OIL SENDERFITTING OIL SENDER
-
207052305 GROMMET OIL SENDERGROMMET OIL SENDER
-
211013201 WELD BRACKET KOKUSAN CDI TPSWELD BRACKET KOKUSAN CDI TPS
-
227512098 SCREWSCREW
-
237555746 WASHERWASHER
-
247541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
255433150 STRAPSTRAP
-
265433662 TUBE, INTAKE (OUTER)TUBE, INTAKE (OUTER)
-
277075351 DECAL, CAUTIONDECAL, CAUTION
-
287080471 CLIP, IGNITION CABLECLIP, IGNITION CABLE
-
297670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
