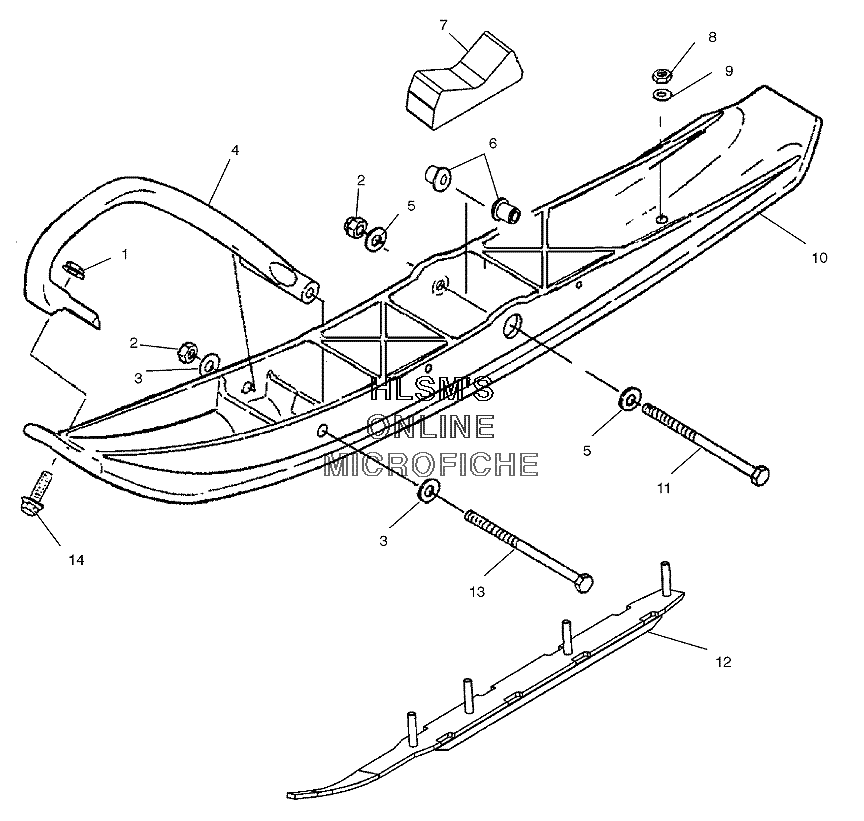

SKI ASSEMBLY для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-216 TOE PLASTIC SKI (S/YELLOW)TOE PLASTIC SKI (S/YELLOW)
-
45434165-070 TOE PLASTIC SKI (BLACK)TOE PLASTIC SKI (BLACK)
-
57556130 WASHERWASHER
-
65132637 BUSHING METAL (.390 ID)BUSHING METAL (.390 ID)
-
75412018 STOP, RUBBERSTOP, RUBBER
-
87542324 NUT, NYLOKNUT, NYLOK
-
97556175 WASHERWASHER
-
105433873-070 COMP SKI ASSY. BLANK SERVICE (BLACK)COMP SKI ASSY. BLANK SERVICE (BLACK)
-
117517968 SCREW HEXAGON/CAP-YSCREW HEXAGON/CAP-Y
-
121821215 WELD, SKAG DUAL CBD (BLACK)WELD, SKAG DUAL CBD (BLACK)
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
