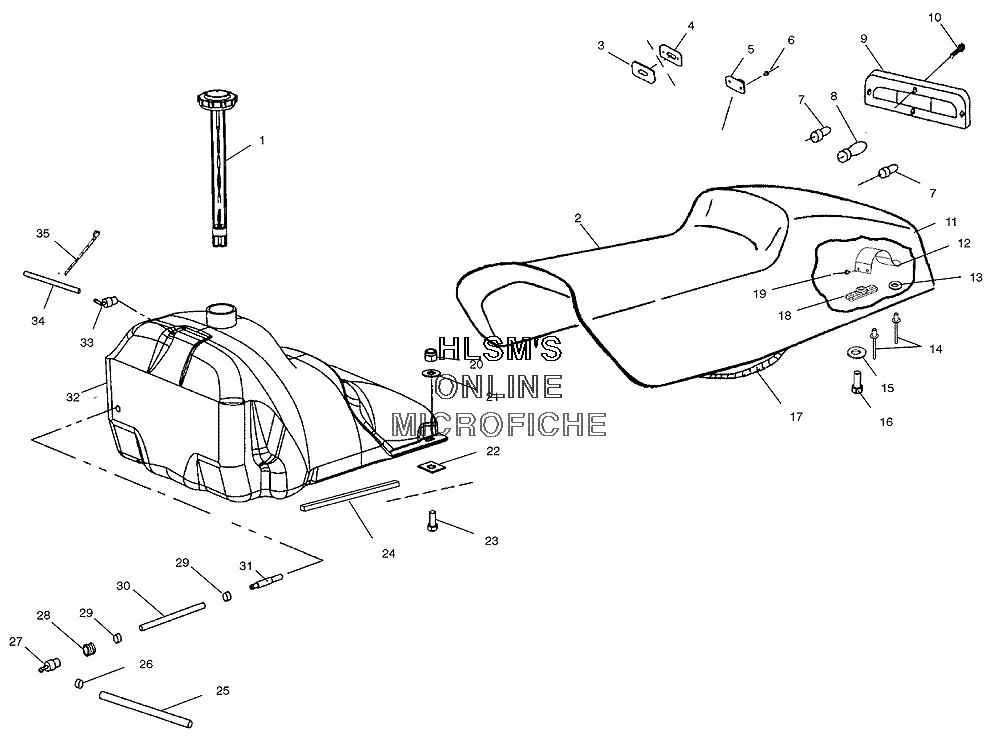

SEAT W/ GAS TANK ASSEMBLY для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска
-
№АртикулНазвание
-
11240066 FUEL CAP, 12 GAL W/GAUGEFUEL CAP, 12 GAL W/GAUGE
-
22682755 SEAT, ASSY. EDGE (STD) (BLACK)SEAT, ASSY. EDGE (STD) (BLACK)
-
22682756 COVER, ASSY. GEN II (STD) (BLACK)COVER, ASSY. GEN II (STD) (BLACK)
-
22682752 SEAT, ASSY. EDGE (STD) (RED)SEAT, ASSY. EDGE (STD) (RED)
-
22682753 SEAT COVER, ASSY. EDGE (STD) (RED)SEAT COVER, ASSY. EDGE (STD) (RED)
-
22682833 SEAT, ASSY. EDGE X (RED)SEAT, ASSY. EDGE X (RED)
-
22682834 COVER, ASSY. EDGE X (RED)COVER, ASSY. EDGE X (RED)
-
22682750 SEAT, ASSY. EDGE X (STD) (BLUE)SEAT, ASSY. EDGE X (STD) (BLUE)
-
22682751 COVER, ASSY. EDGE X (STD) (BLUE)COVER, ASSY. EDGE X (STD) (BLUE)
-
37080550 GROMMET RELATCH, 1" BOTTOMGROMMET RELATCH, 1" BOTTOM
-
47080549 GROMMET RELATCH, 1" TOPGROMMET RELATCH, 1" TOP
-
57080548 TWISTLOCK RELATCH, 1" W/HOLETWISTLOCK RELATCH, 1" W/HOLE
-
67621337 RIVETRIVET
-
74030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
84030045 BULBBULB
-
95430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
107511840 SCREWSCREW
-
115433341 HOUSING TAILLIGHTHOUSING TAILLIGHT
-
125243185 RETAINER CLIP, TOOL POUCHRETAINER CLIP, TOOL POUCH
-
137555727 WASHERWASHER
-
147621319 RIVETRIVET
-
157558301 WASHER, FLATWASHER, FLAT
-
167512232 BOLTBOLT
-
172460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
185631194 NUT SEATNUT SEAT
-
197621472 RIVETRIVET
-
207542122 NUT NYLOKNUT NYLOK
-
217555960 WASHER, FLATWASHER, FLAT
-
227670021 NUT, SPEEDNUT, SPEED
-
237512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
245810947 FOAM, SEALFOAM, SEAL
-
258350018-600 TUBING, ETHER ERETHANE (160CM)TUBING, ETHER ERETHANE (160CM)
-
267080307 CLAMP, HOSECLAMP, HOSE
-
277052269 FITTING 5/16"/ 3/8 STRAIGHTFITTING 5/16"/ 3/8 STRAIGHT
-
285432981 GROMMET, NITRILE (1/2")GROMMET, NITRILE (1/2")
-
297080768 RING COMPRESSIONRING COMPRESSION
-
308350020-600 FUEL LINE, ETHER (3/8")FUEL LINE, ETHER (3/8")
-
317052215 PICK-UP, FUEL W/MESHPICK-UP, FUEL W/MESH
-
322520263 FUEL, TANK ASSY. EDGE (INCL. 31-33)FUEL, TANK ASSY. EDGE (INCL. 31-33)
-
337052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
348450061-600 LINE, FUELLINE, FUEL
-
357080804 CABLE TIE RELEASABLE (5 1/2")CABLE TIE RELEASABLE (5 1/2")
