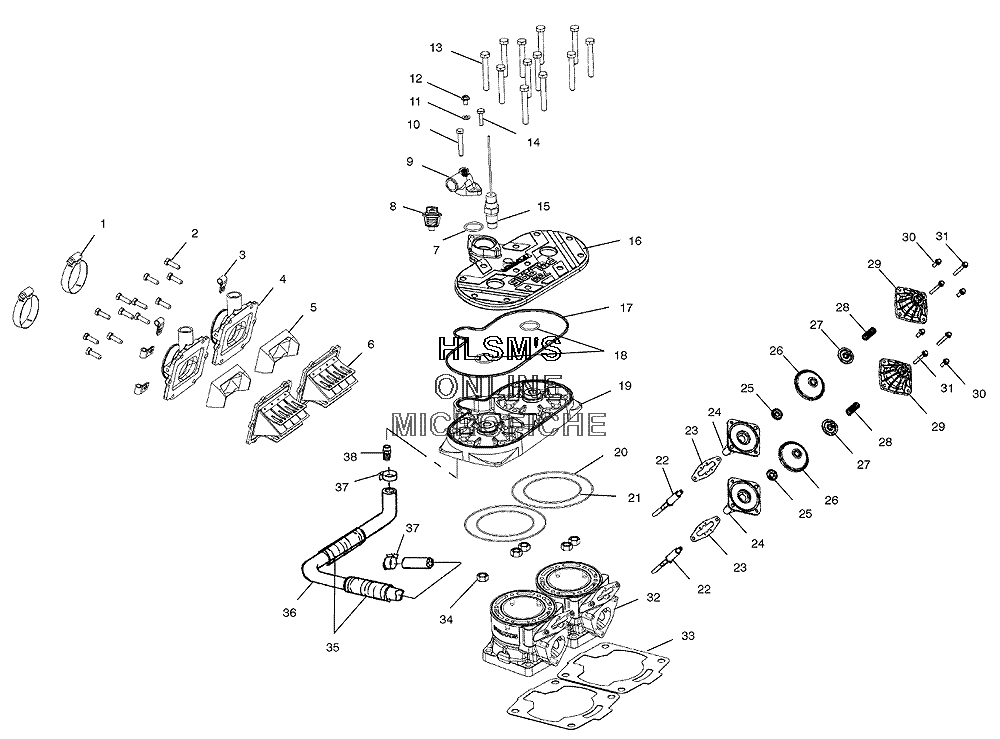

CYLINDER ASSEMBLY для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
27517398 SCREWSCREW
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253327 ADAPTER, CARBURETOR (40MM)ADAPTER, CARBURETOR (40MM)
-
55433151 STUFFER REED BLOCK NOKSTUFFER REED BLOCK NOK
-
61201825 VALVE, REED ASSY.VALVE, REED ASSY.
-
75411521 O-RING LIPSEALO-RING LIPSEAL
-
87052258 THERMOSTAT 120ШF W/O BYPASSTHERMOSTAT 120ШF W/O BYPASS
-
95630992 COVER, THERMOSTATCOVER, THERMOSTAT
-
107516822 SCREWSCREW
-
117555998 WASHER, FLATWASHER, FLAT
-
127517679 SCREW, SL/HEXAGON/FL-ZSCREW, SL/HEXAGON/FL-Z
-
137517534 SCREWSCREW
-
147516818 SCREWSCREW
-
154010398 SENSOR THERMISTER, ESX8477ASENSOR THERMISTER, ESX8477A
-
165631201-366 COVER, HEAD (PWD) (RED)COVER, HEAD (PWD) (RED)
-
175411294 SEAL, RUBBER HEADSEAL, RUBBER HEAD
-
185410917 O-RINGO-RING
-
193021210 HEAD, CYLINDER (81MM)HEAD, CYLINDER (81MM)
-
205410931 O-RINGO-RING
-
215410932 O-RINGO-RING
-
221202091 VALVE, GUILLOTINE GEN 3.5VALVE, GUILLOTINE GEN 3.5
-
235812350 GASKET BASE TO CYLINDER EXHAUST VALVEGASKET BASE TO CYLINDER EXHAUST VALVE
-
241202216 BASE EXHAUST VALVE DOM ASSY.BASE EXHAUST VALVE DOM ASSY.
-
255132950 WASHER BELLOWS, EXHAUST VALVE DOMWASHER BELLOWS, EXHAUST VALVE DOM
-
265412147 BELLOWS, EXHAUST MODIFIEDBELLOWS, EXHAUST MODIFIED
-
275631152 CAP/NUT BELLOWS EXHAUST VALVE DOMCAP/NUT BELLOWS EXHAUST VALVE DOM
-
287041786-07 SPRING COMP, GEN3.5EV (PURPLE/WHITE)SPRING COMP, GEN3.5EV (PURPLE/WHITE)
-
295434175 HOUSING, W/BUSHING ASSY.HOUSING, W/BUSHING ASSY.
-
307516820 SCREWSCREW
-
317517932 SCREW HEXAGON/FLANGE-YDSCREW HEXAGON/FLANGE-YD
-
323021203 CYLINDER (81MM)CYLINDER (81MM)
-
335811538 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
347547013 NUTNUT
-
355521398-96 CONDUIT, FLEX (.75"ID)CONDUIT, FLEX (.75"ID)
-
365411536 HOSE, BYPASSHOSE, BYPASS
-
377081030 CLAMP BYPASS NORMA #24-15CLAMP BYPASS NORMA #24-15
-
387052222 FITTING HOSE (1/2ID)FITTING HOSE (1/2ID)
