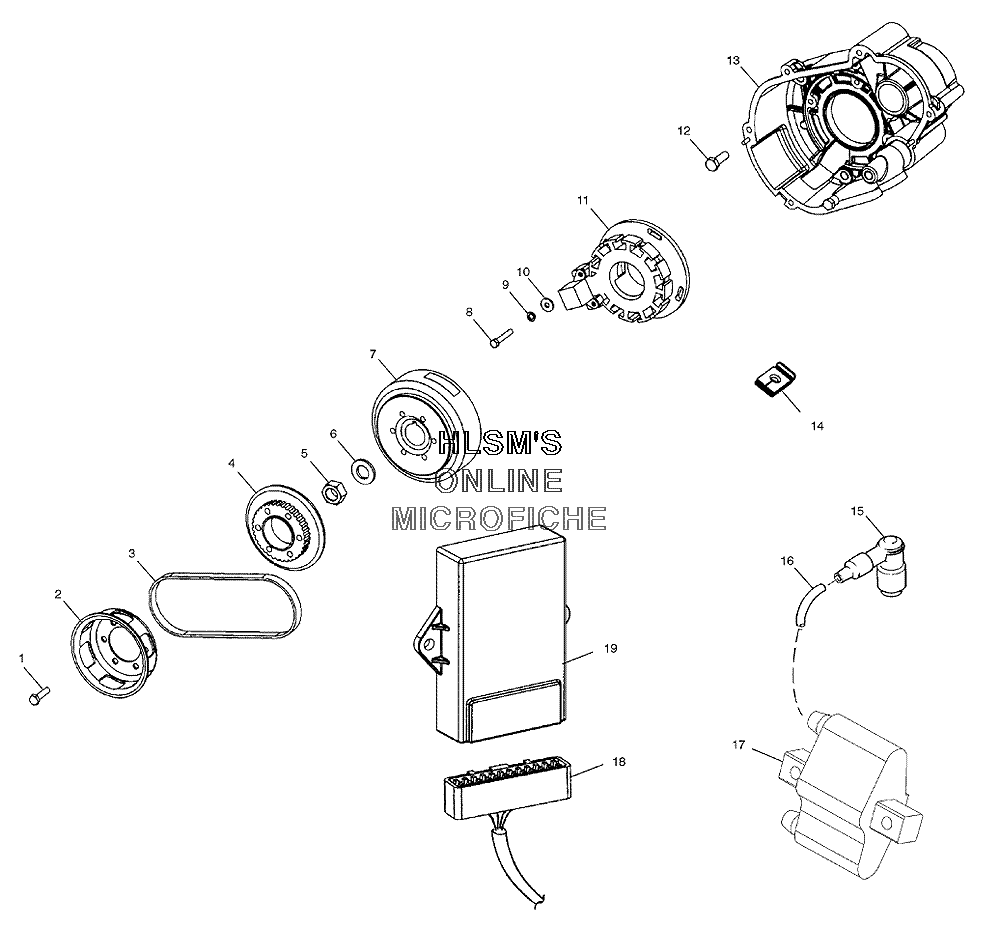

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17516823 SCREWSCREW
-
23021144 PULLEY, RECOILPULLEY, RECOIL
-
35411998 WATER PUMP, BELT KITWATER PUMP, BELT KIT
-
45630824 PULLEY, WATER PUMP DRIVEPULLEY, WATER PUMP DRIVE
-
57546909 NUTNUT
-
67555907 WASHERWASHER
-
74010629 FLYWHEEL IGNITION SNO KOK W/O GLUEFLYWHEEL IGNITION SNO KOK W/O GLUE
-
87517246 SCREWSCREW
-
97555969 WASHER, LOCKWASHER, LOCK
-
107555970 WASHER, FLATWASHER, FLAT
-
114010297 STATOR, IGNITIONSTATOR, IGNITION
-
127516734 SCREWSCREW
-
131202161 HOUSING IGNITION, ASSY.HOUSING IGNITION, ASSY.
-
145411178 GROMMET, STATOR WIRESGROMMET, STATOR WIRES
-
154020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
164010124-305 WIRE, IGNITION BULK (305CM.)WIRE, IGNITION BULK (305CM.)
-
174060229 COIL, IGNITION KOKCOIL, IGNITION KOK
-
184010279 HARNESS, IGNITION SNO KOKHARNESS, IGNITION SNO KOK
-
192201981 CDI, KIT S70-70-4010587 (INCL. 19, NYOGEL AND DECAL)CDI, KIT S70-70-4010587 (INCL. 19, NYOGEL AND DECAL)
-
197077026 DECAL, SPARK PLUG REC.DECAL, SPARK PLUG REC.
