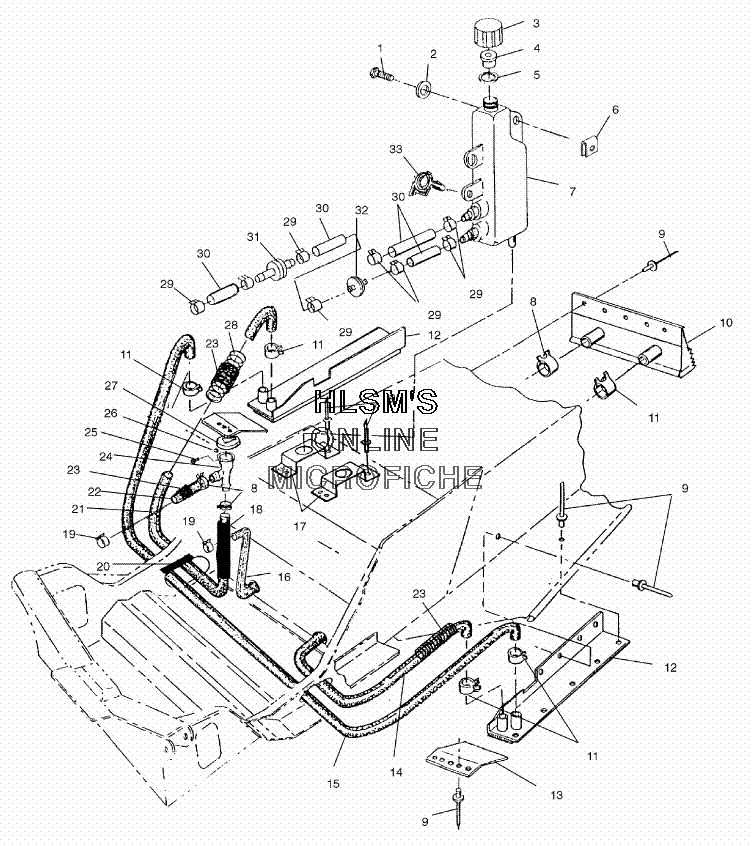

COOLING SYSTEM для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
17512276 BOLTBOLT
-
27558302 WASHER, WROUGHTWASHER, WROUGHT
-
35430743 CAP, OVERFLOWCAP, OVERFLOW
-
45431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
55810279 GASKETGASKET
-
67670096 NUTNUT
-
75431733 BOTTLE, OVERFLOW, W/FITTINGBOTTLE, OVERFLOW, W/FITTING
-
87080844 SPRINGBAND, CLAMP 35/12 (BLACK)SPRINGBAND, CLAMP 35/12 (BLACK)
-
97661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
102511225 EXCHANGER WELD (CENTER)EXCHANGER WELD (CENTER)
-
117080841 SPRINGBAND, CLAMP 27/12 (GREEN)SPRINGBAND, CLAMP 27/12 (GREEN)
-
121240020 COOLING WELD, SIDE (LEFT)COOLING WELD, SIDE (LEFT)
-
121240021 COOLING WELD, SIDE (RIGHT)COOLING WELD, SIDE (RIGHT)
-
135222863 GUARD, COOL.EXT.GUARD, COOL.EXT.
-
145411114 HOSE, SIDE/CENTER (LEFT)HOSE, SIDE/CENTER (LEFT)
-
155410557 HOSE, CROSSOVERHOSE, CROSSOVER
-
165410743 HOSE, PUMP/CENTER EXT.HOSE, PUMP/CENTER EXT.
-
175241334 BRACKET, OILTANK COINEDBRACKET, OILTANK COINED
-
185411396 TUBING, CONVOL (8"X1")TUBING, CONVOL (8"X1")
-
197080842 SPRINGBAND, CLAMP 29/12 (BLACK)SPRINGBAND, CLAMP 29/12 (BLACK)
-
208360012 TRIM, EDGE (6FT) (BLACK)TRIM, EDGE (6FT) (BLACK)
-
215411011 HOSE, FILLER OUTER EXTRUSION (RIGHT)HOSE, FILLER OUTER EXTRUSION (RIGHT)
-
225411010 HOSE, ENGINE OUTER/FILLERHOSE, ENGINE OUTER/FILLER
-
235521242 TUBING, CONVOL (1"X2.5")TUBING, CONVOL (1"X2.5")
-
245433364 FILLER, REMOTE COOLANTFILLER, REMOTE COOLANT
-
257517298 SCREWSCREW
-
267542122 NUT, NYLOKNUT, NYLOK
-
272511256 CAP, PRESS. (19, 21 LB.)CAP, PRESS. (19, 21 LB.)
-
287041079 SPRING, HOSE RETAINERSPRING, HOSE RETAINER
-
297080307 CLAMP, HOSECLAMP, HOSE
-
308450003-1525 FUEL LINE (1/4 ID, 1525 CM.)FUEL LINE (1/4 ID, 1525 CM.)
-
317052038 VALVE, CHECKVALVE, CHECK
-
322530024 FILTER, COOLANT (LARGE)FILTER, COOLANT (LARGE)
-
334020139 CLIP, PLASTICCLIP, PLASTIC
