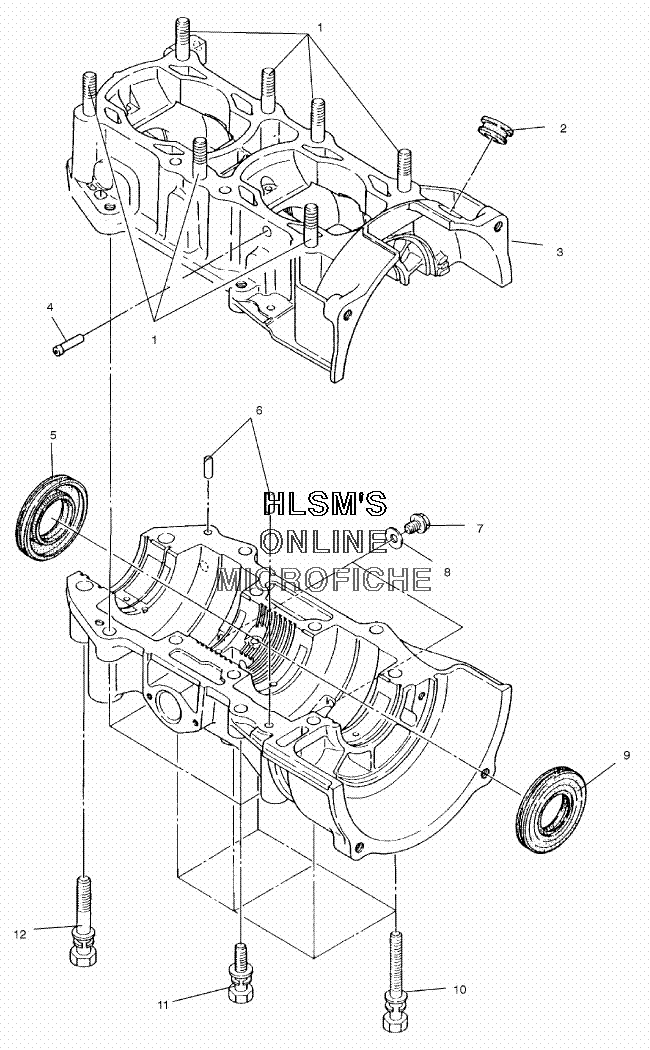

CRANKCASE ASSEMBLY для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
13084119 STUDSTUD
-
23082875 GROMMETGROMMET
-
33086832 CRANKCASE, ASSY. (INCL. 1, 4, 6, 10, 12)CRANKCASE, ASSY. (INCL. 1, 4, 6, 10, 12)
-
43083798 PIPE, PULSEPIPE, PULSE
-
53085200 SEAL, OIL (PTO SIDE)SEAL, OIL (PTO SIDE)
-
63080103 PIN, DOWELPIN, DOWEL
-
73083568 BOLT, FLANGEBOLT, FLANGE
-
83082758 WASHER, FLATWASHER, FLAT
-
93086833 SEAL, OIL (MAG SIDE)SEAL, OIL (MAG SIDE)
-
103080739 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
113083078 BOLT AND WASHERBOLT AND WASHER
-
123084220 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
