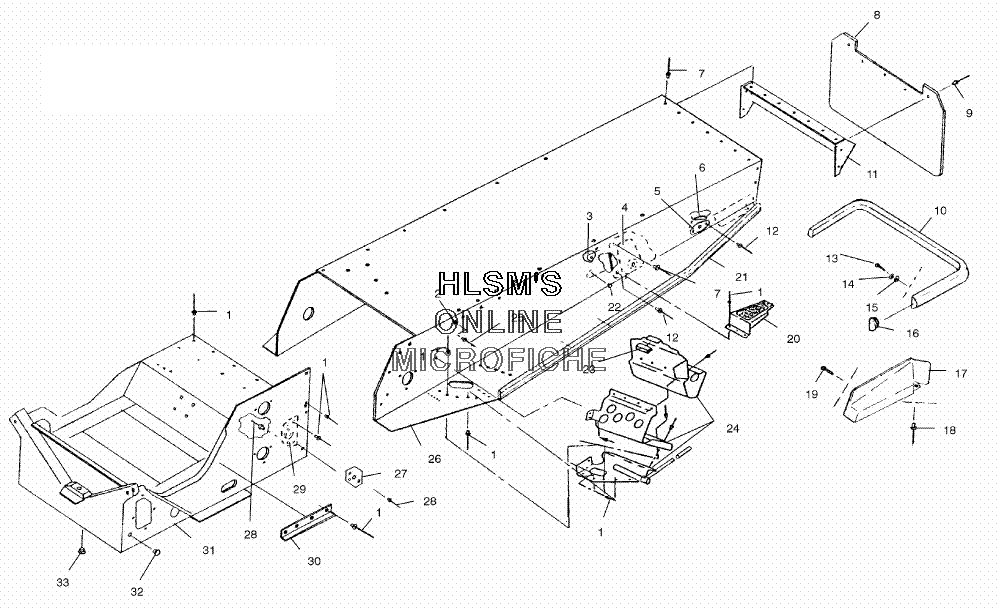

TUNNEL ASSEMBLY для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOC, ZRIVET, INTERLOC, Z
-
27080227 SNAP, MALESNAP, MALE
-
35241485 BRACE, TUNNEL (LEFT) (LOWER)BRACE, TUNNEL (LEFT) (LOWER)
-
35241486 BRACE, TUNNEL (RIGHT) (LOWER)BRACE, TUNNEL (RIGHT) (LOWER)
-
41012439-067 PAD, SUSPENSION (X12) (BLACK) (LEFT) (REAR)PAD, SUSPENSION (X12) (BLACK) (LEFT) (REAR)
-
41012440-067 PAD, SUSPENSION (X12) (BLACK) (RIGHT) (REAR)PAD, SUSPENSION (X12) (BLACK) (RIGHT) (REAR)
-
55211660-067 PLATE, TUNNEL SUPPORTPLATE, TUNNEL SUPPORT
-
65211590-067 BRACKET, U-TENSIONER (BLACK)BRACKET, U-TENSIONER (BLACK)
-
77661836 RIVETRIVET
-
85432149-1106 FLAP, SNOW (13.74") (BLACK W/CHROME)FLAP, SNOW (13.74") (BLACK W/CHROME)
-
97621418 POP RIVETPOP RIVET
-
102670168-309 BUMPER, NATURAL ASSY. (REAR)BUMPER, NATURAL ASSY. (REAR)
-
115240968 PANEL, CLOSE-OFFPANEL, CLOSE-OFF
-
127661846 RIVETRIVET
-
137515159 SCREWSCREW
-
147552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
157558301 WASHER, FLATWASHER, FLAT
-
165431995-070 CAP, BUMPERCAP, BUMPER
-
175432131-070 SKIRT, SNO.TRNG (LEFT)SKIRT, SNO.TRNG (LEFT)
-
175432132-070 SKIRT, SNO.TRNG (RIGHT)SKIRT, SNO.TRNG (RIGHT)
-
187621467 RIVET, BLINDRIVET, BLIND
-
197512091 SCREWSCREW
-
201012633 FOOTREST, W/GRIP PAD (LEFT)FOOTREST, W/GRIP PAD (LEFT)
-
201012634 FOOTREST, W/GRIP PAD (RIGHT)FOOTREST, W/GRIP PAD (RIGHT)
-
205830114 PAD, FOOTREST GRIPPAD, FOOTREST GRIP
-
215242206 EDGE, TUNNEL (LEFT)EDGE, TUNNEL (LEFT)
-
215242207 EDGE, TUNNEL (RIGHT)EDGE, TUNNEL (RIGHT)
-
227661837 RIVETRIVET
-
235521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
241013531 FOOTREST, ASSY.FOOTREST, ASSY.
-
241013582 FOOTREST, ASSY. (RIGHT)FOOTREST, ASSY. (RIGHT)
-
257621222 RIVETRIVET
-
261013546 TUNNEL, ASSY. LIQ NATURAL (INCL. HEAT EXCHANGERS)TUNNEL, ASSY. LIQ NATURAL (INCL. HEAT EXCHANGERS)
-
275211746-067 PLATE, SUSPENSION (OUTER) (BLACK) (FRONT)PLATE, SUSPENSION (OUTER) (BLACK) (FRONT)
-
287661130 RIVET (3/16, .214, .420)RIVET (3/16, .214, .420)
-
291012269-067 MOUNT, SUSPENSION (BLACK) (LEFT) (FRONT)MOUNT, SUSPENSION (BLACK) (LEFT) (FRONT)
-
291012270-067 MOUNT, SUSPENSION (BLACK) (RIGHT) (FRONT)MOUNT, SUSPENSION (BLACK) (RIGHT) (FRONT)
-
305222857 GUARD, ADAPTER GUIDEGUARD, ADAPTER GUIDE
-
311012888 WELD ASSY. BULKHEAD (STANDARD)WELD ASSY. BULKHEAD (STANDARD)
-
327080416 PLUG, HOLEPLUG, HOLE
-
337080398 PLUG, HOLEPLUG, HOLE
