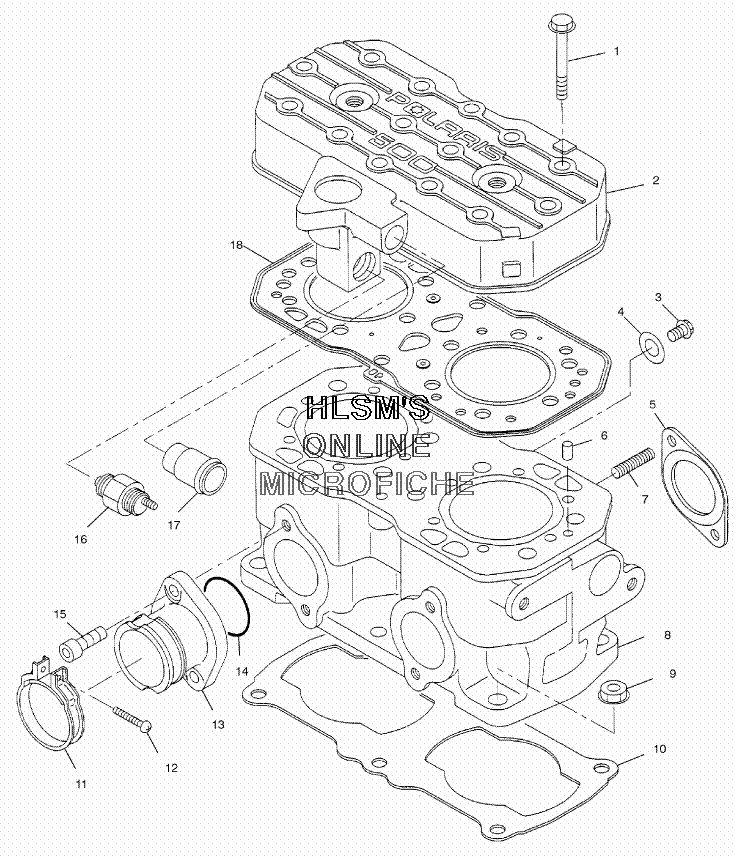

CYLINDER ASSEMBLY для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
13085582 BOLT, FLANGEBOLT, FLANGE
-
23085584 HEAD, CYLINDER (INCL. 17)HEAD, CYLINDER (INCL. 17)
-
33084491 PLUGPLUG
-
43084492 GASKET, ALUMINUMGASKET, ALUMINUM
-
53086995 GASKET, EXHAUSTGASKET, EXHAUST
-
63080103 PIN, DOWELPIN, DOWEL
-
73085326 STUD,STUD,
-
83086993 CYLINDER [INCL. 7]CYLINDER [INCL. 7]
-
93082911 NUT, FLANGENUT, FLANGE
-
103084768 GASKET, BASEGASKET, BASE
-
113083166 ADAPTER BAND, ASSY. (INCL. 12)ADAPTER BAND, ASSY. (INCL. 12)
-
123081497 SCREW AND WASHER, ASSY.SCREW AND WASHER, ASSY.
-
133086994 ADAPTER (INCL. 14)ADAPTER (INCL. 14)
-
143086996 O-RINGO-RING
-
153081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
163083055 SWITCH, THERMAL (93 DEGREE C)SWITCH, THERMAL (93 DEGREE C)
-
173083452 PIPE, WATERPIPE, WATER
-
183085585 GASKET 2, HEADGASKET 2, HEAD
