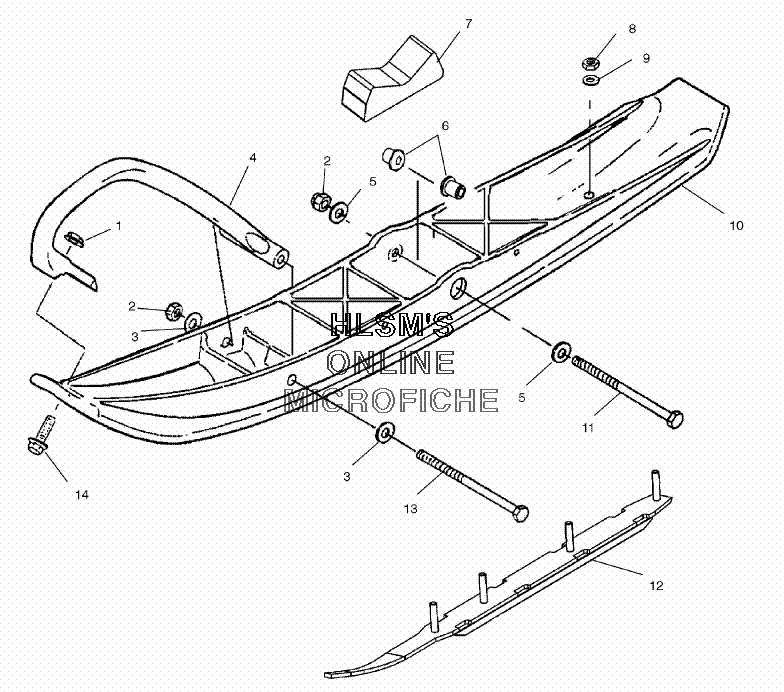

SKI ASSEMBLY для Polaris 500 CLASSIC TOURING (S03ST4BS) - 2003 года выпуска
-
№АртикулНазвание
-
17542321 NUT FLANGENUT FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
57556130 WASHERWASHER
-
65132637 BUSHING, PLASTIC (.390 ID)BUSHING, PLASTIC (.390 ID)
-
75412018 STOP, SKI, RUBBERSTOP, SKI, RUBBER
-
87542324 NUT, NYLOKNUT, NYLOK
-
97556175 WASHERWASHER
-
105433873-070 COMP, SKI BLANK SERVICE ASSY. (BLACK)COMP, SKI BLANK SERVICE ASSY. (BLACK)
-
117517968 SCREWSCREW
-
121821215 WELD, SKAP DUAL CBD (BLACK)WELD, SKAP DUAL CBD (BLACK)
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
