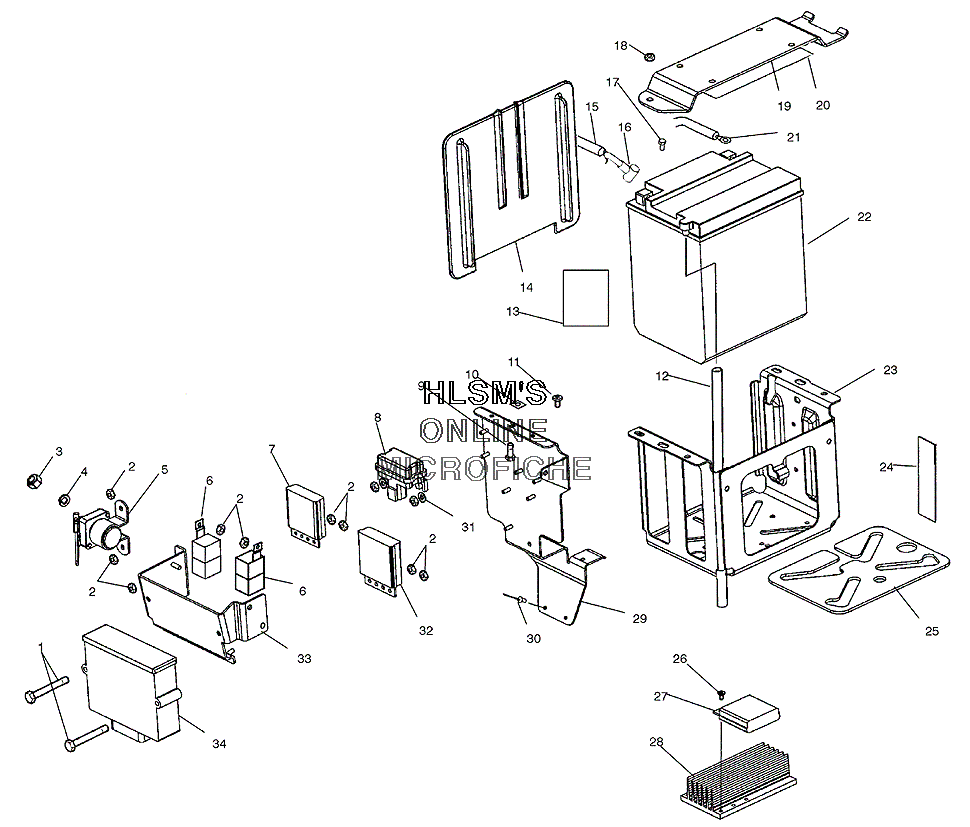

BATTERY BOX для Polaris FRONTIER CLASSIC BUILT AFTER 1/1/02 (S03ND7DS) - 2003 года выпуска
-
№АртикулНазвание
-
17517263 SCREW, HEXAGON SEMSSCREW, HEXAGON SEMS
-
27541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
37546701 NUTNUT
-
47552616 WASHER, LOCKWASHER, LOCK
-
53086236 STARTER, SOLENOID SERVICESTARTER, SOLENOID SERVICE
-
64010725 RELAY SPEEDOMETER, SEALEDRELAY SPEEDOMETER, SEALED
-
74010722 SWITCH, ALTERNATOR CONTROLSWITCH, ALTERNATOR CONTROL
-
84010637 SWITCH ROLL OVERSWITCH ROLL OVER
-
97512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
107670021 NUT, SPEEDNUT, SPEED
-
117512084 SCREWSCREW
-
125432077 TUBE, VENTTUBE, VENT
-
135812419 FOAM BATTERY BOX SPACERFOAM BATTERY BOX SPACER
-
145434659 BATTERY RETAINERBATTERY RETAINER
-
154010091 CABLE, BATTERY SOLENOIDCABLE, BATTERY SOLENOID
-
165410346 INSULATED CABLE SOLENOIDINSULATED CABLE SOLENOID
-
172202099 BATTERY BOLT KIT 30AHBATTERY BOLT KIT 30AH
-
187542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
195245525 COVER BATTERY BOXCOVER BATTERY BOX
-
205810290 PAD, BATTERYPAD, BATTERY
-
214010057 CABLE STARTER 14 IN.CABLE STARTER 14 IN.
-
224010630 BATTERY 30 AMP TOP MOUNTBATTERY 30 AMP TOP MOUNT
-
231013932-067 WELD BATTERY BOX (BLACK)WELD BATTERY BOX (BLACK)
-
245811651 PAD, BATTERY SIDEPAD, BATTERY SIDE
-
255811623 PAD, BATTERYPAD, BATTERY
-
267512018 SCREWSCREW
-
274010538 RECTIFIER REGULATOR, 3-PHASE, LRRECTIFIER REGULATOR, 3-PHASE, LR
-
285133411 HEAT SINK REGULATOR, MACHHEAT SINK REGULATOR, MACH
-
291014133 BRACKET BATTERY BOX W/STUDS ASSYBRACKET BATTERY BOX W/STUDS ASSY
-
307621432 RIVETRIVET
-
317555746 WASHERWASHER
-
324010823 MODULE, LOAD SHEDMODULE, LOAD SHED
-
331014134 BRACKET ECU W/STUDS ASSYBRACKET ECU W/STUDS ASSY
-
344010888 ECU-CALIBRATIONECU-CALIBRATION
