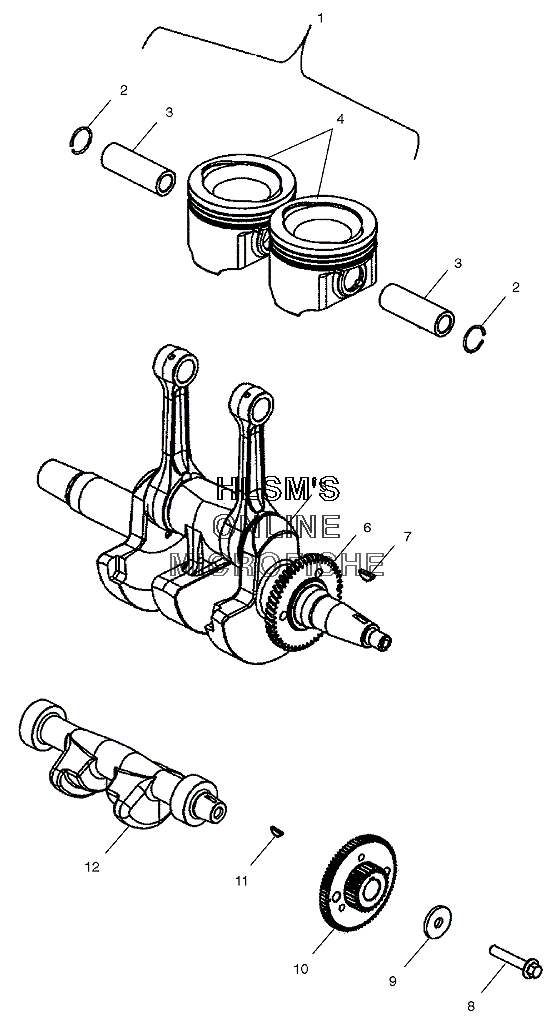

PISTON AND CRANKSHAFT для Polaris FRONTIER CLASSIC BUILT AFTER 1/1/02 (S03ND7DS) - 2003 года выпуска
-
№АртикулНазвание
-
12202445 PISTON, KIT (INCL. 2, 3, 4)PISTON, KIT (INCL. 2, 3, 4)
-
23021264 CIRCLIP PISTON (80MM)CIRCLIP PISTON (80MM)
-
33021263 PIN PISTON (80MM)PIN PISTON (80MM)
-
42202136 PISTON RINGS KITPISTON RINGS KIT
-
52202443 CRANKSHAFT, KIT (INCL. 6, SEE CRANKCASE PG. C9, REF. 2, 3, 4, 19)CRANKSHAFT, KIT (INCL. 6, SEE CRANKCASE PG. C9, REF. 2, 3, 4, 19)
-
65133220 GEARGEAR
-
77721117 KEY, WOODRUFFKEY, WOODRUFF
-
87517865 SCREW, HEXAGON FLANGE-DSCREW, HEXAGON FLANGE-D
-
97555982 WASHER, RETAININGWASHER, RETAINING
-
117721131 KEY WOOD RUFF, #404KEY WOOD RUFF, #404
-
125132485 SHAFT BALANCESHAFT BALANCE
