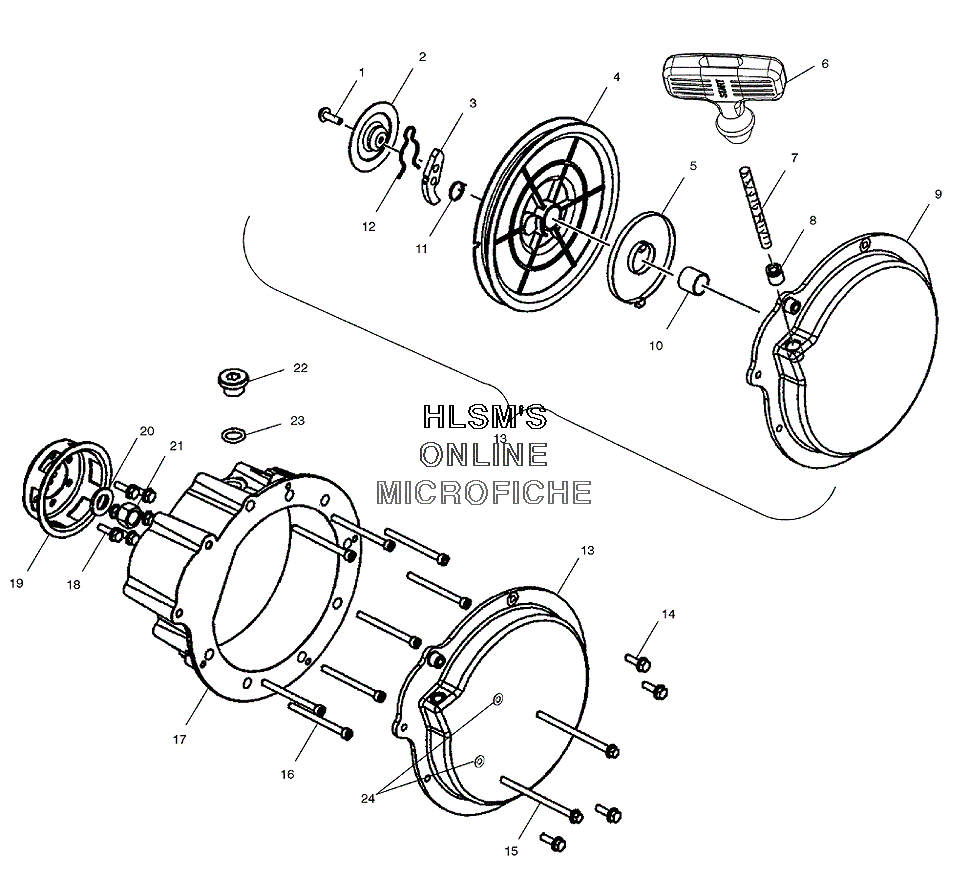

STARTER - RECOIL ASSEMBLY для Polaris FRONTIER CLASSIC BUILT AFTER 1/1/02 (S03ND7DS) - 2003 года выпуска
-
№АртикулНазвание
-
17517984 SCREWSCREW
-
23084744 PLATE, FRICTIONPLATE, FRICTION
-
33083378 RATCHETRATCHET
-
45434358 REEL RECOILREEL RECOIL
-
53083185 SPRING, SPIRALSPRING, SPIRAL
-
65412250 HANDLE RECOILHANDLE RECOIL
-
72870621 ROPE, NYL.STARTER (100FT)ROPE, NYL.STARTER (100FT)
-
83040171 GUIDE, ROPEGUIDE, ROPE
-
95631221 HOUSING RECOIL (UPPER)HOUSING RECOIL (UPPER)
-
103084750 BUSHINGBUSHING
-
113083463 SPRING, RETURNSPRING, RETURN
-
123083379 SPRING, FRICTIONSPRING, FRICTION
-
131202271 RECOIL HOUSING, ASSYRECOIL HOUSING, ASSY
-
147516822 SCREWSCREW
-
157517306 SCREWSCREW
-
167517807 SCREW SOCKET/CAP Y/DSCREW SOCKET/CAP Y/D
-
171202379 HOUSING , ASSYRECOIL (LOWER)HOUSING , ASSYRECOIL (LOWER)
-
187516822 SCREWSCREW
-
193040161 PULLEY, STARTINGPULLEY, STARTING
-
207555907 WASHERWASHER
-
217546909 NUTNUT
-
225433820 PLUG, HOLE TIMING 3/4-16 NYLONPLUG, HOLE TIMING 3/4-16 NYLON
-
235411564 O-RINGO-RING
-
247555998 WASHER, FLATWASHER, FLAT
