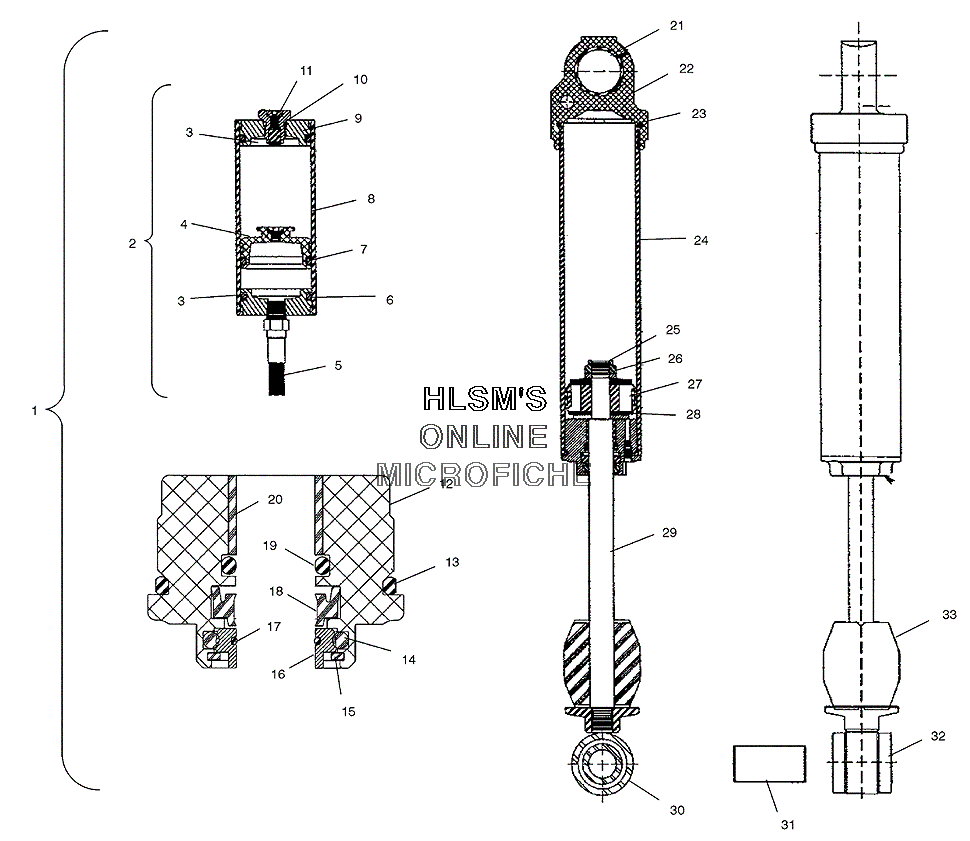

SUSPENSION - REAR SHOCK TRACK для Polaris FRONTIER CLASSIC BUILT AFTER 1/1/02 (S03ND7DS) - 2003 года выпуска
-
№АртикулНазвание
-
17042216 SHOCK REAR TRACK, REZY-M-10 (INCL. ALL)SHOCK REAR TRACK, REZY-M-10 (INCL. ALL)
-
21500449 RESERVIOR, ASSY NON ADJUST (INCL. 3-11)RESERVIOR, ASSY NON ADJUST (INCL. 3-11)
-
31500450 SEAL O-RINGSEAL O-RING
-
41500187 PISTON FLOATINGPISTON FLOATING
-
51500445 HOSE 14.00 TLGHOSE 14.00 TLG
-
61500163 ENDCAP RESERVOIR ASSYENDCAP RESERVOIR ASSY
-
71500003 O-RING ENDCAPO-RING ENDCAP
-
81500451 BODY ASSYBODY ASSY
-
91500160 RESERVOIR, ENDCAP ASSY .RESERVOIR, ENDCAP ASSY .
-
101500023 O-RING (OUTER)O-RING (OUTER)
-
111500014 VALVE ASSY AIRVALVE ASSY AIR
-
121500545 DAMPENER, ASSY (INCL. 13-20)DAMPENER, ASSY (INCL. 13-20)
-
131500020 O-RING (.103W-1.299ID)O-RING (.103W-1.299ID)
-
141500483 O-RING (.103X.73ID)O-RING (.103X.73ID)
-
151500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
161500485 SCRAPER FIST, BRONZESCRAPER FIST, BRONZE
-
171500484 O-RINGO-RING
-
181500266 U-CUP 4300 URETH, 036-01-006U-CUP 4300 URETH, 036-01-006
-
191500021 O-RING (INNER)O-RING (INNER)
-
201500488 BEARINGBEARING
-
211500444 BEARING RBC 003-10-000BEARING RBC 003-10-000
-
221500448 BODY CAP ASSYBODY CAP ASSY
-
231500108 O-RING (.103W-1.549ID)O-RING (.103W-1.549ID)
-
241500446 BODYBODY
-
251500016 NUT, LOCKNUT, LOCK
-
261500015 PLATE, BACKUPPLATE, BACKUP
-
271500002 BEARING, PISTONBEARING, PISTON
-
281500017 PLATE, TOP OUTPLATE, TOP OUT
-
291500447 SHAFTSHAFT
-
301500164 EYELET, BASEEYELET, BASE
-
311500310 SLEEVESLEEVE
-
321500309 BUSHINGBUSHING
-
335410855 BUMPER, JOUNCEBUMPER, JOUNCE
