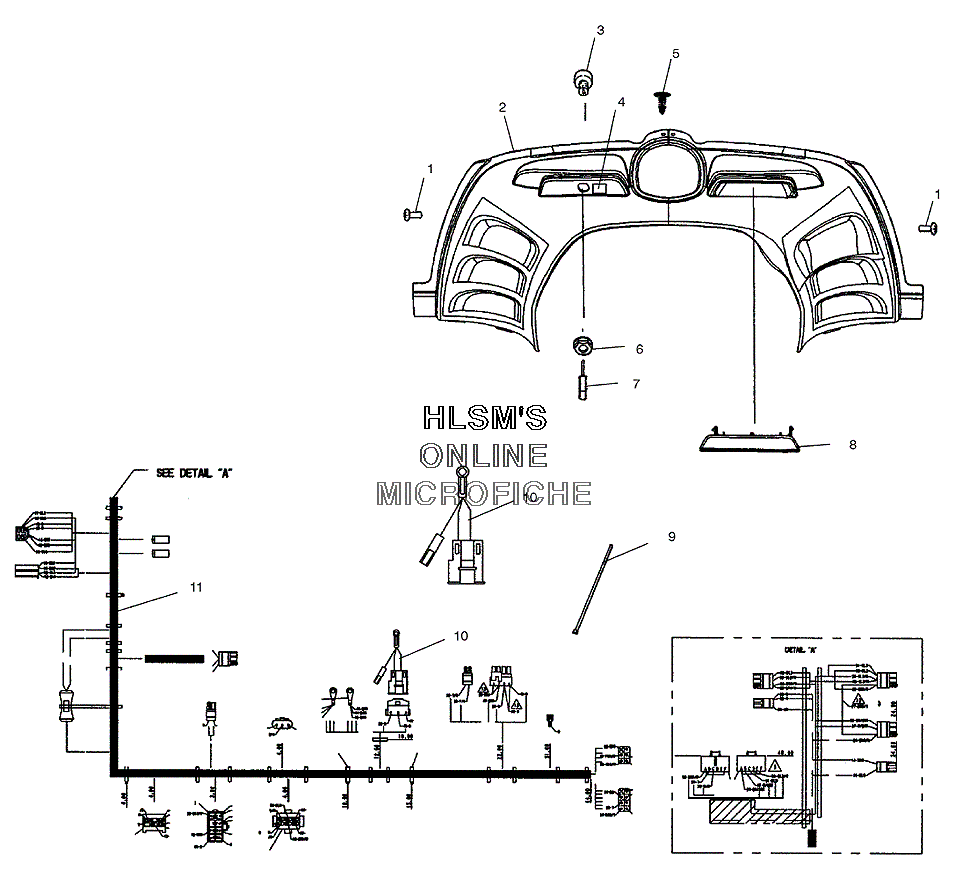

CONSOLE для Polaris FRONTIER CLASSIC BUILT AFTER 1/1/02 (S03ND7DS) - 2003 года выпуска
-
№АртикулНазвание
-
17515199 SCREWSCREW
-
22632649 CONSOLE W/FOIL, ASSYCONSOLE W/FOIL, ASSY
-
25812401 FOIL CONSOLE SIDEFOIL CONSOLE SIDE
-
25812402 FOIL CONSOLE LOUVERFOIL CONSOLE LOUVER
-
32200358 IGNITION SWITCH KITIGNITION SWITCH KIT
-
47170039 DECAL IGNITIONDECAL IGNITION
-
57670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
67547035 NUT, IGNITIONNUT, IGNITION
-
75410611 N/A, USE COMPONENTS NOTE:N/A, USE COMPONENTS NOTE:
-
85434438 PLUG RECOILPLUG RECOIL
-
97080138 CABLE TIECABLE TIE
-
102461076 HARNESS FUSIBLE LINKHARNESS FUSIBLE LINK
-
104010725 RELAY SPEEDOMETER, SEALEDRELAY SPEEDOMETER, SEALED
-
112461161 HARNESS MAIN COMMON, 4-STROKEHARNESS MAIN COMMON, 4-STROKE
