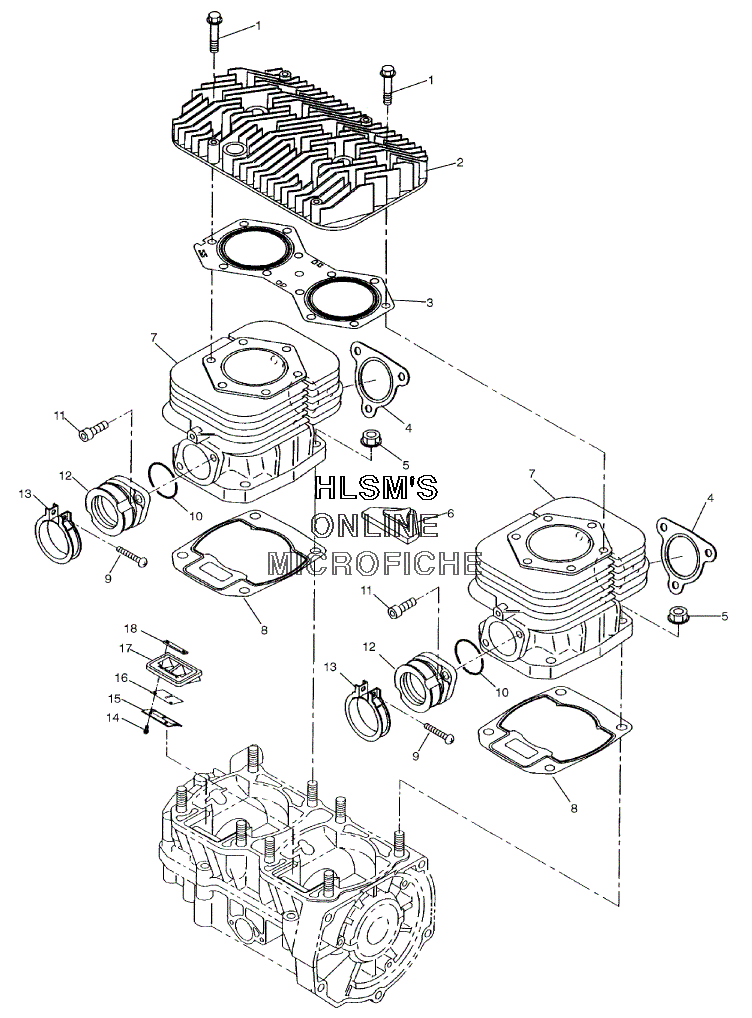

CYLINDER ASSEMBLY для Polaris SUPERSPORT EDGE X F/O (S03NA5BS) - 2003 года выпуска
-
№АртикулНазвание
-
13084271 BOLT, FLANGEBOLT, FLANGE
-
23085703 HEAD, CYLINDER (IF BUILT BEFORE 8/13/02)HEAD, CYLINDER (IF BUILT BEFORE 8/13/02)
-
23088215 HEAD CYLINDER (IF BUILT AFTER 8/13/02)HEAD CYLINDER (IF BUILT AFTER 8/13/02)
-
33085704 GASKET, HEADGASKET, HEAD
-
43085714 GASKET, EXHAUSTGASKET, EXHAUST
-
53082911 NUT FLANGENUT FLANGE
-
63085692 COVER, CYLINDER BAFFLECOVER, CYLINDER BAFFLE
-
73085936 CYLINDER, UNIT (IF BUILT BEFORE 8/13/02)CYLINDER, UNIT (IF BUILT BEFORE 8/13/02)
-
73088214 CYLINDER UNIT (IF BUILT AFTER 8/13/02)CYLINDER UNIT (IF BUILT AFTER 8/13/02)
-
83085666 GASKET, CYLINDERGASKET, CYLINDER
-
93081497 SCREW, PAN HEADSCREW, PAN HEAD
-
103085619 O-RINGO-RING
-
113081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
123085670 ADAPTER, ASSY (INCL. 10)ADAPTER, ASSY (INCL. 10)
-
133083166 ADAPTER BAND, ASSY (INCL. 9)ADAPTER BAND, ASSY (INCL. 9)
-
143085717 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
153086387 STOPPERSTOPPER
-
163085715 VALVE, REEDVALVE, REED
-
173086386 VALVE, REED ASSYVALVE, REED ASSY
-
183086388 PLATEPLATE
