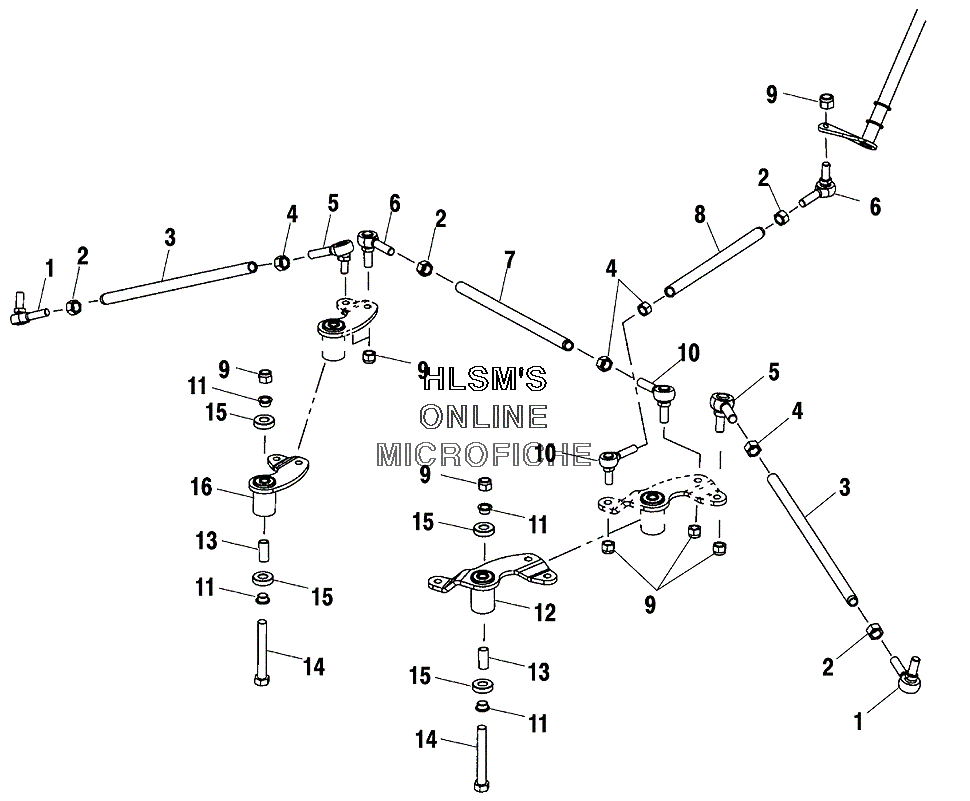

STEERING ASSEMBLY для Polaris SUPERSPORT EDGE X F/O (S03NA5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17061057 ROD END (RIGHT)ROD END (RIGHT)
-
27542401 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
35333949 ROD TIEROD TIE
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061055 ROD END 750 STUD (LEFT)ROD END 750 STUD (LEFT)
-
67061076 ROD END HI-ANGLE, PR (RIGHT)ROD END HI-ANGLE, PR (RIGHT)
-
75333772 ROD, STEERING RACK, 11.50ROD, STEERING RACK, 11.50
-
85333773-067 ROD, DRAGLINK 12.50 STEELROD, DRAGLINK 12.50 STEEL
-
97542439 NUT, NYLOKNUT, NYLOK
-
107061075 ROD END HI-ANGLE, PR (LEFT)ROD END HI-ANGLE, PR (LEFT)
-
115132106 BUSHING REDUCER (12MM TO .385)BUSHING REDUCER (12MM TO .385)
-
121820957 PITMAN ARM, ASSY (INCL. 11, 13, 15)PITMAN ARM, ASSY (INCL. 11, 13, 15)
-
135133423 SPACER TUBE PITMANATURAL/IDLER ARMSSPACER TUBE PITMANATURAL/IDLER ARMS
-
147512435 SCREWSCREW
-
153514320 BEARING BALL, 600ILLUBEARING BALL, 600ILLU
-
161820959 IDLER ARM, ASSY (INCL. 11, 13, 15)IDLER ARM, ASSY (INCL. 11, 13, 15)
