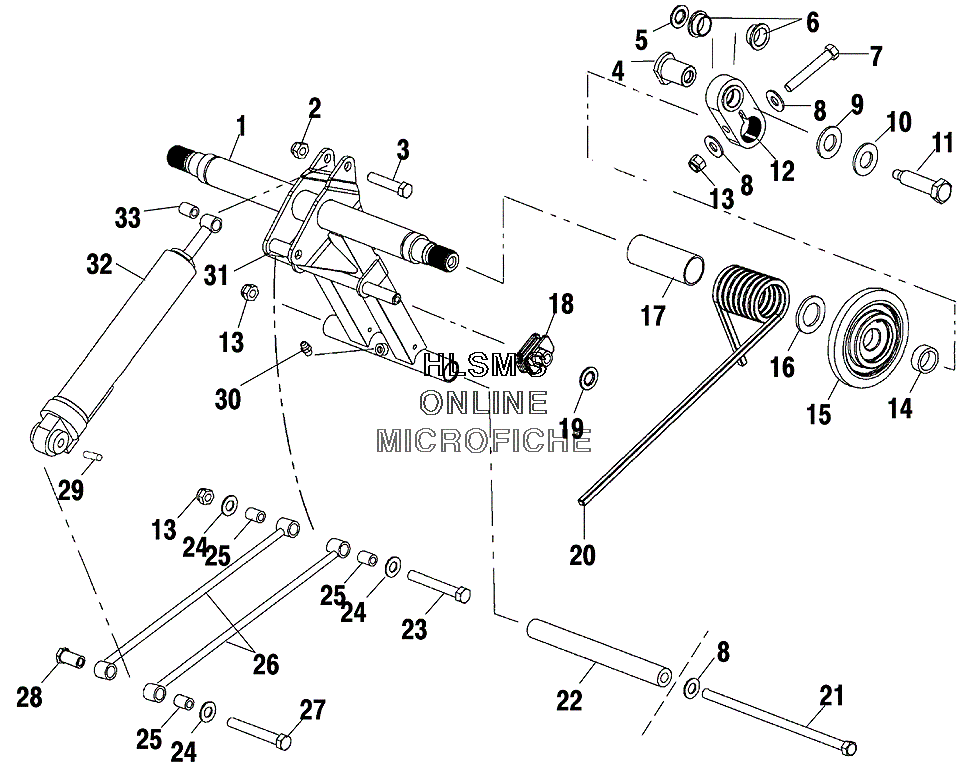

SUSPENSION - REAR TORQUE ARM ASSEMBLY (EDGE) для Polaris SUPERSPORT EDGE X F/O (S03NA5BS) - 2003 года выпуска
-
№АртикулНазвание
-
11541561-312 WELD REAR TORQUE ARM (INDY BLUE)WELD REAR TORQUE ARM (INDY BLUE)
-
27542411 NUT, FLEXLOCNUT, FLEXLOC
-
37512410 BOLTBOLT
-
45333758 SHAFT ARMSHAFT ARM
-
57555945 WASHER, THRUSTWASHER, THRUST
-
63514331 BUSHINGBUSHING
-
77515415 SCREWSCREW
-
87555806 WASHER, FLATWASHER, FLAT
-
97555893 WASHER, FLATWASHER, FLAT
-
107552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
117517435 SCREWSCREW
-
121541461 ARM, ASSY RTA (INCL. 6)ARM, ASSY RTA (INCL. 6)
-
137542439 NUT, NYLOKNUT, NYLOK
-
145132388 SPACER WHEELSPACER WHEEL
-
151590343 CARRIER WHEEL, ASSYCARRIER WHEEL, ASSY
-
167555787 WASHERWASHER
-
175431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
185432983 ROLLER, SPRING ADJUST SQUAREROLLER, SPRING ADJUST SQUARE
-
197080394 CLIP, PUSH ONCLIP, PUSH ON
-
207041942-067 SPRING TORSION (LEFT/BLACK) (OPT) (.375/77)SPRING TORSION (LEFT/BLACK) (OPT) (.375/77)
-
207041943-067 SPRING TORSION (RIGHT/BLACK) (OPT) (.375/77)SPRING TORSION (RIGHT/BLACK) (OPT) (.375/77)
-
207041629-067 SPRING, TORSION (LEFT/BLACK) (STD) (.359/77)SPRING, TORSION (LEFT/BLACK) (STD) (.359/77)
-
207041630-067 SPRING, TORSION (RIGHT/BLACK) (STD) (.359/77)SPRING, TORSION (RIGHT/BLACK) (STD) (.359/77)
-
207041940-067 SPRING TORSION (BLACK/LEFT) (OPT) (.405/77)SPRING TORSION (BLACK/LEFT) (OPT) (.405/77)
-
207041941-067 SPRING TORSION (BLACK/RIGHT) (OPT) (.405/77)SPRING TORSION (BLACK/RIGHT) (OPT) (.405/77)
-
217517232 SCREWSCREW
-
225333873 SHAFTSHAFT
-
237515514 BOLTBOLT
-
247555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
255132391 BUSHINGBUSHING
-
261541479-067 ROD, SHOCK (BLACK)ROD, SHOCK (BLACK)
-
277517851 SCREW HEXAGON P-80-GR8YSCREW HEXAGON P-80-GR8Y
-
285132390 BUSHING, NUTBUSHING, NUT
-
295333907 SLEEVESLEEVE
-
307080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
315333904 SPACERSPACER
-
327042129 SHOCK R/T, ALUM PPSSHOCK R/T, ALUM PPS
-
327042093 SHOCK, REAR TRACK REMOTERSSHOCK, REAR TRACK REMOTERS
-
335010422 BUSHINGBUSHING
